Detailed Specifications

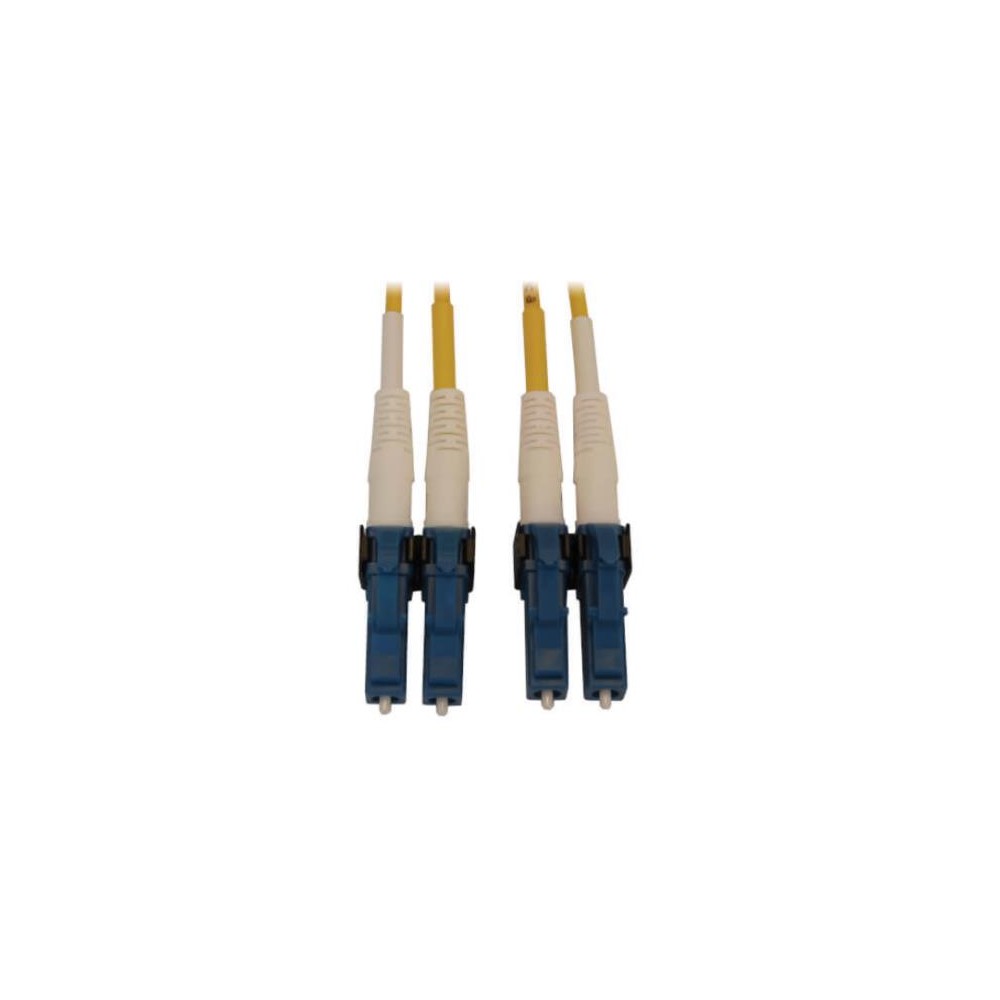

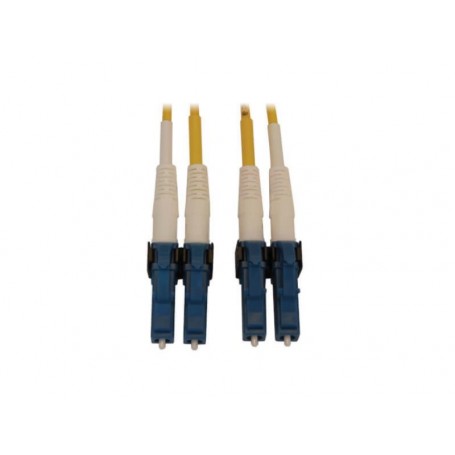

Eaton N370X-02M 400G Duplex Singlemode Fiber Optic Cable Compatible Tripp Lite
Overview :
The Eaton N370X-02M is a Tripp Lite 400G duplex singlemode fiber optic cable designed for high-density data networking and fiber connections. It uses 9/125 µm OS2 singlemode fiber with LC-to-LC duplex connectors and a yellow LSZH jacket for easy identification in network environments.
The 2 m cable supports high-bandwidth networking applications including 40Gbps, 100Gbps and 400Gbps environments. Its UPC-polished LC connectors provide low insertion loss, while the OFNR-rated LSZH construction is suitable for structured cabling installations in data centers, server rooms and enterprise networks.
Key Features :
- 2 m (6.6 ft.) cable length
- Duplex singlemode 9/125 µm OS2 fiber
- LC duplex to LC duplex connectors
- UPC connector polish
- Supports up to 400Gbps applications
- Yellow LSZH jacket with OFNR rating
- Low insertion loss of ≤0.30 dB
- 2-fiber construction
Specifications :
| Specification | Details |
|---|
| Manufacturer | Eaton |
| Compatible Brand | Tripp Lite |
| Part Number | N370X-02M |
| Product Type | Fiber Optic Cable |
| Fiber Type | Singlemode OS2 |
| Fiber Size | 9/125 µm |
| Connector 1 | LC Duplex |
| Connector 2 | LC Duplex |
| Cable Length | 2 m / 6.6 ft. |
| Number of Fibers | 2 |
| Endface Polish | UPC |
| Cable Jacket | LSZH |
| Jacket Rating | OFNR |
| Cable Color | Yellow |
| Connector Color | Blue |
| Insertion Loss | ≤0.30 dB |
| Minimum Bend Radius | 10 mm static / 20 mm dynamic |
| Operating Temperature | -20°C to 60°C |
