Detailed Specifications

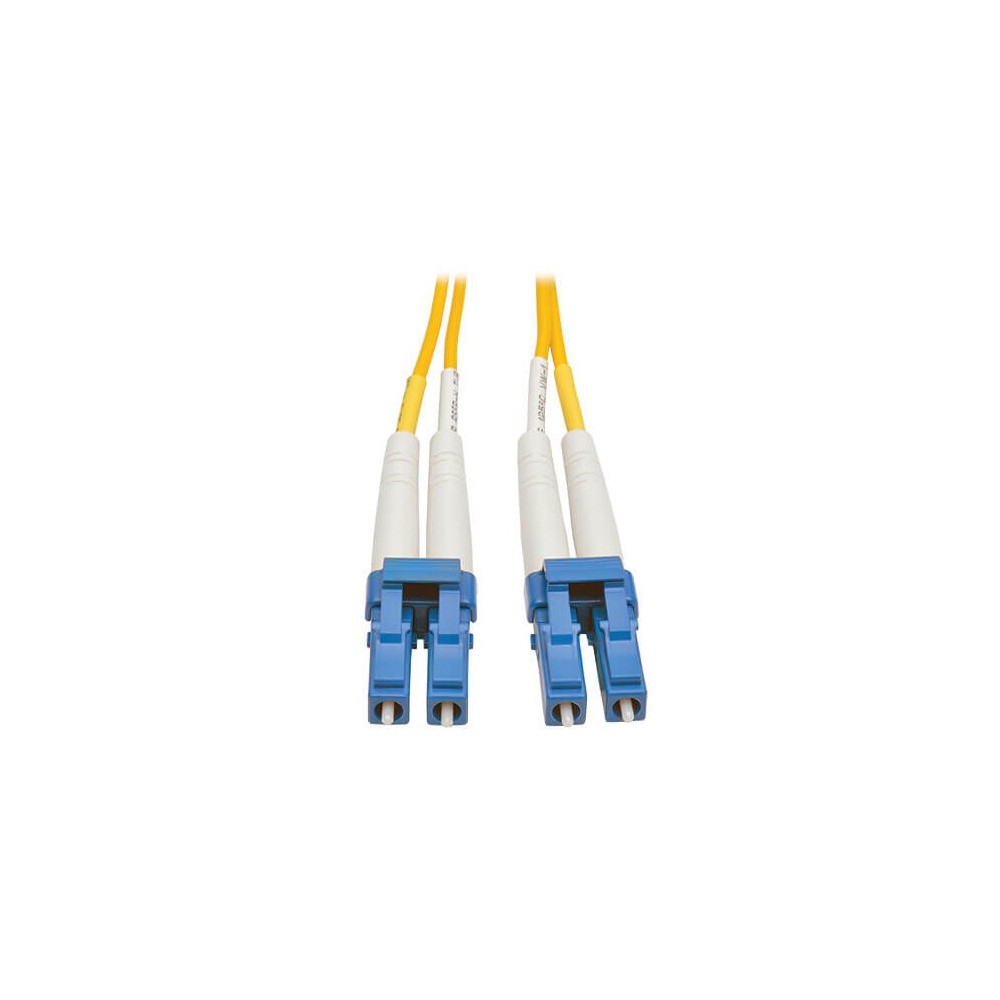

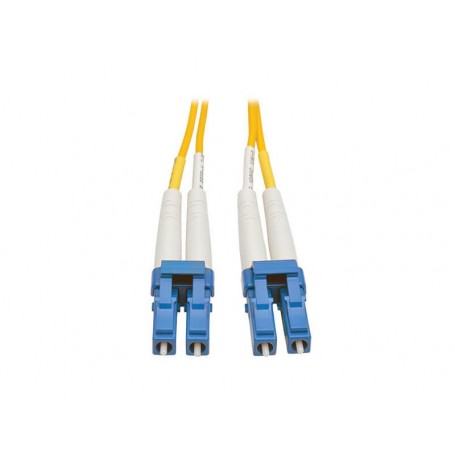

Eaton N370-05M 5M Duplex Fiber Patch Cable Compatible Tripp Lite
Overview :
The Eaton N370-05M is a Tripp Lite series duplex singlemode fiber optic patch cable designed for LAN, networking and data-center fiber connections. It uses 9/125 µm singlemode fiber with LC duplex connectors on both ends and a 5-meter (16.4 ft.) cable length. The cable is yellow and is rated OFNR for riser applications.
The cable uses glass fiber in a duplex zipcord construction and is suitable for network equipment requiring LC-to-LC singlemode connections. Manufacturer documentation lists the N370 series with OS2/singlemode fiber and UPC endface polishing.
Key Features :
- 5-meter (16.4 ft.) cable length
- Duplex singlemode fiber
- 9/125 µm fiber construction
- LC duplex connectors on both ends
- Yellow cable jacket
- OFNR riser-rated construction
- LSZH jacket material
- Duplex zipcord design
- Glass fiber construction
- UPC endface polish
- Suitable for LAN and network applications
- Supports high-speed fiber networking applications
Specifications :
| Specification | Details |
|---|
| Manufacturer | Eaton |
| Compatible Brand | Tripp Lite |
| Part Number | N370-05M |
| Product Type | Fiber Optic Patch Cable |
| Cable Type | Duplex Singlemode |
| Fiber Type | 9/125 µm |
| Optical Mode | OS2 / Singlemode |
| Number of Fibers | 2 |
| Cable Length | 5 m (16.4 ft.) |
| Connector A | LC Duplex Male |
| Connector B | LC Duplex Male |
| Endface Polish | UPC |
| Cable Jacket Color | Yellow |
| Connector Color | Blue/White |
| Jacket Material | LSZH |
| Jacket Rating | OFNR |
| Cable Construction | Duplex Zipcord |
| Fiber Material | Glass |
| Insertion Loss | ≤ 0.30 dB |
| Typical Connector Insertion Loss | 0.2 dB |
| Attenuation at 1310 nm | 0.36 dB/km |
| Attenuation at 1550 nm | 0.22 dB/km |
| Minimum Bend Radius | 20 mm dynamic / 10 mm static |
| Operating Temperature | -4° to 140°F (-20° to 60°C) |
| Operating Humidity | 5% to 85% RH, non-condensing |
| Storage Temperature | -4° to 140°F (-20° to 60°C) |
| Storage Humidity | 35% to 65% RH, non-condensing |
| Applications | LAN, networking and fiber infrastructure |
| Certifications/Standards | FDDI, OFNR |
