Detailed Specifications
Eaton N820X-02M-OM4 OM4 Multimode Fiber Optic Cable Tripp Lite
Overview :

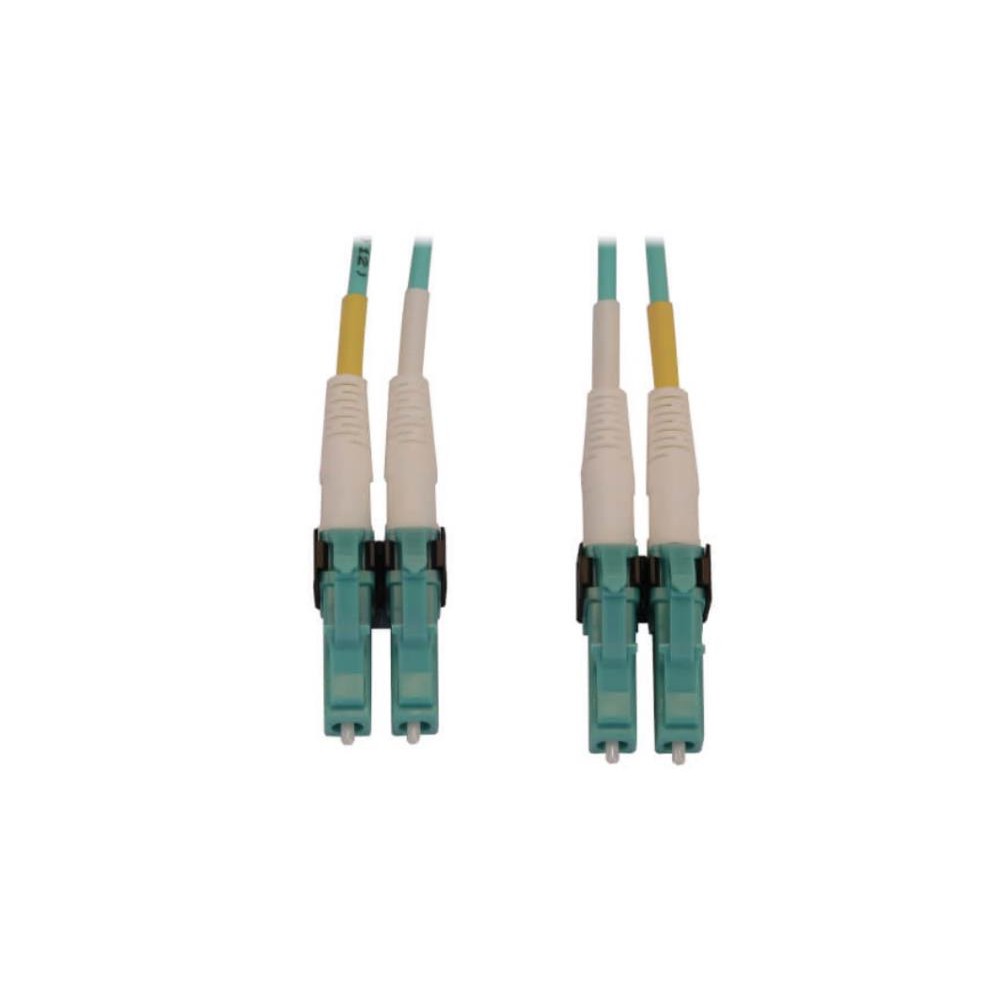

The Eaton N820X-02M-OM4 is a 2 m (6.6 ft) duplex 50/125 µm OM4 multimode fiber optic cable designed for high-density data-center and networking environments. It uses male LC duplex connectors on both ends and supports network applications from 10 Gbps through 400 Gbps.
The switchable LC connectors allow fiber polarity to be changed without tools or connector re-termination. The aqua LSZH jacket provides clear OM4 identification, while the cable is rated for 400 GbE applications up to 100 m at 850 nm and remains backward compatible with 40 Gb and 100 Gb networks.
Key Features :
- 400G-capable OM4 multimode fiber
- 2 m / 6.6 ft length
- LC duplex male connectors on both ends
- Switchable fiber polarity
- 50/125 µm multimode fiber
- Supports 10/25/40/100/400 Gbps
- 850 nm and 1300 nm wavelengths
- Aqua LSZH jacket
- OFNR-rated cable jacket
- 0.20 dB insertion loss
- Lifetime limited warranty
Specifications :
| Specification | Details |
|---|
| Brand | Eaton |
| Compatible Brand | Tripp Lite |
| Part Number | N820X-02M-OM4 |
| Product Type | Multimode Fiber Optic Cable |
| Fiber Type | OM4, 50/125 µm |
| Number of Fibers | 2 |
| Connector 1 | LC Duplex Male |
| Connector 2 | LC Duplex Male |
| Cable Length | 2 m / 6.6 ft |
| Polarity | Switchable |
| Endface Polish | PC |
| Network Compatibility | 10/25/40/100/400 Gbps |
| Wavelength | 850 nm / 1300 nm |
| Insertion Loss | 0.20 dB |
| Cable Jacket | LSZH, OFNR |
| Jacket Color | Aqua |
| Operating Temperature | -20°C to 60°C |
| Compliance | UL 1666, RoHS, CE, REACH |
