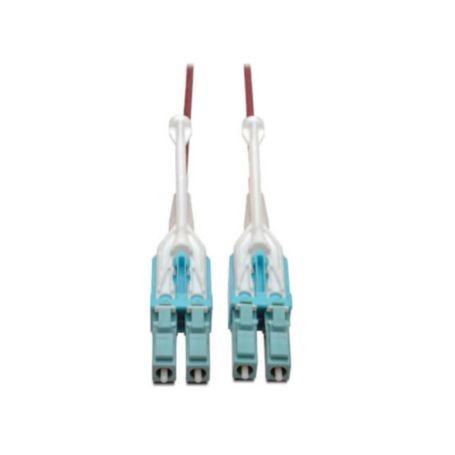

Eaton N821-02M-MG-T Tripp Lite 10G Duplex OM4 Multimode Fiber Optic Cable
Overview

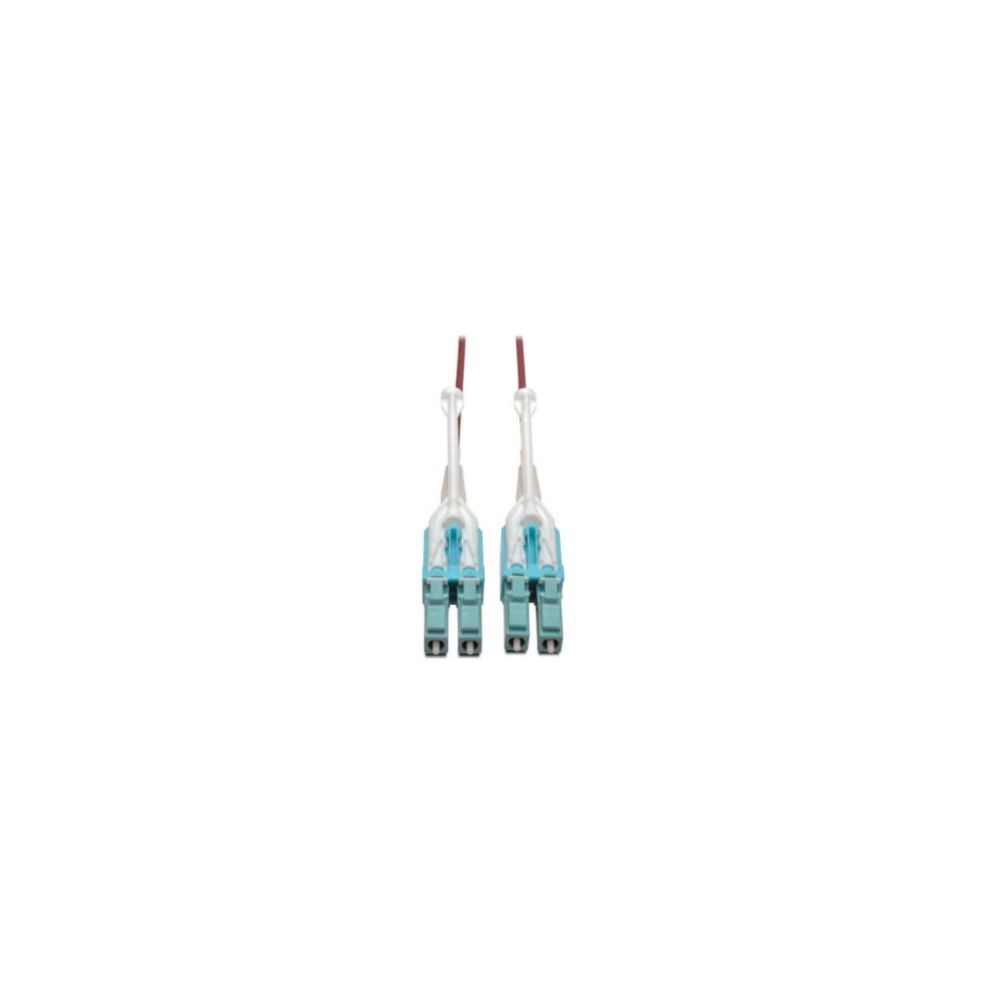

The Eaton N821-02M-MG-T is a Tripp Lite by Eaton 10G duplex multimode OM4 fiber optic patch cable designed for high-speed network connections in data centers, server rooms, network closets, and SAN environments. It uses 50/125 µm OM4 multimode fiber with LC-to-LC duplex connectors and a 2-meter length.
The cable is optimized for 10 Gigabit Ethernet applications up to 400 meters at 850 nm. Its push/pull LC tabs simplify installation and removal in high-density rack environments, while the slim uniboot construction supports cleaner cable management.
Key Features
- 10Gb duplex OM4 multimode fiber with 50/125 µm core/cladding.
- LC-to-LC male connectors with convenient push/pull tabs.
- 2 m (6.6 ft) length for rack and equipment interconnects.
- Supports 10Gb Ethernet up to 400 m at 850 nm.
- LSZH, OFNR-rated jacket with slim uniboot construction for high-density installations.
Specifications
| Specification | Details |
|---|
| Brand | Eaton / Tripp Lite by Eaton |
| Model | N821-02M-MG-T |
| Product Type | Duplex Multimode Fiber Optic Patch Cable |
| Fiber Type | Multimode |
| Fiber Grade | OM4 |
| Core/Cladding | 50/125 µm |
| Cable Configuration | Duplex |
| Connector 1 | 2 × LC Male |
| Connector 2 | 2 × LC Male |
| Cable Length | 2 m / 6.6 ft |
| Maximum 10Gb Distance | 400 m @ 850 nm |
| Jacket Material | LSZH |
| Jacket Rating | OFNR |
| Cable Color | Magenta |
| Connector Color | White/Aqua |
| Endface Polish | PC |
| Connector Design | Push/Pull Tabs |
| Construction | Slim Uniboot |
| Standards | IEEE 802.3ae, TIA LOMMF |
| Warranty | Lifetime Limited Warranty |
| UPC | 818214118141 |
