Detailed Specifications

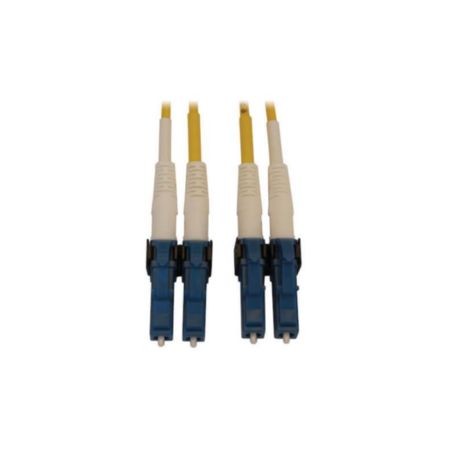

Eaton N370X-01M Tripp Lite 400G Duplex Singlemode OS2 Fiber Optic Cable
Overview
The Eaton N370X-01M, from the Tripp Lite by Eaton connectivity portfolio, is a 1 m (3.3 ft.) duplex singlemode 9/125 OS2 fiber optic patch cable with LC/UPC duplex connectors. It is designed for high-density fiber patching in enterprise networks, telecom rooms, wiring closets, and data centers.
The cable belongs to Eaton's 40/100/400 Gbps fiber cable family and supports high-bandwidth networking applications. It is recommended for 100 Gb Ethernet applications up to 100 m at 1550 nm and is backward compatible with 10 Gb and 25 Gb networks.
Its switchable LC/UPC duplex connectors allow fiber polarity to be changed without tools or connector re-termination. The yellow LSZH jacket provides quick singlemode identification and is suitable for installations requiring low-smoke, zero-halogen cable construction.
Key Features
- 40/100/400 GbE fiber cable designed for high-bandwidth data-center networking
- 9/125 OS2 singlemode fiber with LC/UPC duplex connectors
- 1 m (3.3 ft.) length for high-density patching between network equipment and fiber panels
- Switchable LC/UPC connectors enable polarity conversion without tools or re-termination
- Yellow LSZH jacket with OFNR rating provides easy singlemode identification and riser-rated construction
Specifications
| Specification | Details |
|---|
| Brand | Eaton / Tripp Lite |
| Model | N370X-01M |
| Product Type | Duplex Singlemode Fiber Optic Cable |
| Cable Family | 40/100/400 Gbps |
| Fiber Type | Singlemode |
| Optical Mode | OS2 |
| Fiber Size | 9/125 µm |
| Number of Fibers | 2 |
| Connector A | LC Duplex / LC-UPC |
| Connector B | LC Duplex / LC-UPC |
| Connector Type | Switchable LC/UPC |
| Endface Polish | UPC |
| Cable Length | 1 m / 3.3 ft. |
| Cable Jacket Color | Yellow |
| Jacket Material | LSZH |
| Jacket Rating | OFNR |
| Insertion Loss | ≤ 0.30 dB |
| Minimum Bend Radius | 10 mm |
| Operating Temperature | -20°C to 60°C (-4°F to 140°F) |
| Operating Humidity | 5-85% RH, non-condensing |
| 100 GbE Reach | Up to 100 m at 1550 nm |
| UPC | 037332271778 |
| Warranty | Lifetime limited warranty |
