Detailed Specifications

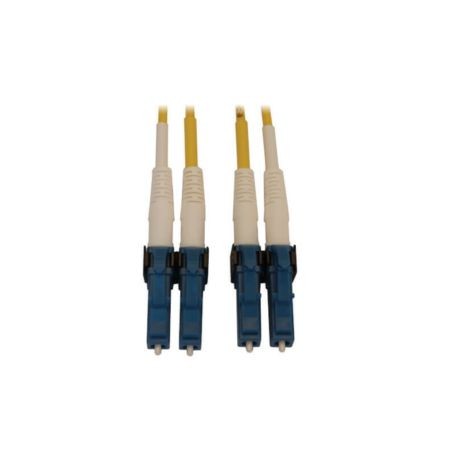

Eaton N370X-10M Tripp Lite 400G Duplex Singlemode OS2 Fiber Optic Cable
Overview
The Eaton N370X-10M, from the Tripp Lite by Eaton connectivity portfolio, is a 10 m (32.8 ft.) duplex singlemode 9/125 OS2 fiber optic cable with LC/UPC connectors. It is designed for high-density fiber patching in enterprise data centers, telecom rooms, MDFs, and IDFs.
The cable is positioned for 40/100/400 GbE applications. Eaton's catalog identifies the N370X series within its 40/100/400 Gbps cable family, while the manufacturer product documentation specifies 100 Gb Ethernet operation up to 100 m at 1550 nm and backward compatibility with 10 Gb and 25 Gb networks.
The switchable LC/UPC duplex connectors allow fiber polarity to be changed without tools or connector re-termination. The yellow LSZH jacket identifies the cable as singlemode and supports deployment where low-smoke, zero-halogen cable construction is required.
Key Features
- 400G-capable duplex singlemode fiber cable for high-bandwidth data-center networking
- 9/125 OS2 singlemode fiber with LC/UPC duplex connectors
- 10 m (32.8 ft.) length for patching between switches, patch panels, MDFs, and IDFs
- Switchable LC/UPC connectors enable tool-free fiber polarity conversion
- Yellow LSZH jacket with OFNR rating supports identification and riser-rated installations
Specifications
| Specification | Details |
|---|
| Brand | Eaton / Tripp Lite |
| Model | N370X-10M |
| Product Type | Duplex Singlemode Fiber Optic Cable |
| Cable Family | 40/100/400 Gbps Fiber Cable |
| Fiber Type | Singlemode |
| Optical Mode | OS2 |
| Fiber Size | 9/125 µm |
| Number of Fibers | 2 |
| Connector A | LC Duplex / LC-UPC |
| Connector B | LC Duplex / LC-UPC |
| Connector Type | Switchable LC/UPC |
| Cable Length | 10 m / 32.8 ft. |
| Cable Jacket Color | Yellow |
| Jacket Material | LSZH |
| Jacket Rating | OFNR |
| Endface Polish | UPC |
| Insertion Loss | ≤0.30 dB |
| Minimum Bend Radius | 10 mm |
| Operating Temperature | -20°C to 60°C (-4°F to 140°F) |
| Network Applications | 40/100/400 GbE |
| 100 GbE Reach | Up to 100 m at 1550 nm |
| UPC | 037332271853 |
| Warranty | Lifetime limited warranty |
