Detailed Specifications

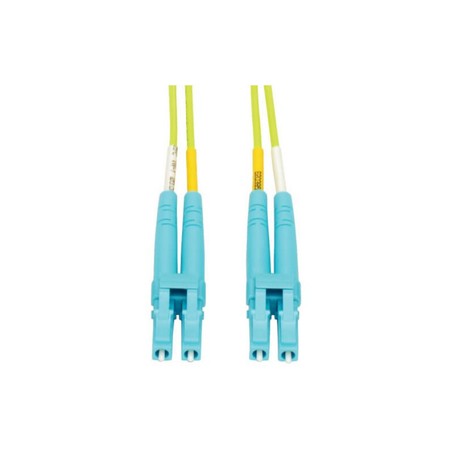

Eaton N820-02M-OM5 100G Duplex Multimode OM5 Fiber Optic Cable Compatible Tripp Lite
Overview :
The Eaton N820-02M-OM5 is a 2-meter duplex multimode OM5 50/125 fiber optic patch cable with LC duplex connectors. It is designed for high-bandwidth data-center and network applications, supporting 40/100Gb Ethernet and up to 300 m at 850 nm.
Key Features :
- OM5 50/125 multimode fiber
- LC duplex male connectors on both ends
- 2 m (6.6 ft) cable length
- Supports 40/100Gb Ethernet applications
- Up to 300 m at 850 nm
- Laser-optimized for VCSEL light sources
- LSZH cable jacket
- Lime-green cable jacket with aqua connectors
- Backward compatible with OM3 and OM4 applications
- Suitable for LAN, SAN and data-center deployments
Specifications :
| Specification | Details |
|---|
| Manufacturer | Eaton |
| Compatible Brand | Tripp Lite |
| Part Number | N820-02M-OM5 |
| Product Type | Duplex Multimode Fiber Optic Patch Cable |
| Fiber Type | OM5 Multimode |
| Fiber Core/Cladding | 50/125 µm |
| Cable Length | 2 m (6.6 ft) |
| Connector 1 | LC Duplex Male |
| Connector 2 | LC Duplex Male |
| Cable Type | Twin Zip |
| Jacket Material | LSZH |
| Cable Color | Lime Green |
| Connector Color | Aqua |
| Optical Mode | Multimode |
| Maximum Distance | 300 m at 850 nm |
| Supported Applications | 40/100Gb Ethernet |
| Wavelength Range | 850-950 nm |
| Endface Polish | PC |
| Operating Temperature | -20°C to 60°C |
| Backward Compatibility | OM3 and OM4 |
