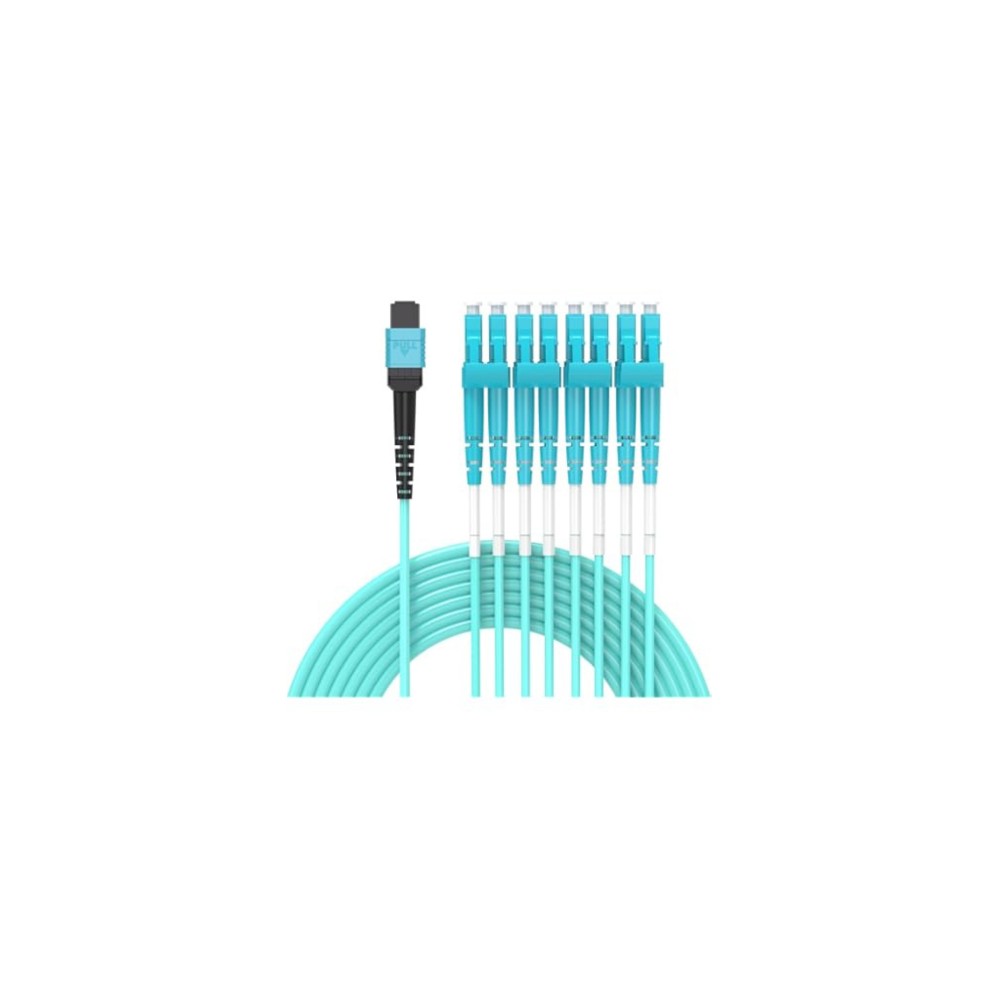

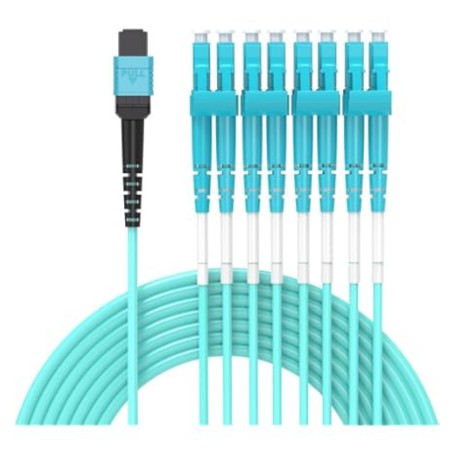

Eaton N844X-03M-8L-P 40/100/400G Multimode Fiber Breakout Cable

Overview :

The Eaton Tripp Lite series N844X-03M-8L-P is a high-density multimode fiber optic breakout cable designed for ultra-high-bandwidth enterprise networks. Network engineers, data center infrastructure technicians, and optical procurement specialists deploy this premium component to manage structural breakout connections between core hardware switches and patch frames. It directly resolves space limitations and optical congestion inside active network enclosures by facilitating high-density patching from a single high-speed port out to individual multi-channel pathways.

Engineered with advanced 8-fiber multi-fiber push-on (MTP/MPO) infrastructure, this interconnect cable delivers concurrent multi-lane optical signal transmission at speeds reaching 400 Gbps. Technical hardware capabilities focus on a 12-strand female MTP/MPO connector breaking out cleanly into four toolless switchable LC duplex pairs. The system incorporates an laser-optimized 50/125 micron OM3 core configuration that limits signal dispersion and establishes an ultra-low insertion loss baseline of 0.35 dB or less across high-frequency 850 nm and 1300 nm wavelength zones.

This multi-gigabit hardware cable is optimized for structural optical deployment across main distribution areas (MDAs), centralized network operations centers, local telecommunication frames, and enterprise server rooms. The entire outer layout is wrapped within a low-smoke zero-halogen (LSZH) protective compound jacket to conform with municipal fire safety codes inside poorly ventilated or confined spaces. Its distinctive aqua-colored exterior delivers instant visual tracking inside dense patch panels to safeguard against accidental cable disruption or administrative downtime.

Compatibility is strictly confined to high-performance network equipment supporting 10 Gbps, 25 Gbps, 40 Gbps, 100 Gbps, and 400 Gbps network rates requiring Type B polarity mappings. Do not deploy this specific assembly across single-mode networks or in environmental plenum pathways that explicitly demand specialized CMP-rated outdoor cabling components. Avoid subjecting the thin jacket layout to tight bends that fall short of the engineered 10 mm static structural bend radius threshold, as localized physical crimping will cause irreversible macrobending losses and compromise communication integrity.

Key Features :

• Toolless switchable LC connectors allow instant, rapid fiber polarity reconfigurations.

• Premium 50/125 OM3 core supports high-speed 400 GbE bandwidth up to 100 meters.

• Industrial LSZH jacket reduces toxic gas emissions during building fire emergencies.

• Bright aqua-colored exterior enables quick visual identification inside dense trays.

• Factory-terminated MTP/MPO ends ensure low 0.35 dB max insertion loss.

Specifications :
