Detailed Specifications

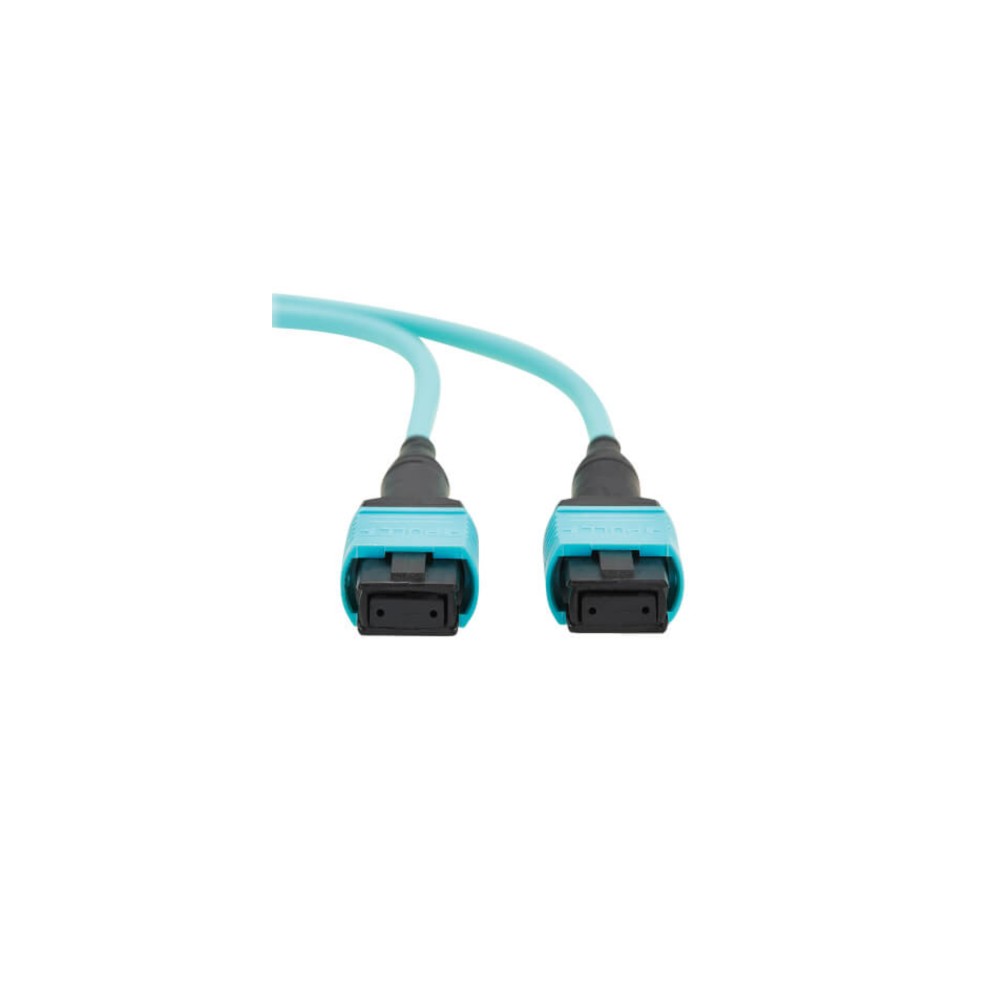

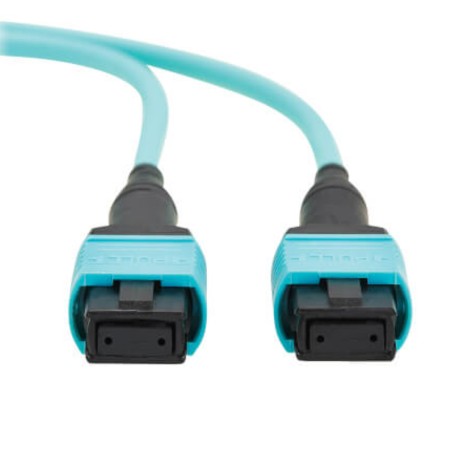

Eaton N845A-02M-12TAA 100G multimode OM4 Fiber Optic Network Cable
Overview
The Eaton N845A-02M-12TAA is a multimode OM4 fiber optic cable designed for high-density 40/100GbE data center interconnects and backbone patching applications.
It uses a 12-fiber MPO female-to-female Type-A polarity configuration for straight-through connectivity between switches, patch panels, and network infrastructure equipment in enterprise and colocation environments.
The cable supports 100Gb Ethernet transmission up to 100 meters at 1300 nm and remains backward compatible with 10Gb, 25Gb, and 40Gb network architectures for staged infrastructure upgrades.
Its OFNP plenum-rated aqua jacket supports installation in raised floors, ceiling pathways, and regulated enterprise cabling environments where fire resistance and cable identification are required.
This cable is intended for multimode MPO infrastructure and should not be used in single-mode fiber deployments or LC-based patching environments.
Key Features
- OM4 multimode cable supports 40/100GbE backbone links
- Type-A polarity enables straight-through MPO connections
- 12-fiber MPO female connectors for dense fiber deployment
- OFNP plenum jacket supports enterprise installation spaces
- Backward compatible with 10/25/40Gb network environments
Specifications
| Parameter | Value |
|---|
| Brand | Eaton |
| Part Number | N845A-02M-12TAA |
| Product Type | Fiber Optic Network Cable |
| Cable Type | Fiber Optic |
| Fiber Mode | Multimode |
| Fiber Category | OM4 |
| Fiber Size | 50/125 µm |
| Fiber Count | 12 fibers |
| Connector A | MPO Female |
| Connector B | MPO Female |
| Polarity | Type-A |
| Cable Length | 2 m (6.56 ft) |
| Data Rate | Up to 400 Gbps |
| Jacket Type | OFNP Plenum |
| Jacket Material | PVC |
| Cable Color | Aqua |
| Supported Applications | 10/25/40/100Gb Ethernet |
| Operating Temperature | -20°C to 70°C |
| Compliance | TAA, RoHS, REACH |
