Detailed Specifications

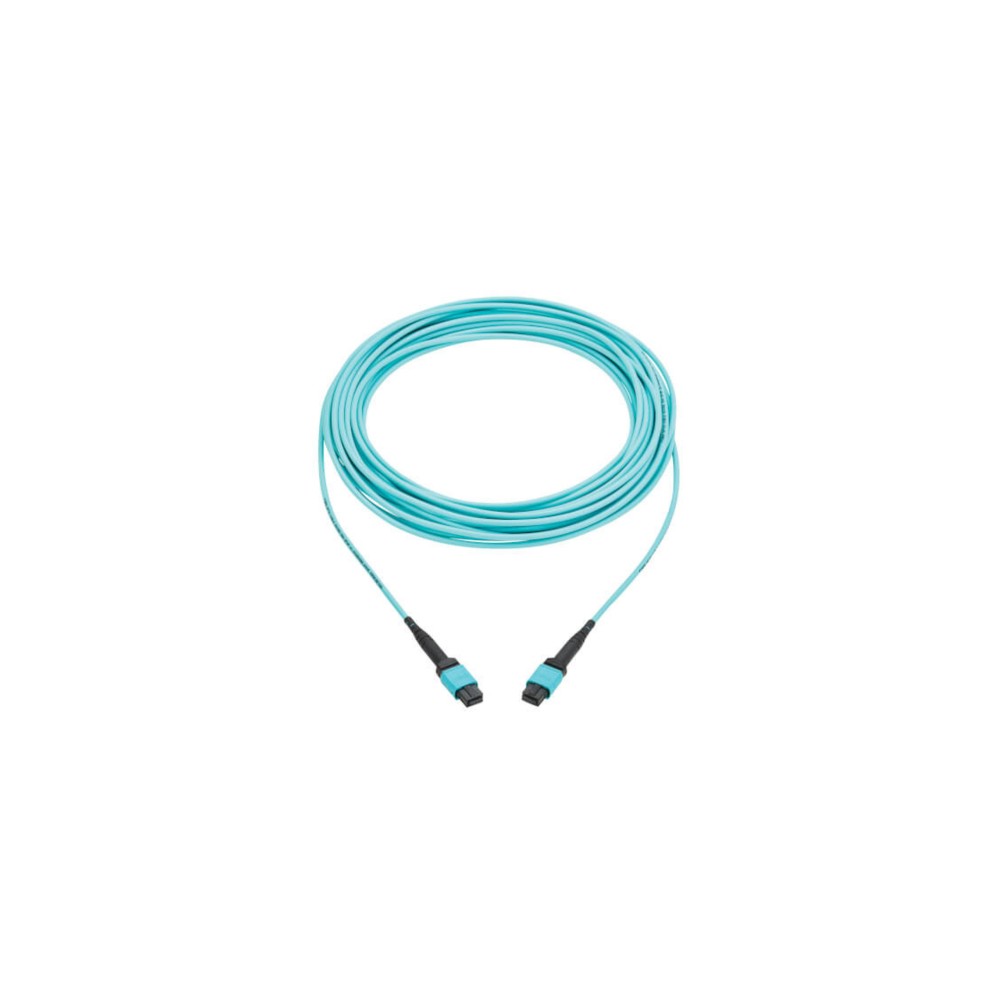

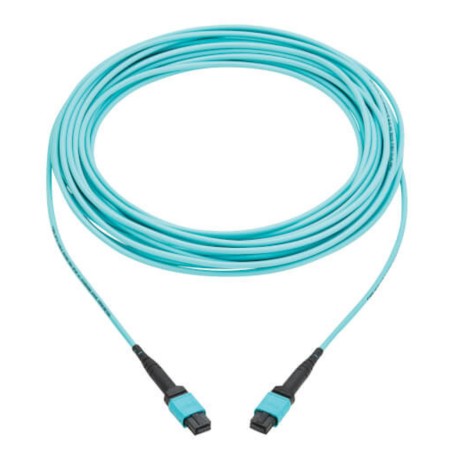

Eaton N845B-10M-12-MG OM4 Multimode Fiber Patch Cable
Overview :
The Eaton N845B-10M-12-MG is a high-density, 12-fiber multimode patch cable engineered for high-bandwidth data center infrastructures, enterprise main distribution frames (MDFs), and intermediate distribution frames (IDFs).Network engineers and infrastructure procurement teams deploy this cable to manage short-range, high-speed patch interconnections between core switches, routers, and patch panels.It solves the problem of cable congestion in dense network racks by packing 12 times the fiber density of standard SC connectors into a single MTP/MPO footprint.
Technically optimized for high-throughput networking, this 50/125 µm OM4 cable supports 40 GbE, 100 GbE, and future-proofed 400 GbE applications. It features dual female 12-strand MTP/MPO connectors with an endface PC polish, operating with a maximum insertion loss of 0.35 dB.The cable utilizes a Low-Smoke Zero-Halogen (LSZH) jacket with an OFNR riser rating, ensuring safety in poorly ventilated areas by limiting toxic smoke emissions during combustion. Slim boot connectors and integrated push/pull tabs allow rapid, one-handed installation and extraction in densely populated blade switch chassis.
This cable is designed for horizontal patch runs inside standard server cabinets, structured cabling racks, and open-frame data center distribution blocks. It is fully compatible with QSFP+ 40GBASE-SR4, QSFP28 100GBASE-SR4, and 400GBASE-SR8 optical transceivers. Do not use this cable in single-mode fiber infrastructure or deployments requiring physical outdoor routing. It is restricted to compatible MTP/MPO ports and cannot connect directly to LC or SC interfaces without breakout cassettes or adapters.
Key Features :
Supports 40/100/400 GbE bandwidths for scalable high-density aggregation
Dual 12-fiber female MTP/MPO connectors compress rack space requirements
Low-Smoke Zero-Halogen jacket meets strict local building safety codes
Integrated push/pull tabs facilitate easy one-handed connector removal
Magenta-colored outer jacket guarantees fast visual fiber plant auditing
Specifications :
| Specification | Details |
| Brand | Eaton |
| Part Number | N845B-10M-12-MG |
| Product Type | OM4 Multimode Fiber Patch Cable |
| Core / Cladding Diameter | 50 / 125 µm |
| Fiber Count | 12 Fibers (Base-8 compatible) |
| Connector Type Side A | 12-Strand MTP/MPO (Female) |
| Connector Type Side B | 12-Strand MTP/MPO (Female) |
| Cable Length | 10 meters (32.8 feet) |
| Maximum Insertion Loss | 0.35 dB |
| Attenuation @ 850nm / 1300nm | 3.5 dB/km / 1.5 dB/km |
| Cable Jacket Material | Low-Smoke Zero-Halogen (LSZH) |
| Jacket Rating | OFNR Riser |
| Minimum Bend Radius (Static / Dynamic) | 10 mm / 20 mm |
| Operating Temperature Range | -4° to 140°F (-20° to 60°C) |
| Network Compatibility | 10 Gbps / 40 Gbps / 100 Gbps / 400 Gbps |
| Compliance Certifications | UL 1666, RoHS, REACH, CE |
