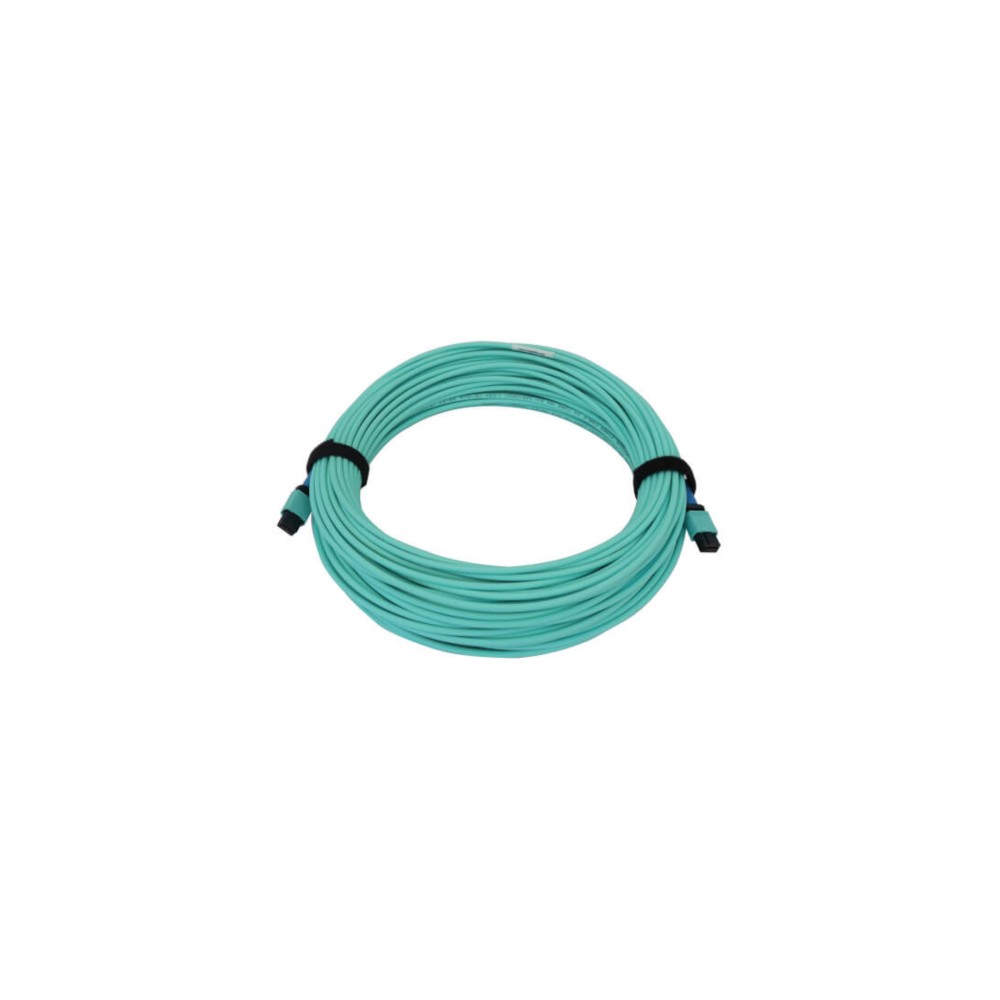

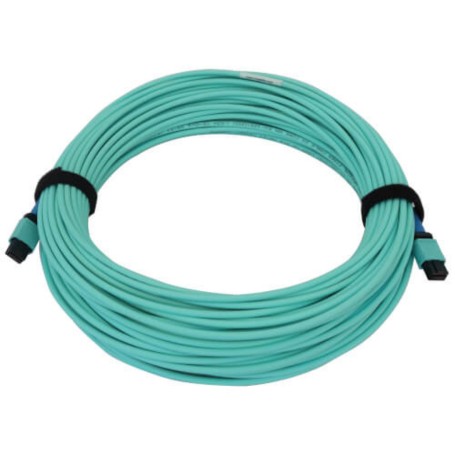

Eaton N846B-25M-24-P MTP/MPO Fiber Optic Cable

Overview :

The Eaton N846B-25M-24-P (Tripp Lite Series) is a premium 25-meter (82-foot) 24-fiber OM3 multimode fiber optic patch cable built for ultra-high-density data center networks. Data center architects, backbone structural engineers, and IT infrastructure procurement specialists deploy this multi-fiber trunk backbone link to resolve patch cabling bottlenecks between Main Distribution Areas (MDF) and Intermediate Distribution Areas (IDF).

The trunk cable delivers continuous full-duplex support across high-bandwidth infrastructure arrays, handling native 40 GbE, 100 GbE, and next-generation 400 GbE hardware networks over short-reach spans. It uses 50/125 micron laser-optimized OM3 glass cores inside a Low-Smoke Zero-Halogen (LSZH) protective rated jacket to eliminate hazardous toxic gas release in structural plenum areas. Factory-terminated with precision-polished 24-strand female MTP/MPO connectors, it guarantees minimal insertion loss margins across optical switch intersections.

This optical cable spans 25 meters in layout and connects directly into enterprise fiber patch modules, unshielded optical cassettes, or direct QSFP-DD high-speed transceiver interfaces. Never connect this multimode cable infrastructure into single-mode (OS2) laser transceiver optics, as the massive core diameter variance will induce total signal scattering and lock out communications.

Key Features :

• 400 Gbps rated data throughput easily handles dense cloud trunks.

• 24-fiber MTP/MPO connectors maximize density across rack switches.

• Laser-optimized 50/125 OM3 core guarantees low signal distortion.

• Low-Smoke Zero-Halogen jacket meets strict server room fire codes.

• Vivid aqua outer jacket allows instant cable array identification.

Specifications :
