Detailed Specifications

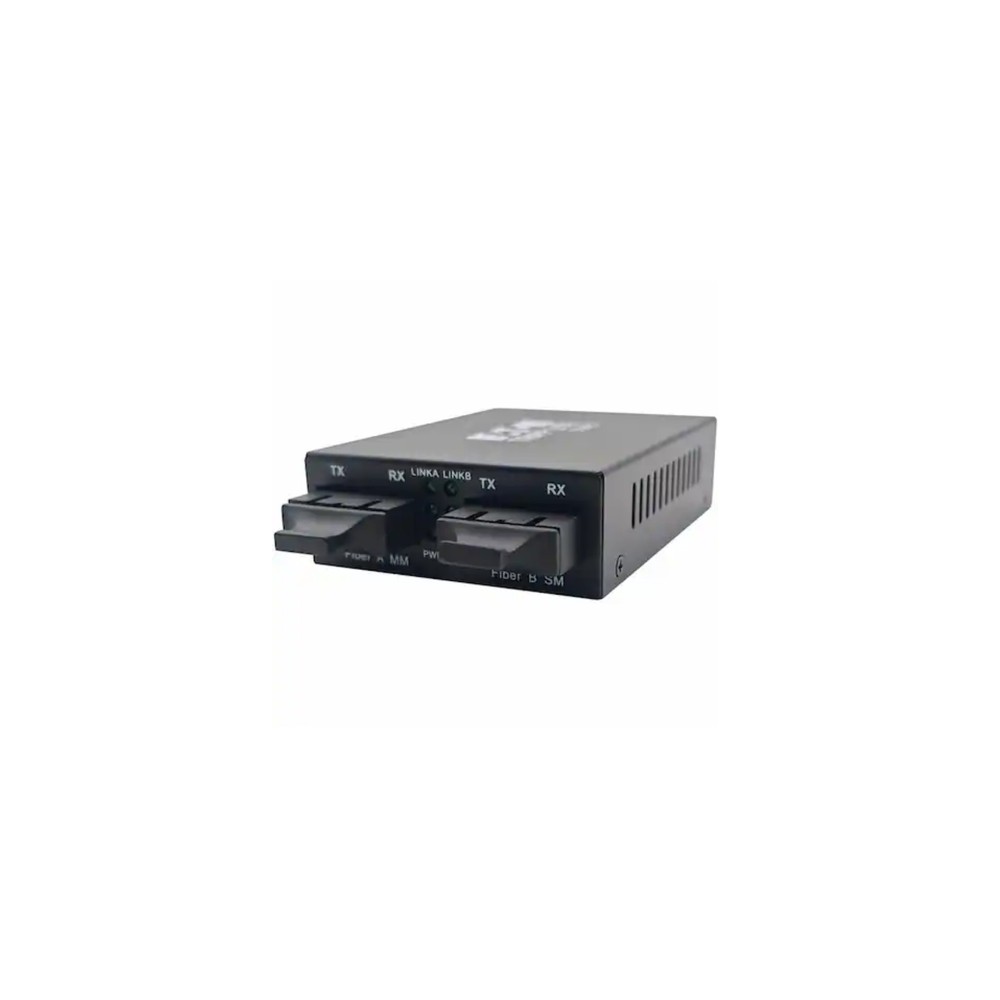

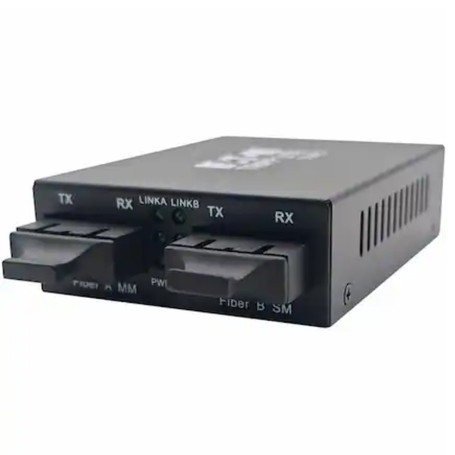

Eaton N785-MDC-1SCSC Gigabit SC Fiber Mode Converter
Overview
The Eaton N785-MDC-1SCSC is a Gigabit fiber optic mode converter designed for SC duplex multimode-to-singlemode conversion in enterprise, campus, and data-center backbone networks. It enables reliable 1GbE optical transport over mixed fiber environments where wavelength and fiber-type conversion is required.
The unit supports 10/100/1000 Mbps Ethernet on the copper side and 1GbE fiber transmission using SC duplex interfaces. It is commonly deployed to extend network links up to 10 km (6.2 miles) depending on fiber and optical configuration.
Engineered for structured fiber environments, the N785-MDC-1SCSC provides plug-and-play operation with LED diagnostics for link status, speed, and fault detection. It is built in a rugged metal enclosure for rack-adjacent or shelf deployment in controlled IT environments.
This model is intended for Gigabit SC-based fiber infrastructures and is not compatible with SFP/SFP+ architectures or higher-density optical switching platforms.
Key Features
- Supports 10/100/1000 Mbps Ethernet over fiber
- SC duplex mode conversion for MM/SM networks
- Extends fiber links up to 10 km depending on optics
- LED indicators for link, speed, and diagnostics
- Rugged metal housing for enterprise deployments
Specifications
| Specification | Details |
|---|
| Brand | Eaton |
| Part Number | N785-MDC-1SCSC |
| Product Type | Gigabit Fiber Mode Converter |
| Data Rate | 10/100/1000 Mbps (1GbE fiber) |
| Interface Type | SC Duplex |
| Fiber Type | Multimode / Singlemode conversion |
| Max Link Distance | Up to 10 km (6.2 miles) |
| Wavelength | 850 nm / 1310 nm |
| Management | Unmanaged (plug-and-play) |
| Diagnostics | LED status indicators |
| Housing | Metal chassis |
| Operating Temperature | 0°C to 70°C |
| Power Input | External AC adapter (100-240V) |
| Mounting | Desktop / shelf / rack-adjacent |
