Detailed Specifications

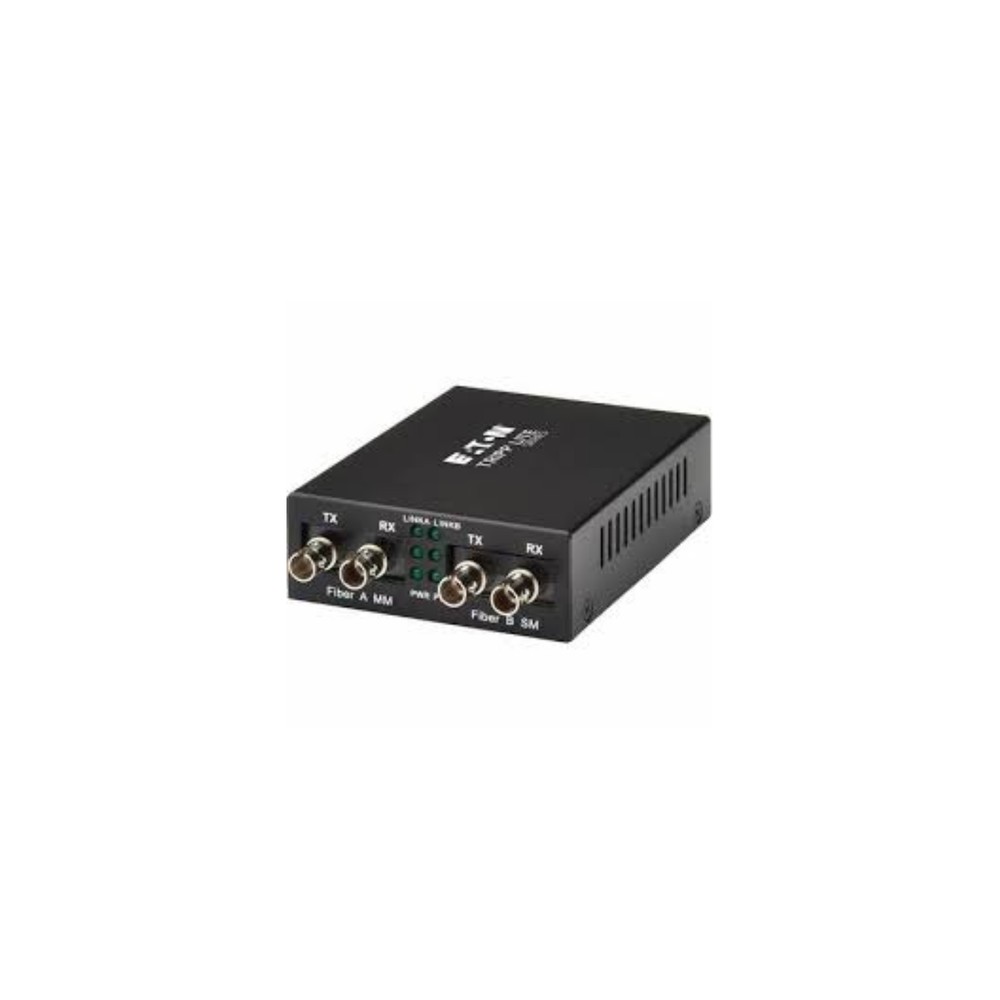

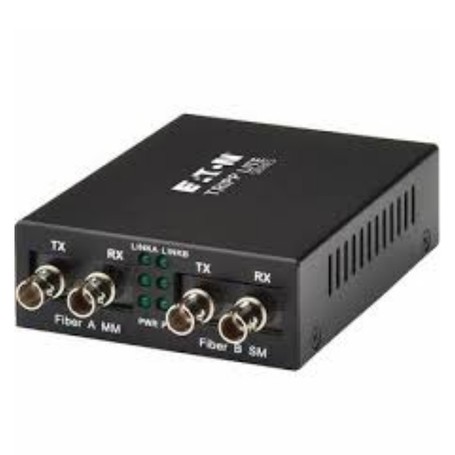

Eaton N784-MDC-1STST - ST Fiber Mode Converter
Overview
The Eaton N784-MDC-1STST is a 100 Mbps fiber optic media converter designed for ST-to-ST duplex fiber connectivity in enterprise, campus, and legacy network infrastructures. It enables reliable multimode-to-singlemode fiber conversion for extending optical links where copper Ethernet is not feasible.
This unit supports transmission distances up to 10 km depending on optical configuration and fiber type. It is commonly used in industrial networks, campus backbone extensions, and legacy data-center environments where ST connector-based fiber systems are still deployed.
The device operates as a plug-and-play converter with LED status indicators for power, link, and diagnostics. It is housed in a rugged metal enclosure for continuous operation in controlled IT environments and supports standard AC power input via external adapter.
This model is strictly limited to 100 Mbps fiber operation and is not compatible with Gigabit, SFP, or modern high-density optical switching architectures.
Key Features
- ST-to-ST duplex fiber media conversion
- Supports up to 100 Mbps optical throughput
- Extends fiber links up to 10 km (optics dependent)
- Plug-and-play operation with LED diagnostics
- Rugged metal housing for enterprise deployment
Specifications
| Specification | Details |
|---|
| Brand | Eaton |
| Part Number | N784-MDC-1STST |
| Product Type | Fiber Optic Mode Converter |
| Data Rate | 100 Mbps |
| Connector Type | ST Duplex |
| Fiber Compatibility | Multimode / Singlemode (mode conversion) |
| Maximum Distance | Up to 10 km |
| Wavelength | 1310 nm |
| Management | Unmanaged (plug-and-play) |
| Diagnostics | LED status indicators |
| Housing | Metal chassis |
| Operating Temperature | 0°C to 70°C |
| Power Input | External AC adapter (100-240V) |
| Mounting | Desktop / shelf / rack-adjacent |
