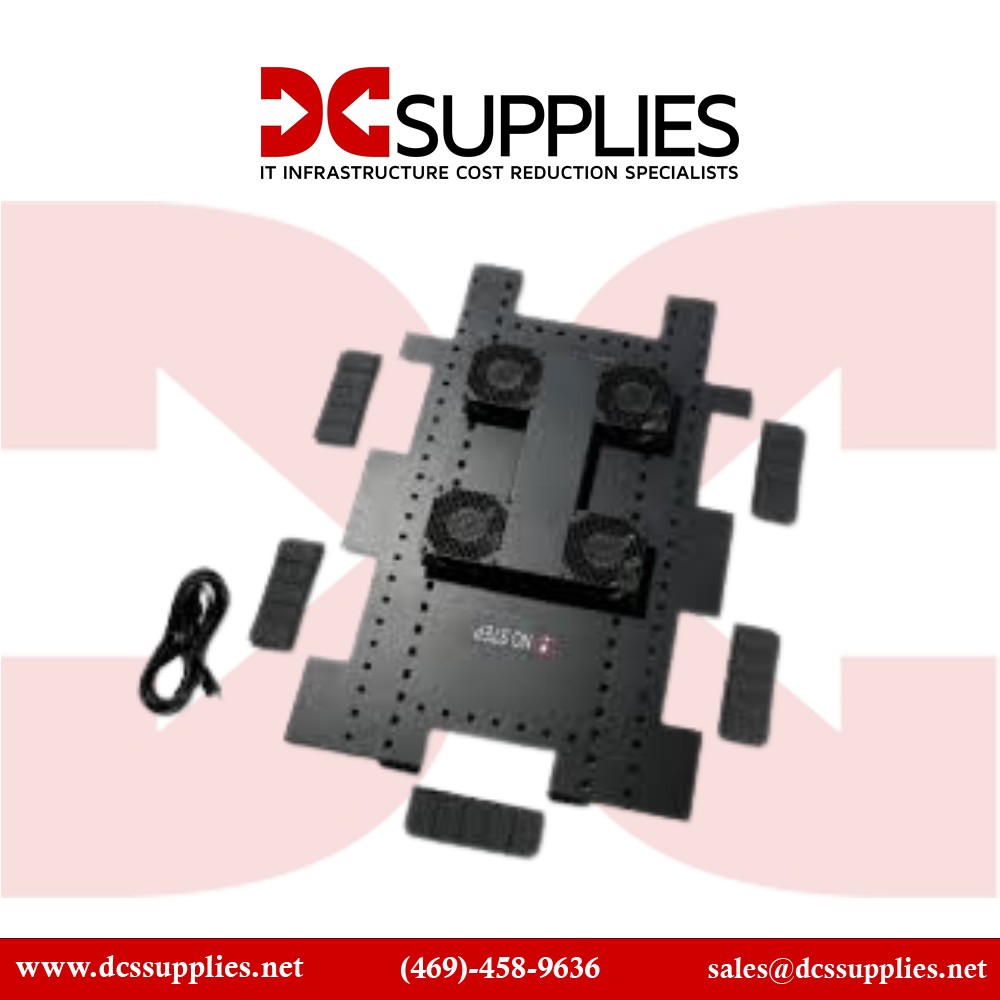

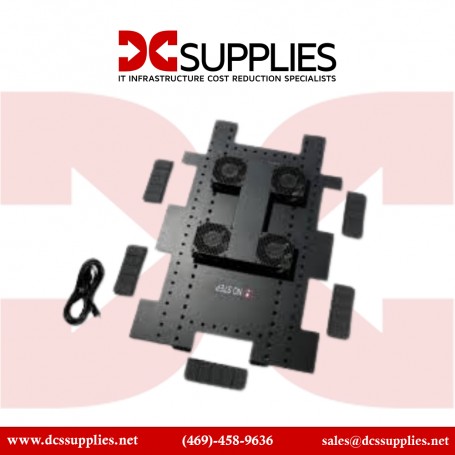

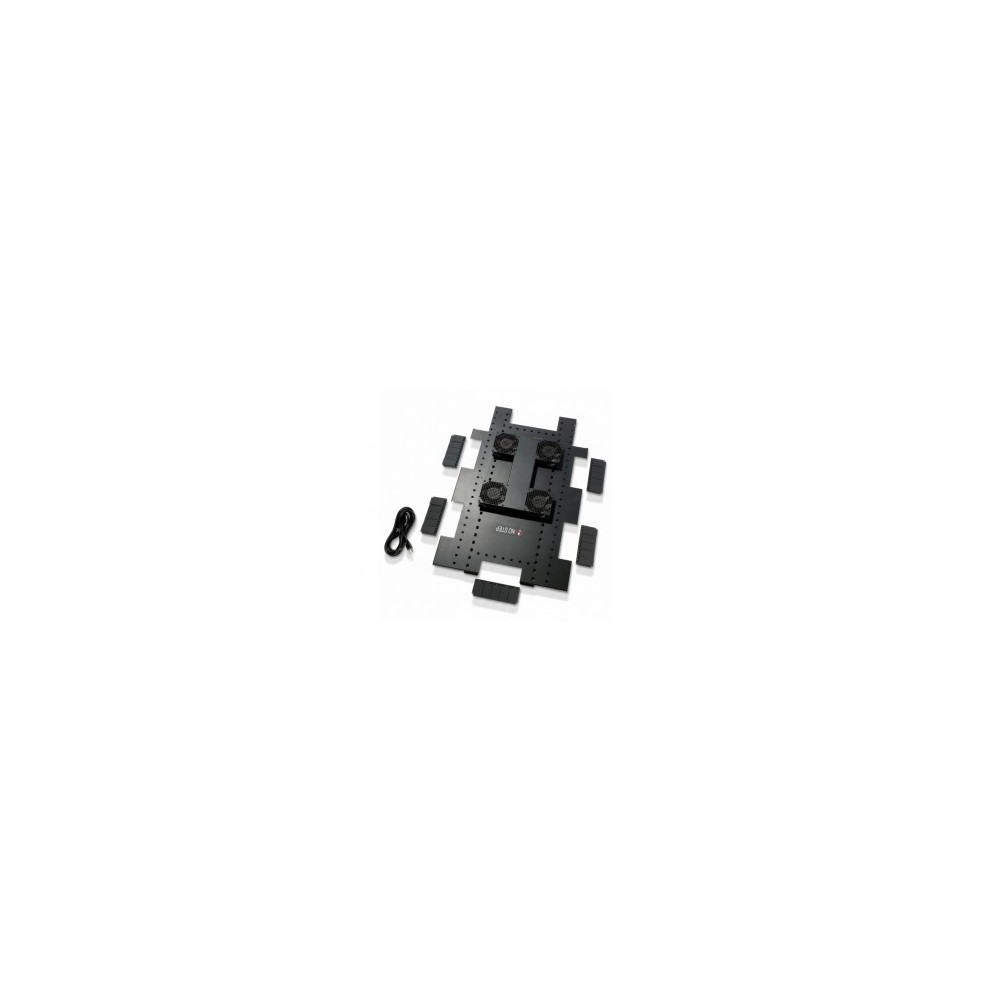

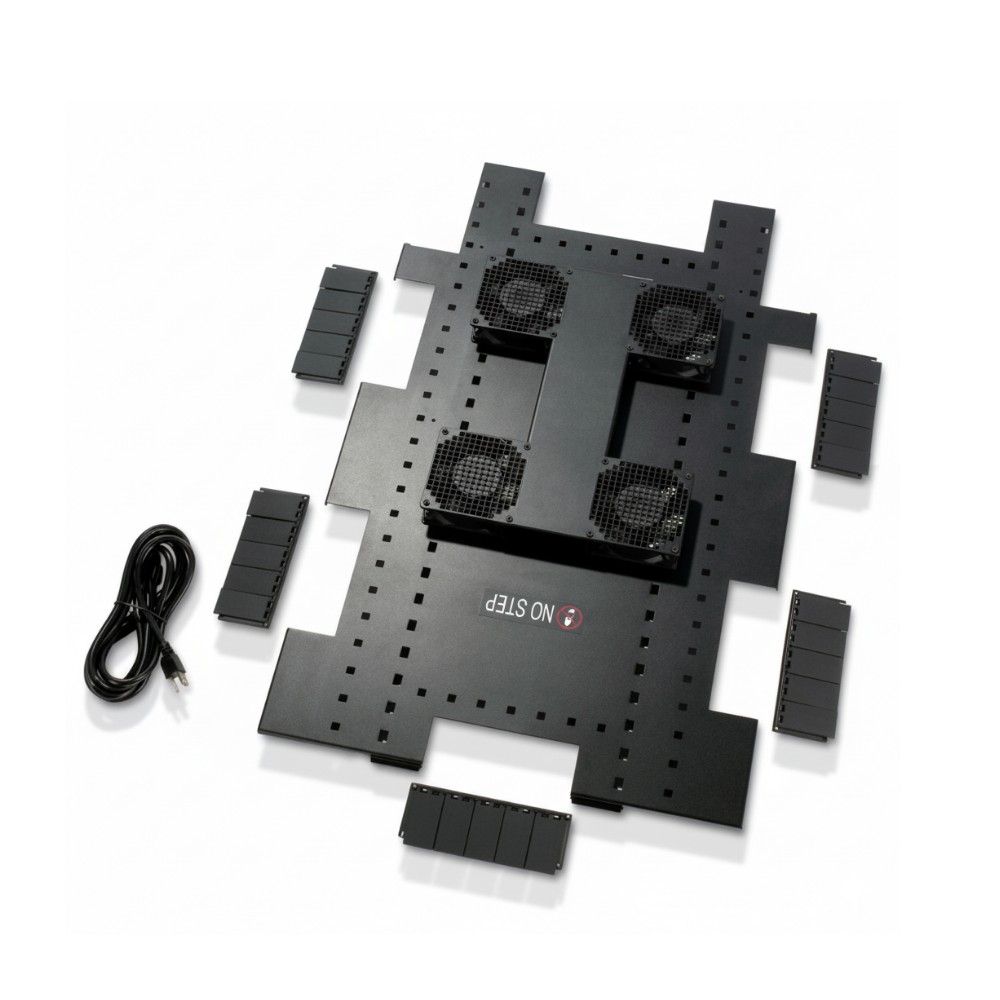

The APC ACF501 Roof Fan Tray is an essential component designed to optimize thermal management within NetShelter SX 600mm wide and 1070mm deep enclosures, ensuring the longevity and reliable operation of critical IT equipment. This fan tray provides a cost-effective solution for expelling heat, effectively mitigating the risks associated with elevated internal cabinet temperatures.
Its low-profile design integrates seamlessly into the roof of a rack, facilitating efficient heat removal. Engineered to promote a bottom-to-top airflow pattern, the ACF501 fan tray draws cooler air from the base of the enclosure and expels hot air from the top. With a maximum airflow capacity of 440 cubic feet per minute (CFM) and operating at an input voltage of 115 V AC, it delivers robust cooling performance.

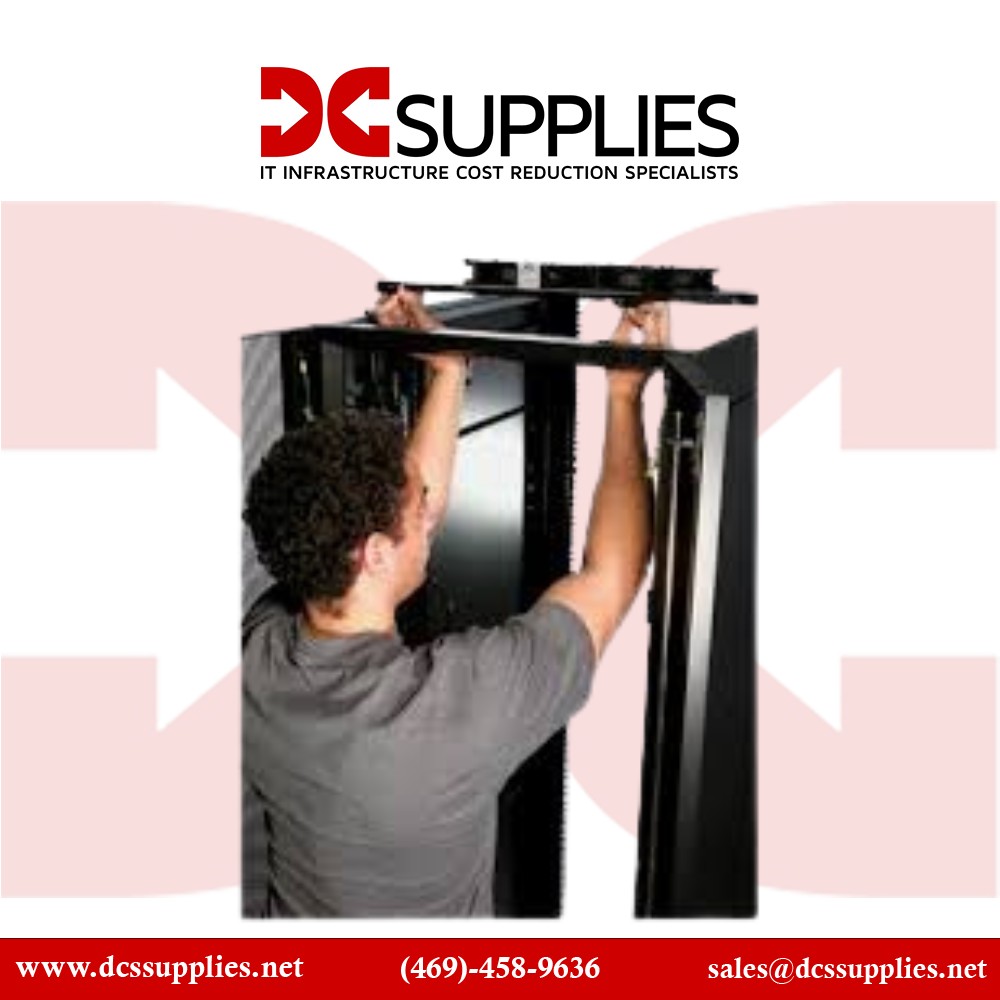

This targeted airflow design is crucial for preventing hot spots and maintaining a stable operational environment, which directly contributes to the improved performance and lifespan of installed servers and networking gear. Deployment of the APC ACF501 is straightforward, featuring tool-less mounting for quick and hassle-free installation into compatible NetShelter SX enclosures. This roof-mounted solution is ideal for data centers, server rooms, and wiring closets where maintaining consistent temperatures is paramount. Its design also includes features like cable pass-throughs, aiding in organized cable management within the rack infrastructure.
| Specification | Value |
|---|---|
| Brand | APC |
| Part Number | ACF501 |
| Product Type | Fan Tray |
| Series | NetShelter SX |
| Input Voltage | 115 V AC |
| Receptacle Type | NEMA 5-15P |
| Maximum Air Flow | 440 CFM |
| Maximum Noise Level | 51 dB(A) |
| Color | Black |
| Height | 2.4 inches |
| Width | 22.6 inches |
| Depth | 35.2 inches |
| Weight | 18.54 lbs |
| Compatibility | NetShelter SX 600mm Enclosures |
| Environmental Compliance | RoHS, REACH |
All packages are shipped same day if the order is placed before 3PM CST
We use UPS/FedEx to ship the packages with different service levels offered by UPS/FedEx
Overnight Shipping take 1 business day
Expedited Shipping take about 2-3 business days
Ground shipping take about 3-5 business days
You can select the desired service level at Checkout and we will make sure the package is shipped as per the selected service level.
We Accept
i) PayPal
ii) All Credit & Debit Cards
iii) Purchase Orders
iv) Check
v) Bank Transfer/ACH/Wire Transfer
To process the order through Paypal/CC, you can simply checkout and process the payment.
If you want to issue us Purchase Order/Check/Bank Transfer, Please contact us at the following details
Call: 469.458.9636
Email: sales@dcsupplies.net
If you have any queries, please contact us at the following details and we will be happy to help
Call
469.458.9636
469.458.9638
Email
sales@dcsupplies.net
No customer reviews for the moment.

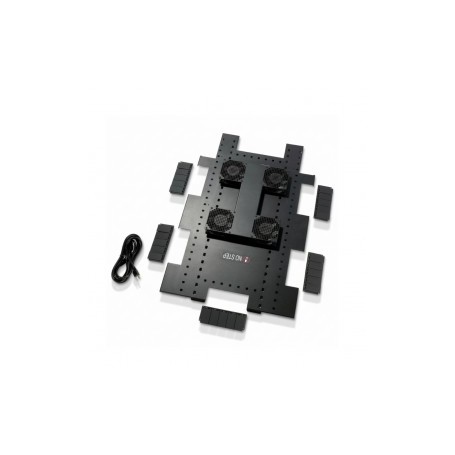

APC ACF501 Roof Fan Tray 120VAC 50 60HZ
