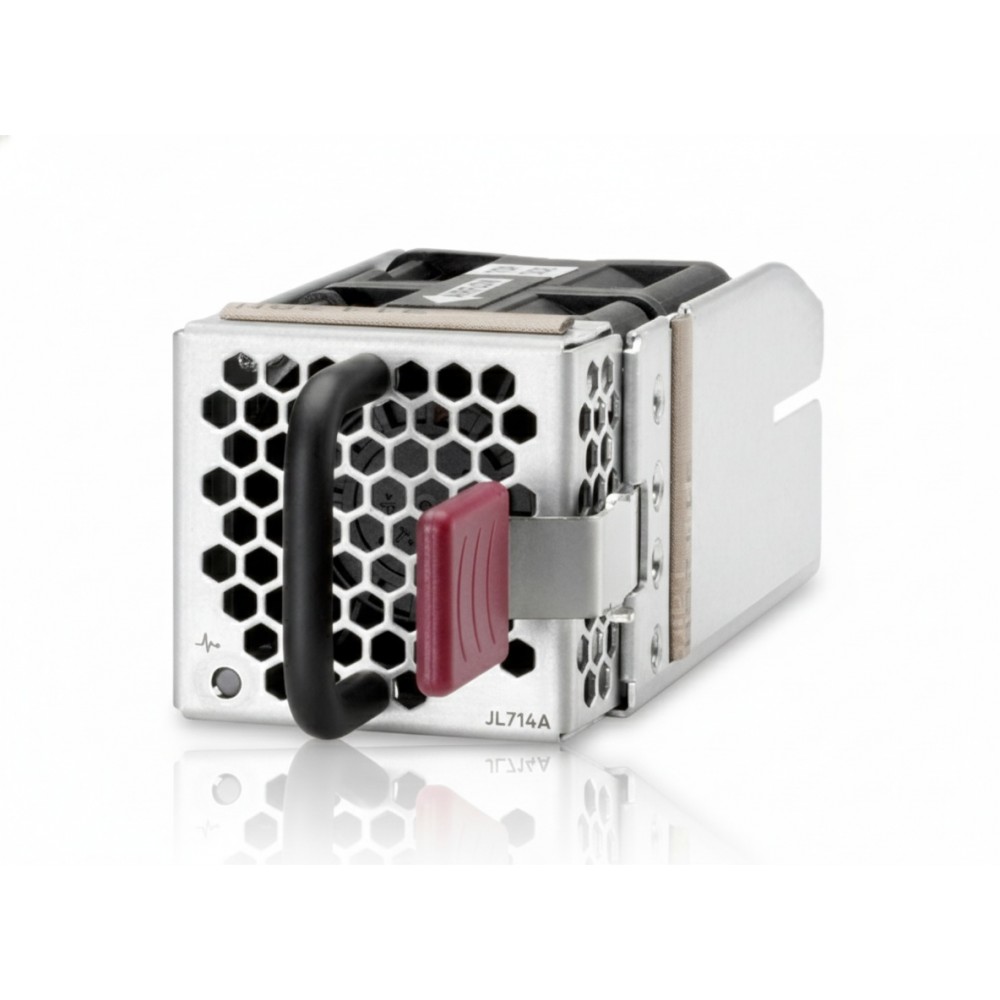

HPE JL714A Networking X741 Networking X74 fan module View larger

HPE JL714A Networking X741 Networking X74 fan module

JL714A

New

Front-to-back port-to-power fan module for Aruba CX switches
×




Detailed Specifications

HPE JL714A Port-to-Power Fan Module

Overview

The HPE JL714A is a hot-swappable fan tray designed for Aruba CX 8100 and CX 8360 switches that use a port-to-power airflow direction. It maintains consistent airflow from the switch ports toward the power section, supporting reliable cooling in dense 1U and modular deployments. This module is suitable for data-center and aggregation environments where precise thermal control is required. The fan tray integrates seamlessly with Aruba chassis systems and supports continuous operation through in-service replacement.

Key Features

  • Port-to-power (front-to-back) airflow direction

  • Hot-swappable fan tray for non-stop operation

  • Compatible with Aruba CX 8360 and CX 8100 switches

  • Red airflow identifier latch for correct orientation

  • Stable airflow for high-density rack environments

Technical Specifications

SpecificationDetails
Brand HPE / Aruba
Part Number JL714A
Product Type Cooling fan module
Compatible Devices Aruba CX 8360, CX 8100
Airflow Direction Port-to-Power (front-to-back)
Number of Fans 2 per tray
Hot-Swap Yes
Form Factor 1U fan module
Dimensions (H × W × D) 1.6″ × 1.6″ × 2.2″
Weight 6.61 lbs
Operating Temperature Standard data-center range
Airflow Identifier Red latch
Warranty Limited HPE warranty
