Detailed Specifications

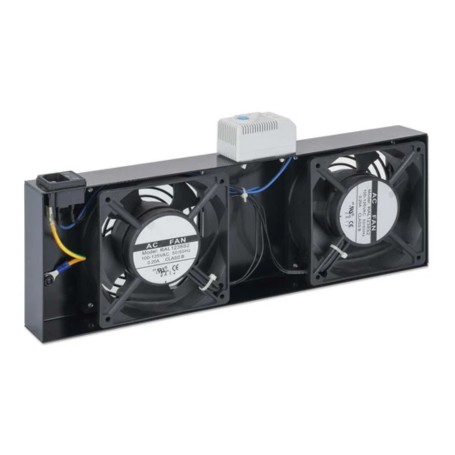

Intellinet 716383 2 Fan Roof Mount Ventilation Unit with Thermostat
Overview :
Engineered for standard 19-inch IT enclosures, this dual-fan roof-mount ventilation unit delivers active thermal management for wall-mount network cabinets. Network administrators and low-voltage deployment teams rely on it to dissipate internal heat loads and safeguard sensitive switches, patch panels, and routers against thermal degradation.
The system features two high-efficiency 120 mm fans producing an aggregate airflow of 170 m"/h (100 cfm) while operating at a whisper-quiet noise level of just 24.9 dB(A).An integrated mechanical thermostat with a 0°C to 60°C monitoring range allows technicians to set specific temperature thresholds, automatically cycling the fans on and off to conserve energy.
Designed for standard top-panel cutouts, it drops directly onto the roof of compatible network enclosures in enterprise wiring closets, edge telecommunication rooms, and security monitoring stations.
Compatibility covers most standard 19-inch wall-mount server cabinets featuring standard roof cutout configurations. Do not deploy this ventilation module in unvented enclosures lacking fresh air intake paths or in environments exceeding its specified operating voltage range.
Key Features :
Dual 120 mm fans deliver efficient 100 cfm total airflow
Built-in adjustable thermostat regulates operating cycles
Ultra-quiet operation at only 24.9 dB(A) noise level
Energy-saving automatic activation prevents continuous run
Includes 1.8 m detachable power cord and grounding cable
Specifications :
| Specification | Detail |
| Brand | Intellinet Network Solutions |
| Part Number | 716383 |
| Product Type | 2-Fan Roof-Mount Ventilation Unit |
| Capacity / Power | 10.0 W Rated Power / 170 m"/h Total Airflow |
| Interfaces / Ports | C13 to AC Power Receptacle |
| Form Factor | 19-Inch Wall-Mount Cabinet Roof-Mount |
| Compatibility | Standard 19-Inch Wall-Mount Enclosures |
| Environmental | Operating Temp: 0°C to 60°C (32°F to 140°F) |
| Operating Voltage | 110V to 240V AC, 50/60 Hz |
| Noise Level | 24.9 dB(A) |
| Certifications | UL Approved, CE, RoHS, REACH, UKCA |
