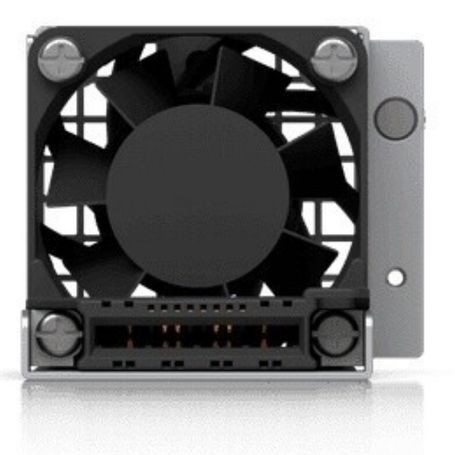

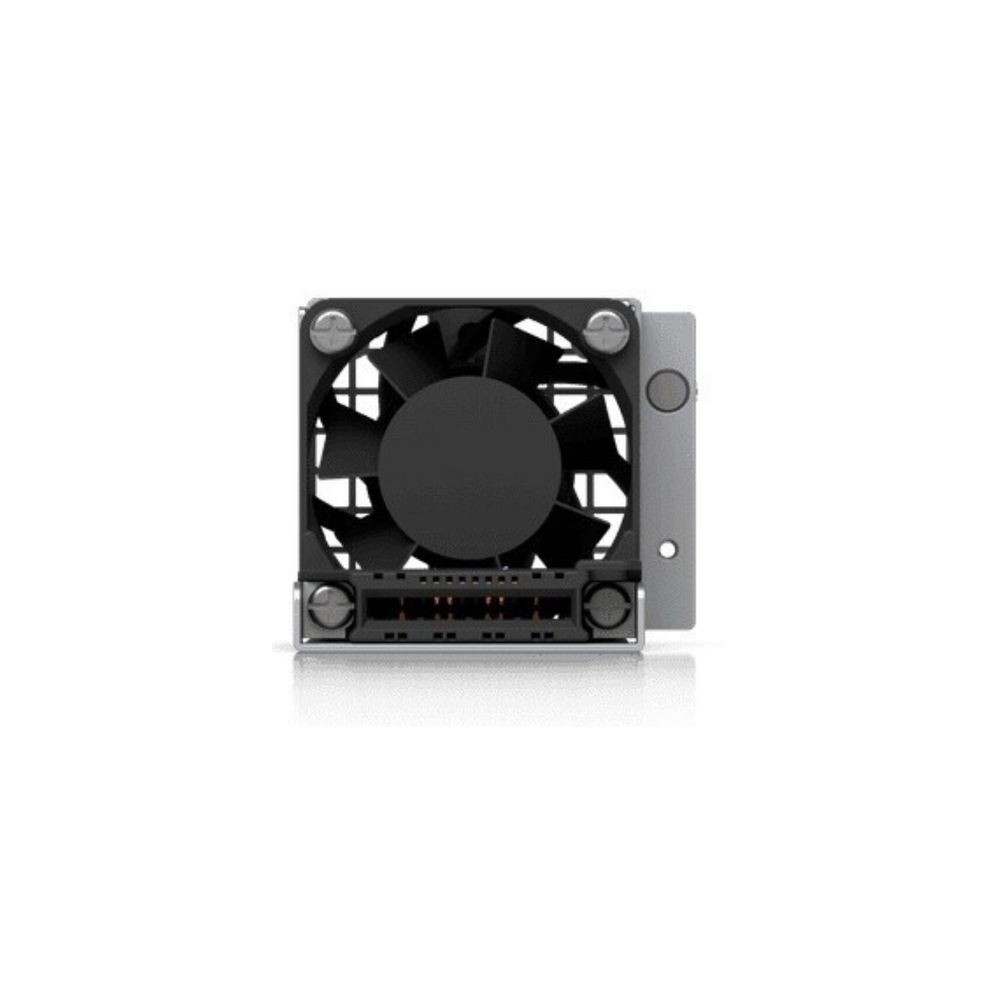

Ubiquiti UACC-FAN-F2B-4020 Hot-Swappable Fan Module Front-to-Back
Overview
The Ubiquiti UACC-FAN-F2B-4020 is a hot-swappable fan module designed for selected Ubiquiti Enterprise Campus switches. It provides front-to-back airflow for equipment designed around that airflow direction and supports fan replacement without shutting down the compatible switch.
The module operates at 18,000 ±10% RPM and has a maximum power consumption of 10.8W. Its compact form factor is intended for direct installation in compatible Ubiquiti switch chassis.
Technical Information
UACC-FAN-F2B-4020 uses a front-to-back airflow configuration and a fan speed of 18,000 ±10% RPM. The manufacturer specifies dimensions of 79.9 × 47.5 × 41.3 mm and a weight of 150 g.
The hot-swappable design allows the fan module to be serviced independently of the complete switch chassis when installed in supported equipment. The F2B designation identifies the front-to-back airflow configuration.
Compatibility
UACC-FAN-F2B-4020 is specified for selected Ubiquiti Enterprise Campus switches, including ECS-Aggregation, ECS-24-PoE, ECS-24S-PoE, ECS-48-PoE, and ECS-48S-PoE. Verify the installed switch model and required airflow direction before replacing a fan module.
Key Features
- Hot-swappable fan module for supported Ubiquiti Enterprise switches
- Front-to-back airflow configuration
- 18,000 ±10% RPM operating speed
- 10.8W maximum power consumption
- Compact 79.9 × 47.5 × 41.3 mm module dimensions
Applications
- Replacement cooling modules for compatible Ubiquiti Enterprise Campus switches
- Front-to-back airflow rack deployments
- Network switch maintenance and fan replacement
- Data center and equipment-room switch installations
- Service replacement for supported ECS switch platforms
DC Supplies Product Note
UACC-FAN-F2B-4020 is an airflow-direction-specific replacement module. Confirm that the existing switch requires front-to-back airflow before ordering this F2B version.
Specifications
| Specification | Details |
|---|
| Brand | Ubiquiti |
| Part Number / MPN | UACC-FAN-F2B-4020 |
| Product Type | Hot-Swappable Fan Module |
| Airflow Direction | Front-to-back |
| Fan Speed | 18,000 ±10% RPM |
| Maximum Power Consumption | 10.8 W |
| Dimensions | 79.9 × 47.5 × 41.3 mm |
| Weight | 150 g |
| Compatibility | ECS-Aggregation, ECS-24-PoE, ECS-24S-PoE, ECS-48-PoE, ECS-48S-PoE |
| Hot-Swappable | Yes |
| Product Color | Black |
| EAN / UPC | 810084697900 |
FAQs
What is the Ubiquiti UACC-FAN-F2B-4020?
It is a hot-swappable fan module for selected Ubiquiti Enterprise Campus switches, using a front-to-back airflow configuration.
What direction does the UACC-FAN-F2B-4020 move air?
The module provides front-to-back airflow.
What is the fan speed?
The specified fan speed is 18,000 ±10% RPM.
Which Ubiquiti switches are compatible?
Specified compatible models include ECS-Aggregation, ECS-24-PoE, ECS-24S-PoE, ECS-48-PoE, and ECS-48S-PoE.
What is the maximum power consumption?
The maximum specified power consumption is 10.8W.
