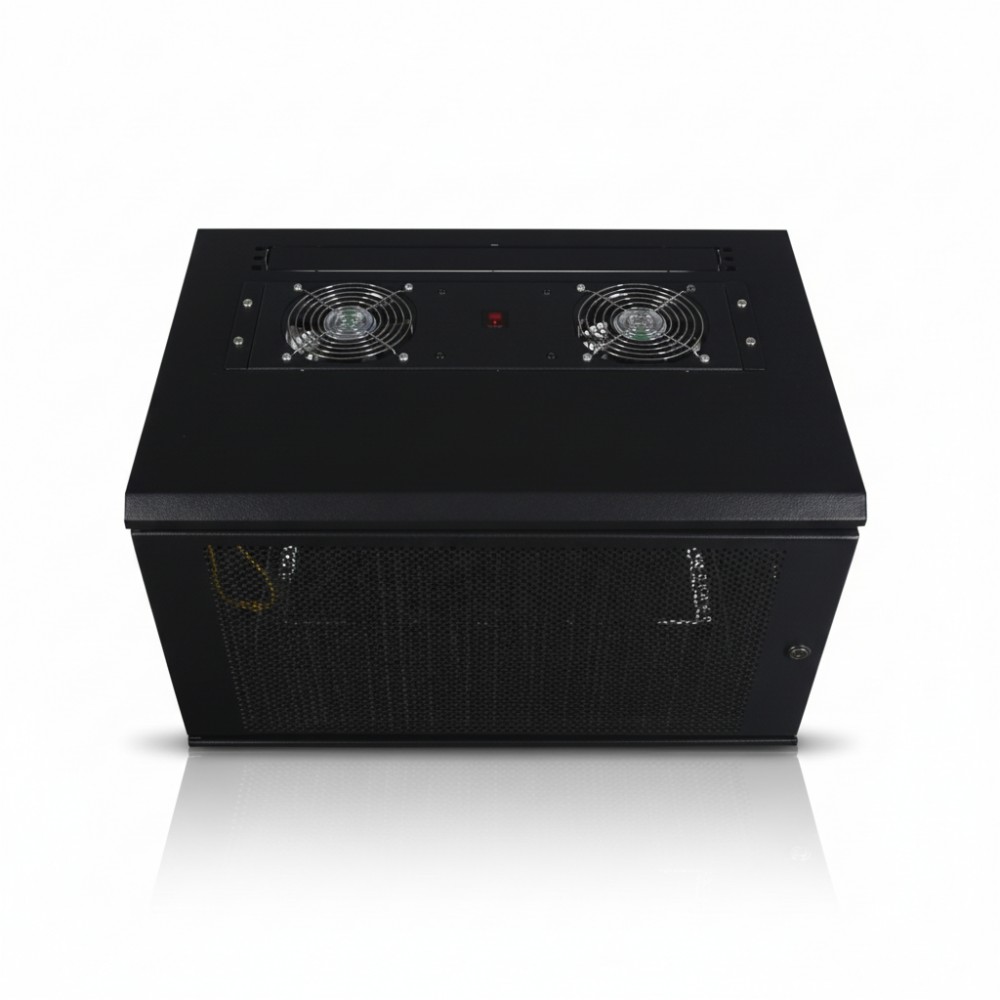

APC AR8213 NetShelter WX Fan Module View larger

APC AR8213 NetShelter WX Fan Module

AR8213

New

The APC AR8213 is a 115 V rooftop fan module for NetShelter WX enclosures
×




Detailed Specifications

APC AR8213 NetShelter WX Fan Module

Overview

The APC AR8213 is a rooftop fan module designed for NetShelter WX enclosures to improve airflow and thermal management in power-dense rack deployments. It is installed at the top of the rack chassis and draws hot exhaust air upward, preventing internal recirculation. The fan module accepts 115 V AC input via IEC-C14 and integrates with standard rack mounting. It is commonly used in environments such as data centers, edge sites, or telecom closets where cooling performance and hot-spot mitigation are critical. With a compact form factor and UL-507 compliance, it complements other airflow accessories and helps maintain safe operating temperatures for installed equipment.

Key Features

  • 115 V AC rooftop fan module

  • Mounts on top of NetShelter WX enclosures

  • UL-507 certified for safety

  • Compact 1.7 in height module

  • RoHS and REACH compliant

  • 2-year manufacturer warranty

Technical Specifications

SpecificationValue
Brand APC (Schneider Electric)
Part Number AR8213
Product Type NetShelter WX Rooftop Fan Module
Nominal Input Voltage 115 V AC
Input Frequency 60 Hz
Input Connection IEC-320 C14
Height (max) 1.7 in (43 mm)
Width (max) 19.0 in (483 mm)
Depth (max) 5.2 in (132 mm)
Net Weight 5.95 lb (2.7 kg)
Shipping Weight 6.6 lb (2.99 kg)
Color Black
Approvals / Certification UL 507
Warranty 2 years (against manufacturer defects)
Environmental Compliance RoHS, REACH
