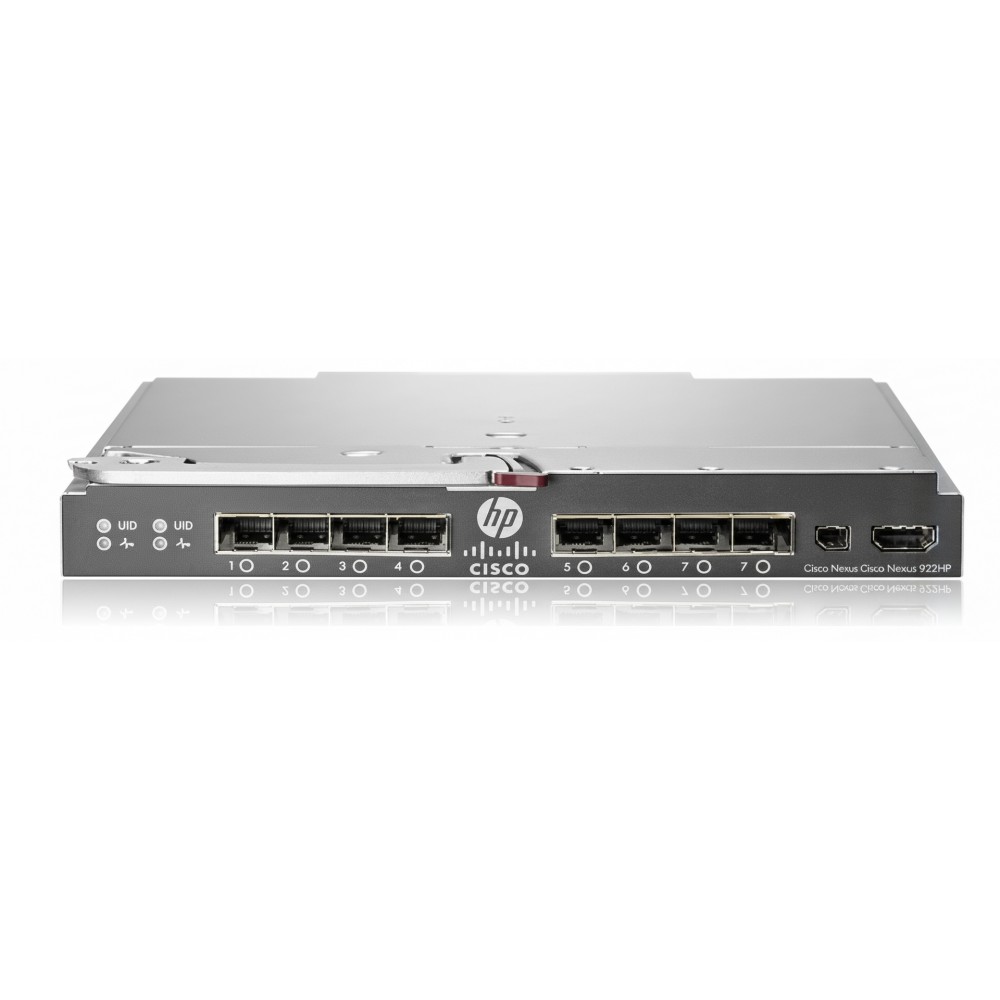

HP 641146-B21 - Fabric Extender Module for BladeSystem
Overview :
The HP 641146-B21 is a fabric extender module designed for use in HP BladeSystem c-Class enclosures, intended for engineers and networking professionals integrating server blades with a upstream switch fabric. It provides high-density internal downlinks from blade servers and high-speed external uplinks into a parent switching chassis, thereby extending the network fabric into the blade enclosure. This module fits in the server edge (blade enclosure) and connects to a parent Cisco Nexus series switch, making it suitable for data-center blade-environments rather than standard campus or branch wiring closets. Because it behaves as a remote line card to the parent switch, it simplifies management by leveraging the parent switch's control plane. As such it is typically deployed in mid-to-large scale enterprise or service-provider blade-infrastructure where consolidation and unified management are required.
Key Features :
16 server downlink ports auto-negotiating 1/10 Gb
Eight external 10 Gb uplinks for fabric interconnect
Support for copper twin-ax and optical SFP+ uplinks
Managed entirely through the parent Nexus switch fabric
Compatible with HP BladeSystem c-Class enclosures
Specifications
| Specification | Value |
|---|
| Brand | HP |
| Part Number | 641146-B21 |
| Product Type | Fabric Extender Module |
| Server Downlink Ports | 16 internal 1/10 Gb downlinks |
| External Uplink Ports | 8 external 10 Gb uplinks |
| Supported Uplink Media | Twin-ax copper (.5/1/3/5/7/10 m) and 10GBASE-SR/LR optics |
| Form Factor Dimensions | 10.5″ (L) × 7.5″ (W) × 1.1″ (H) |
| Weight | 2.8 lbs |
| Operating Temperature | 50-104 °F (10-40 °C) |
| Storage Temperature | -40-140 °F (-40-60 °C) |
| Operating Humidity | 10 %‐95 % non-condensing |
| Power Consumption | 72 W max (≈12 V @ 6 A) |
| Compatibility | HP BladeSystem c-Class, Cisco Nexus 5000/6000/7000 family |
| Management Interface | SNMP v1/v2/v3, XML (NETCONF), CLI |
| Protocol Support | Ethernet, FCoE, iSCSI, Data Center Bridging (DCB) |
| Compliance | UL/CSA 60950-1, IEC 60950-1, FCC Part 15 Class A |
