Netgear EPS130W-100NAS 130W External Power Supply, 54V 2.4A, 110-240V, 50/60Hz View larger

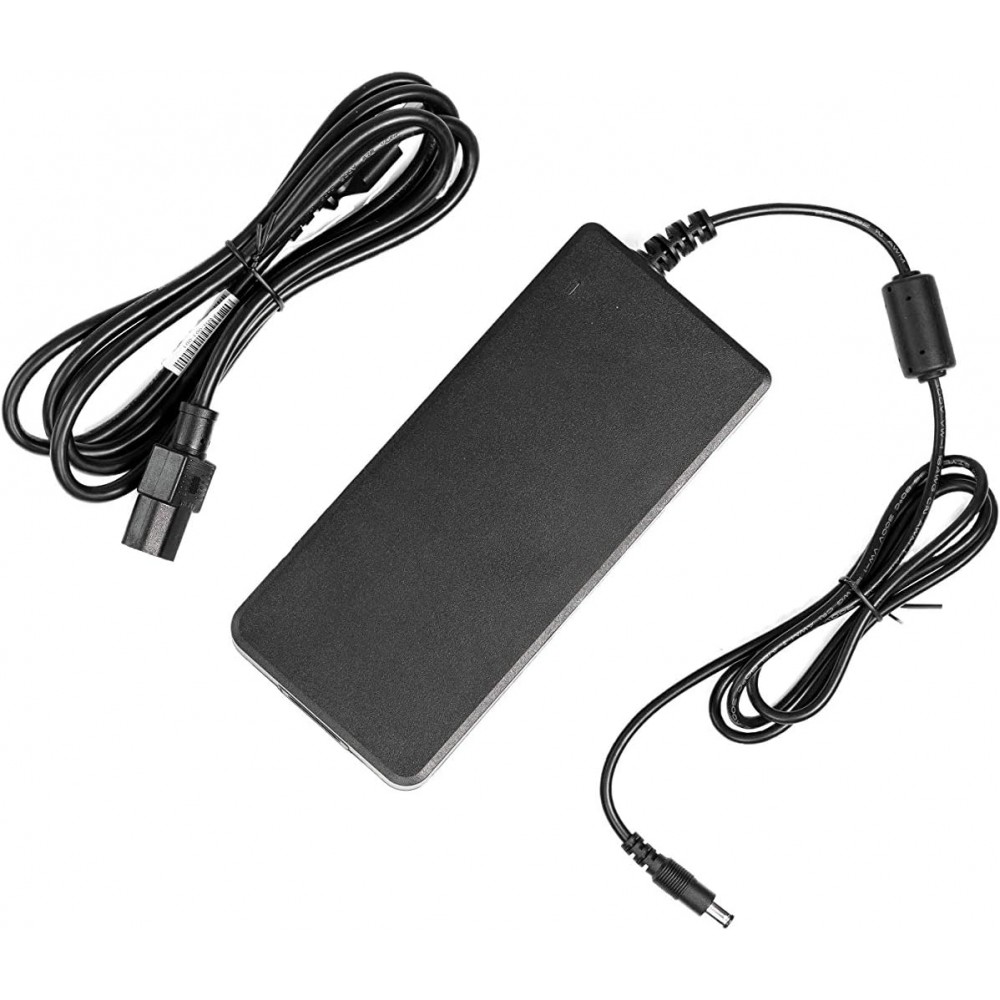

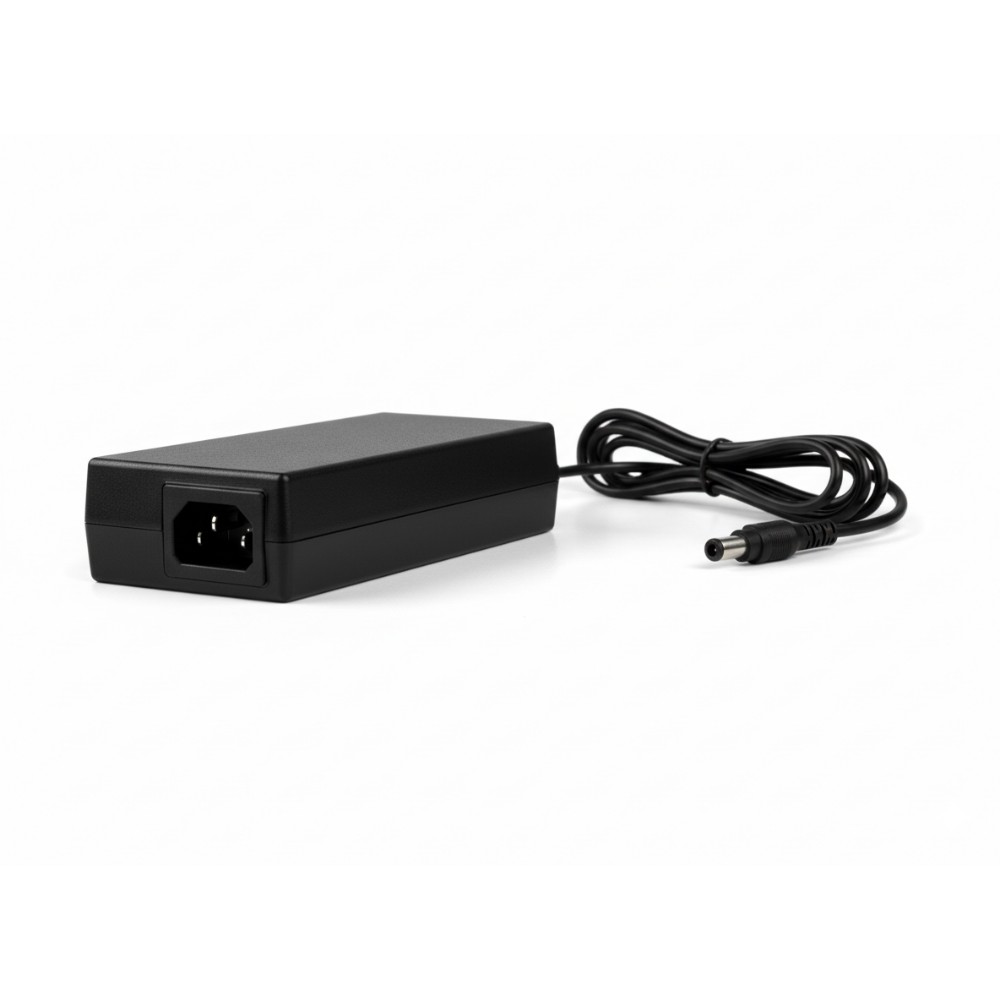

Netgear EPS130W-100NAS External power Adapter

New

130 W external PoE power supply
×




  • New

Detailed Specifications

Netgear EPS130W-100NAS – External PoE Power Supply

Overview :

This is a 130 W external supply unit from Netgear, used to boost the PoE budget on compatible switches. Engineers use this when the built-in power budget of the switch is insufficient for added PoE devices. It offers 54 V output and supports flexible PoE allocations for connected Ethernet switches. It is deployed in wiring closets, edge closets, or intermediate distribution rooms to supplement power capacity. It integrates transparently with supported Netgear switches using their flexible PoE technology.

Key Features :

  • 130 W output to expand switch PoE budget

  • 54 V DC output at up to 2.4 A

  • Enables additional 115–123 W usable PoE output

  • Protection: over-voltage, over-current, short-circuit

Specifications :

SpecificationValue / Detail
Brand Netgear
Part Number EPS130W-100NAS
Product Type External PoE Power Supply
Output Power 130 W
Output Voltage 54 V DC
Maximum Output Current 2.4 A
Input Voltage Range 110–240 V AC, 50/60 Hz
Usable PoE Power to Switch 115 W to 123 W (for compatible switches)
Warranty 2 years (limited)
