URL SLUG buffalo-hd-qh16tu3r5-drivestation-quad-16tb-external-hard-drive PRODUCT TITLE BUFFALO HD-QH16TU3R5 DriveStation Quad 16TB 4-Bay External Hard Drive SHORT DESCRIPTION BUFFALO HD-QH16TU3R5 DriveStation Quad 16TB external storage with four 4TB NAS-grade HDDs and RAID support. LONG DESCRIPTION

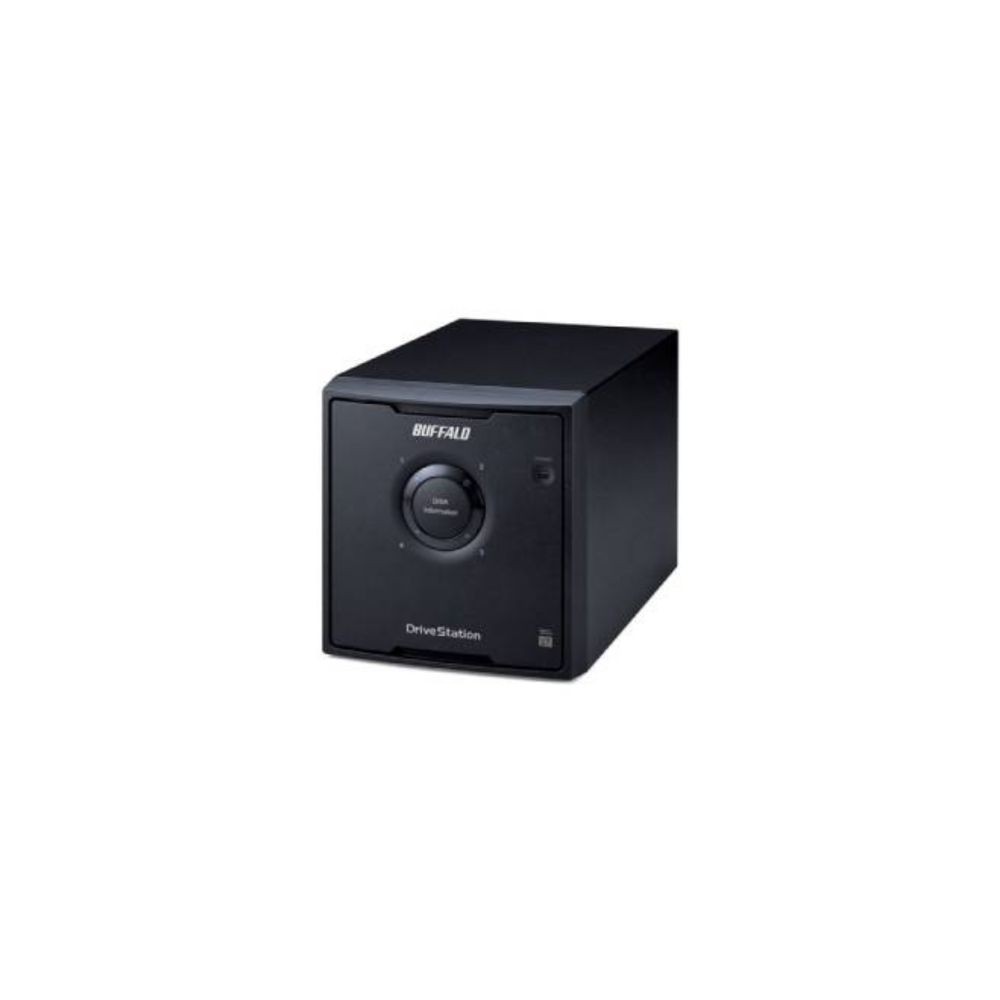

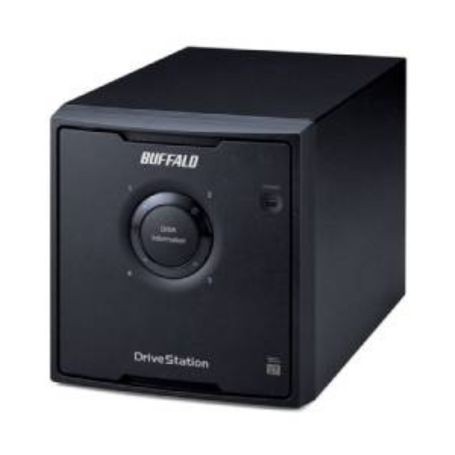

The BUFFALO HD-QH16TU3R5 is a 16TB DriveStation Quad external storage system equipped with four 4TB NAS-grade hard drives. The four-drive design supports multiple storage modes, including RAID 0, RAID 1, RAID 5, RAID 10, and JBOD, allowing the unit to be configured according to the required storage arrangement.
Four-Drive External Storage
The HD-QH16TU3R5 contains four internal SATA hard drives, with each drive providing 4TB of capacity for a total installed capacity of 16TB. Buffalo identifies the internal drives as NAS-grade HDDs and provides support for several RAID configurations as well as JBOD operation.
RAID and Storage Modes
The DriveStation Quad supports RAID 0, RAID 1, RAID 5, RAID 10, and JBOD. These modes provide different ways to organize the four internal drives for storage capacity, redundancy, or performance. The appropriate configuration depends on the intended storage requirements and how the connected system will be used.
USB 3.0 Connectivity
The HD-QH16TU3R5 connects to a host computer through USB and supports USB 3.0 as well as USB 2.0. The USB 3.0 interface provides a maximum specified transfer rate of 5Gbps, while USB 2.0 compatibility allows connection to systems equipped with the older interface.
Key Features
- 16TB total capacity using four 4TB NAS-grade hard drives
- RAID 0, RAID 1, RAID 5, RAID 10, and JBOD storage modes
- USB 3.0 / USB 2.0 connectivity with one USB Type-A port
- Four internal SATA 3Gbps hard drives
- Desktop external storage system with AC power supply
Typical Applications
- High-capacity desktop file storage
- Centralized external storage for workstations and office systems
- Backup storage where a multi-drive configuration is required
- RAID-based storage for supported professional and business workflows
DC Supplies Product Note
The HD-QH16TU3R5 is configured with four 4TB drives rather than a single 16TB hard disk. This matters when selecting the unit for RAID because the four-drive architecture enables RAID 5 and RAID 10 in addition to RAID 0, RAID 1, and JBOD.
Specifications
| Specification | Details |
|---|
| Brand | BUFFALO |
| Part Number | HD-QH16TU3R5 |
| Product Series | DriveStation Quad |
| Product Type | 4-Bay External Hard Drive Storage |
| Total Capacity | 16TB |
| Number of Internal Drives | 4 |
| Internal Drive Capacity | 4TB each |
| Hard Drive Type | NAS-grade HDDs |
| Internal Drive Interface | SATA 3Gbps |
| Supported RAID | RAID 0, RAID 1, RAID 5, RAID 10, JBOD |
| External Interface | USB 3.0 / USB 2.0 |
| USB Connector | Type-A |
| USB Ports | 1 |
| Maximum USB 3.0 Transfer Rate | 5Gbps |
| Power Supply | AC 100–240V, 50/60Hz |
| Maximum Power Consumption | 90W |
| Operating Temperature | 41–95°F (5–35°C) |
| Operating Humidity | 20–80% non-condensing |
| Dimensions | 9.17 x 5.87 x 6.06 in. |
| Weight | 12.13 lbs |
| Warranty | 3 years |
FAQs
What is the BUFFALO HD-QH16TU3R5?
The HD-QH16TU3R5 is a 16TB DriveStation Quad external storage system containing four 4TB NAS-grade hard drives.
How many hard drives are included in the HD-QH16TU3R5?
The unit contains four internal 4TB hard drives, providing a total installed capacity of 16TB.
Which RAID modes does the HD-QH16TU3R5 support?
The DriveStation Quad supports RAID 0, RAID 1, RAID 5, RAID 10, and JBOD.
What USB interface does the HD-QH16TU3R5 use?
It provides one USB Type-A connection supporting USB 3.0 and USB 2.0. USB 3.0 has a maximum specified transfer rate of 5Gbps.
Is the HD-QH16TU3R5 suitable for RAID 5?
Yes. Buffalo specifically lists RAID 5 as one of the supported operating modes for the DriveStation Quad.
