Detailed Specifications
Overview

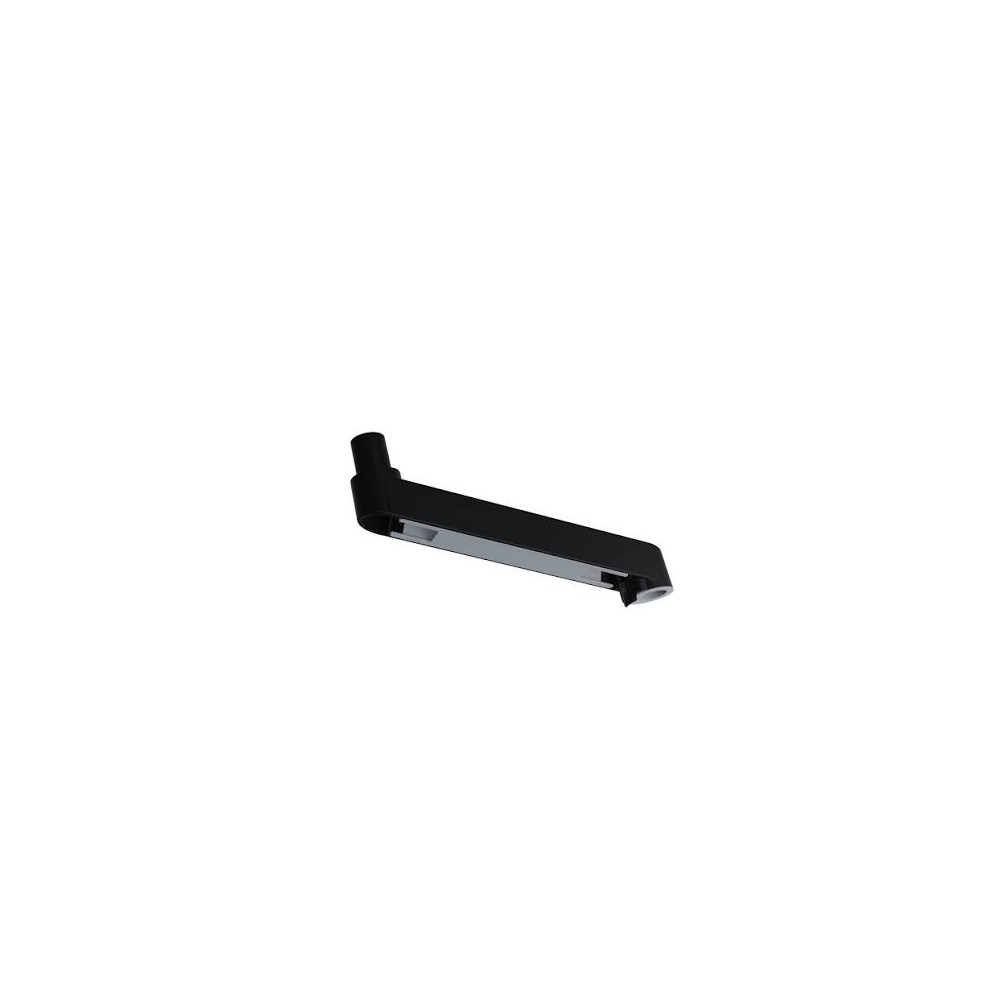

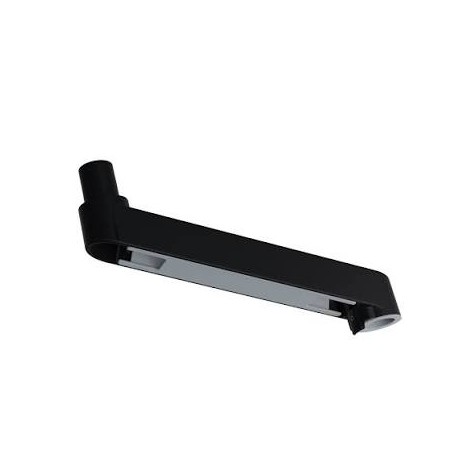

The Ergotron 98-731-292 is a black LX Pro extension arm accessory designed to increase the reach and positioning flexibility of compatible Ergotron LX Pro monitor and keyboard arms. It adds approximately 9 inches (23 cm) of extension and an additional rotation point.
Adjustment and Cable Management
The extension adds another pivot point for positioning a mounted display or supported equipment. Integrated cable management routes cables along the arm to help keep the workspace organized. An integrated rotation stop can limit side-to-side movement to 180 degrees.
Compatibility
This accessory is designed for compatible Ergotron LX Pro desk monitor arms, wall monitor arms, and keyboard arms. It is not compatible with the legacy Ergotron LX series or other product lines. Only one additional extension is recommended per arm, and adding an extension may reduce the supported load capacity.
Key Features
- Adds 9 inches (23 cm) of reach
- Provides an additional rotation point
- Black aluminum construction
- Integrated cable management
- Rotation stop can limit movement to 180 degrees
DC Supplies Product Note
Check the exact arm model before ordering. This accessory is intended for the LX Pro family, not legacy LX arms. An additional extension can reduce the overall load capacity, and Ergotron does not recommend it for multi-monitor configurations.
Specifications
| Brand | Ergotron |
|---|
| Part Number / MPN | 98-731-292 |
|---|
| Product Type | Monitor Arm Extension |
|---|
| Product Series | LX Pro |
|---|
| Color | Black / Matte Black |
|---|
| Material | Aluminum |
|---|
| Extension Length | 9 in (23 cm) |
|---|
| Maximum Load Capacity | Up to 22 lb (10 kg), subject to the complete arm configuration |
|---|
| Rotation Stop | Adjustable to limit side-to-side movement to 180 degrees |
|---|
| Cable Management | Integrated |
|---|
| Supported Equipment | Compatible LX Pro monitor and keyboard arms |
|---|
| Multi-Monitor Use | Not recommended |
|---|
| Warranty | 10 years |
|---|
| UPC | 698833092714 |
|---|
| Product Weight | 1 lb (approximately 0.45 kg) |
|---|
Frequently Asked Questions
How much additional reach does the extension provide?
It adds approximately 9 inches (23 cm) of reach and introduces another rotation point.
Does the 98-731-292 fit the original Ergotron LX arm?
No. It is designed for compatible LX Pro components and is not compatible with the legacy LX product line.
Can this extension be used with a multi-monitor setup?
Ergotron does not recommend this extension for multi-monitor configurations. Additional extension can also reduce the load capacity of the complete arm assembly.
Is the monitor arm included?
No. The 98-731-292 is an extension accessory. The compatible arm must be obtained separately.
