Eaton U324-006-DSK2 Tripp Lite 2 Port USB 3 0 SuperSpeed Extension Cable 6 ft

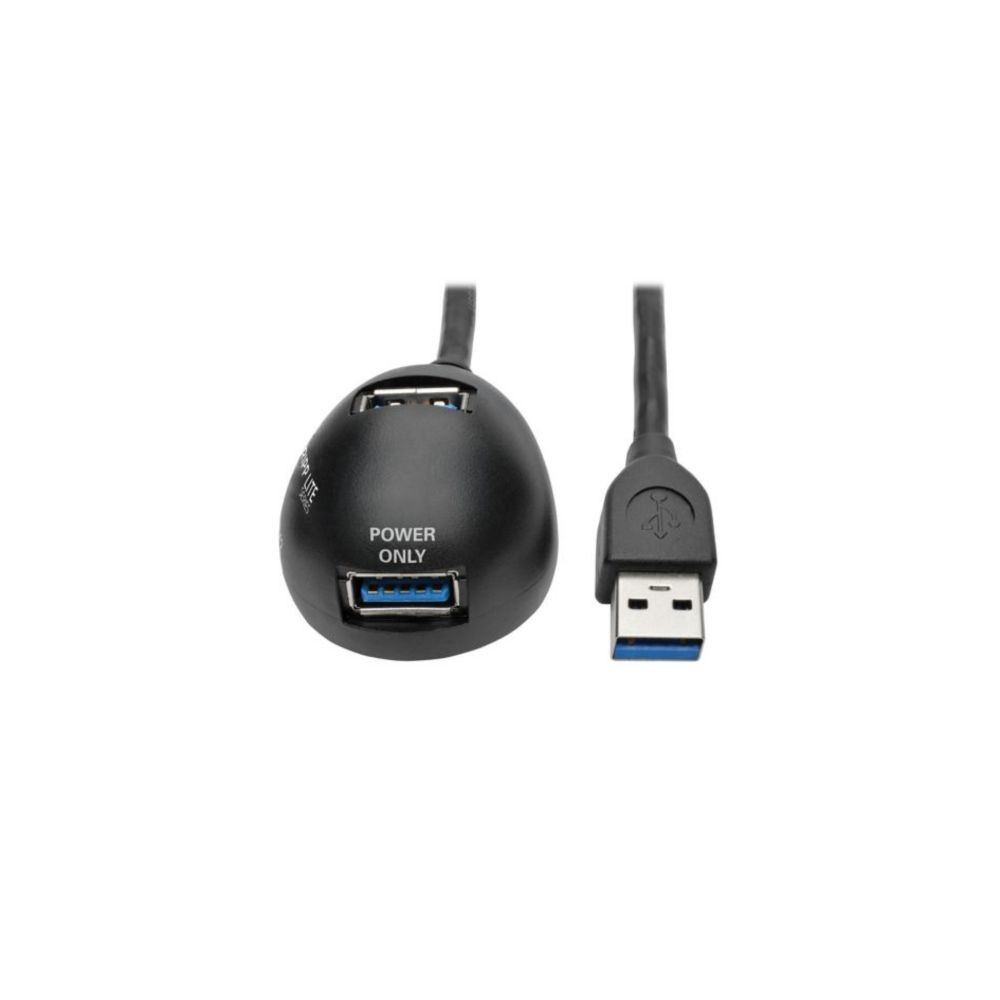

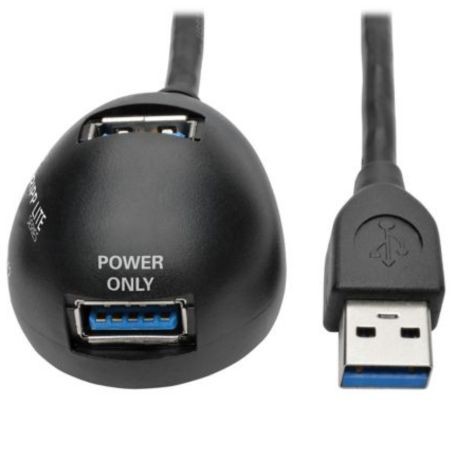

The Eaton Tripp Lite U324-006-DSK2 is a 2-port USB 3.0 SuperSpeed desktop extension cable that extends an existing USB-A connection up to 6 ft (1.83 m). It provides two accessible USB-A female ports at the desktop end, allowing a USB port that may be located behind a computer or monitor to be positioned within easier reach.
Two-Port Desktop Connectivity
The U324-006-DSK2 uses one USB-A male connector to connect to an existing USB-A port and provides two USB-A female ports at the desktop hub. One port supports USB 3.0 data and power, while the second port is dedicated to power only. This configuration provides a convenient way to relocate USB connectivity to a nearby desktop location.
USB 3.0 Performance
The cable supports USB 3.2 Gen 1 and USB 3.0 SuperSpeed data transfer rates up to 5 Gbps. The interface is bi-directional, and the cable is backward compatible with previous USB generations.
Power and Construction
The U324-006-DSK2 provides up to 10W (5V/2A) of power to connected devices. Eaton specifies a black PVC jacket, 5.5 mm cable outer diameter, VW-1 cable jacket rating, and over-current protection. The desktop hub uses a padded non-sliding base for placement on a desk or other convenient surface.
Key Features
- 2-port USB 3.0 SuperSpeed desktop extension cable
- 6 ft (1.83 m) cable length
- One USB-A male connector
- Two USB-A female ports
- One USB 3.0 data/power port
- One power-only USB-A port
- Data transfer rates up to 5 Gbps
- Up to 10W (5V/2A) power provided to connected devices
- Double-shielded protection against EMI/RFI line noise
- Black padded non-sliding desktop base
- Backward compatible with previous USB generations
- Over-current protection
- Passive cable design
- Lifetime limited worldwide warranty
Typical Applications
- Moving an inaccessible rear USB-A port to a convenient desktop location
- Connecting external USB hard drives and storage devices
- Connecting USB flash drives and other USB-A peripherals
- Connecting digital cameras and compatible USB-A devices
- Providing an accessible two-port USB connection beside a keyboard or monitor
- Desktop workstations where additional USB-A access is needed
DC Supplies Product Note
The key distinction of the U324-006-DSK2 is that its two USB-A female ports do not have identical functions. One port supports both USB 3.0 data and power, while the second is power-only. This makes the model useful when desktop access to both data connectivity and additional device power is needed, but the second port should not be selected when data transfer is required from both ports.
Specifications
| Specification | Details |
|---|
| Manufacturer | Eaton Tripp Lite |
| Part Number | U324-006-DSK2 |
| Product Type | USB 3.0 Desktop Extension Cable |
| Cable Length | 6 ft (1.83 m) |
| Host Connector | USB-A Male |
| Desktop Ports | 2 x USB-A Female |
| Data/Power Port | 1 x USB-A Female, USB 3.0 data and power |
| Power-Only Port | 1 x USB-A Female |
| USB Specification | USB 3.2 Gen 1 / USB 3.0 |
| Maximum Data Transfer Rate | Up to 5 Gbps |
| Power Output | 10W (5V/2A) |
| Cable Type | Passive |
| Cable Color | Black |
| Cable Material | PVC |
| Cable Outer Diameter | 5.5 mm |
| Cable Jacket Rating | VW-1 |
| Shielding | Double-shielded |
| Contact Plating | Gold |
| Connector Plating | Nickel |
| Over-Current Protection | Yes |
| Operating Temperature | 32° to 104°F (0° to 40°C) |
| Storage Temperature | 14° to 131°F (-10° to 55°C) |
| Operating Humidity | 0% to 90% RH, non-condensing |
| Compliance | CE, RoHS, REACH, FCC |
| Warranty | Lifetime limited warranty, worldwide |
FAQs
What is the Eaton U324-006-DSK2?
The U324-006-DSK2 is a 6-ft, 2-port USB 3.0 SuperSpeed desktop extension cable that relocates an existing USB-A connection to a more accessible desktop position.
How many USB ports does the U324-006-DSK2 provide?
It provides two USB-A female ports at the desktop hub.
Do both USB ports support data transfer?
No. One port supports USB 3.0 data and power, while the second port is power-only.
What USB speed does the U324-006-DSK2 support?
It supports USB 3.0 and USB 3.2 Gen 1 data transfer rates up to 5 Gbps.
How much power can the U324-006-DSK2 provide?
Eaton specifies up to 10W at 5V/2A for connected devices.
How long is the U324-006-DSK2?
The extension cable is 6 ft (1.83 m) long.
Is the U324-006-DSK2 shielded?
Yes. Eaton specifies double-shielded protection against EMI/RFI line noise.
