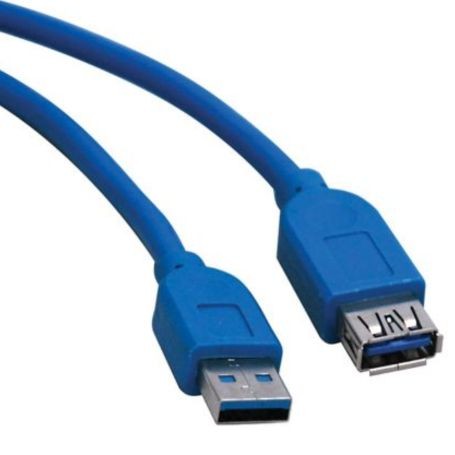

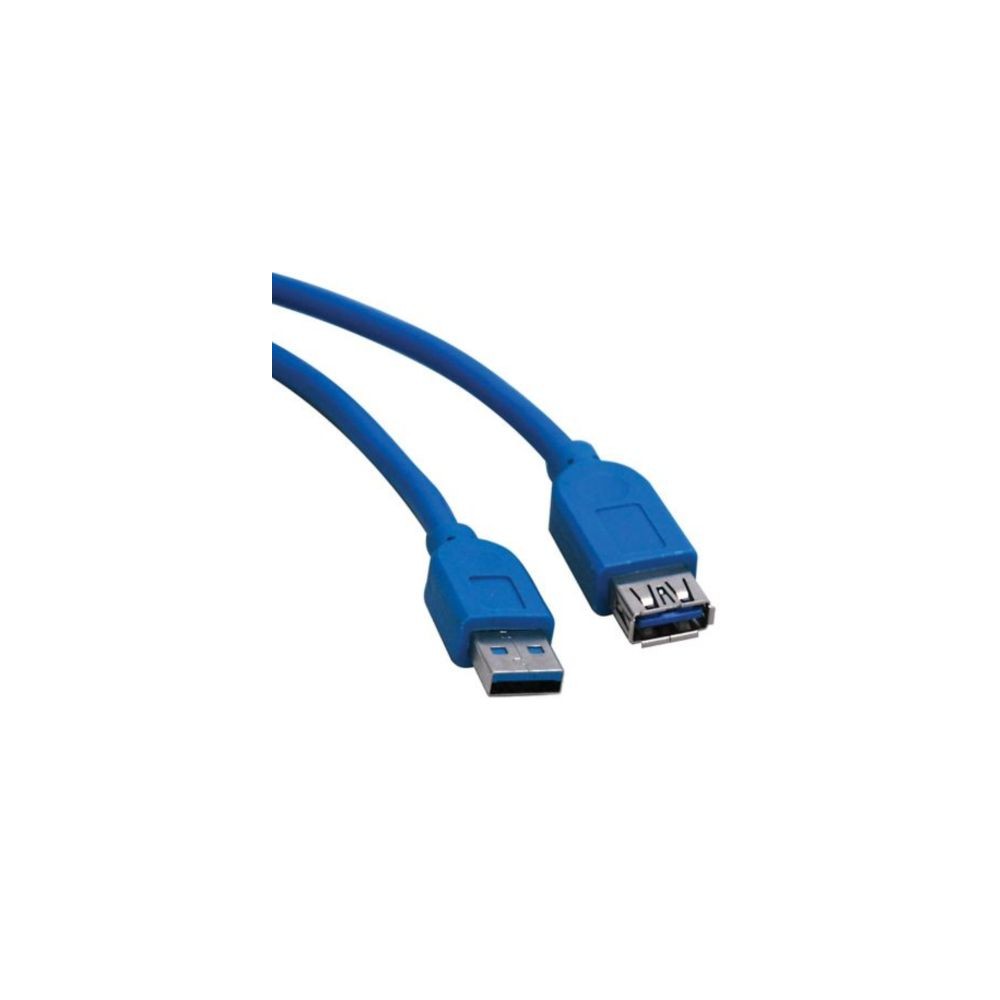

Eaton U324-010 Tripp Lite USB 3 0 SuperSpeed Extension Cable 10 ft A M F
The Eaton U324-010 is a 10 ft USB 3.0 SuperSpeed extension cable with a USB-A male connector on one end and a USB-A female receptacle on the other. It extends an existing USB connection while supporting data transfer rates up to 5 Gbps when connected equipment supports USB 3.0.
USB 3.0 SuperSpeed Extension
With a 10 ft (3.05 m) length, the U324-010 provides additional reach between a computer or host USB port and an existing USB cable or peripheral. The passive cable uses a bidirectional USB 3.0 data interface and is backward compatible with USB 2.0 devices.
Key Features
- 10 ft (3.05 m) USB 3.0 SuperSpeed extension cable
- USB-A male to USB-A female configuration
- Supports data transfer rates up to 5 Gbps
- Backward compatible with USB 2.0 devices
- Blue PVC jacket with VW-1 rating
DC Supplies Product Note
The 10 ft length makes the U324-010 useful when an existing USB-A cable needs additional reach without replacing the original cable. For maximum 5 Gbps performance, the connected host, peripheral, and existing USB cable should all support USB 3.0.
Typical Applications
- Extending USB connections between computers and peripherals
- External storage and USB data devices
- Workstations and office equipment
- Servers and data center equipment
- Home theater and other USB-enabled installations
Specifications
| Brand | Eaton / Tripp Lite |
|---|
| Part Number / MPN | U324-010 |
|---|
| Product Type | USB 3.0 SuperSpeed Extension Cable |
|---|
| Cable Type | Passive |
|---|
| USB Specification | USB 3.0 / USB 3.x |
|---|
| Maximum Data Transfer Rate | Up to 5 Gbps |
|---|
| Connector A | USB 3.0 Type-A Male |
|---|
| Connector B | USB 3.0 Type-A Female |
|---|
| Cable Length | 10 ft (3.05 m) |
|---|
| Cable Outer Diameter | 5.5 mm |
|---|
| Jacket Material | PVC |
|---|
| Jacket Rating | VW-1 |
|---|
| Jacket Color | Blue |
|---|
| Connector Plating | Nickel |
|---|
| Contact Plating | Gold |
|---|
| Connector Style | Straight |
|---|
| Operating Temperature | 14°F to 140°F (-10°C to 60°C) |
|---|
| Storage Temperature | -4°F to 185°F (-20°C to 85°C) |
|---|
| Operating Humidity | 10% to 85% RH, non-condensing |
|---|
| UPC | 037332158093 |
|---|
| Compliance | CE, FCC, RoHS, REACH |
|---|
| Warranty | Lifetime limited warranty |
|---|
Package Contents
U324-010 10 ft USB 3.0 SuperSpeed A-male-to-A-female extension cable.
Compatibility
The U324-010 is intended for computers and peripherals with USB 3.0 capability. USB 2.0 devices can also be used through the cable, but USB 3.0 speeds require compatible USB 3.0 equipment and cabling.
Frequently Asked Questions
What connectors does the U324-010 have?
It has one USB 3.0 Type-A male connector and one USB 3.0 Type-A female connector.
How long is the U324-010?
The cable is 10 ft (3.05 m) long.
What data speed does it support?
The U324-010 supports USB 3.0 SuperSpeed data transfer rates up to 5 Gbps.
Can it be used with USB 2.0 equipment?
Yes. The cable is backward compatible with USB 2.0 devices, although the connection operates according to the capabilities of the connected equipment.
Is the U324-010 an active or passive cable?
The U324-010 is a passive USB extension cable.
