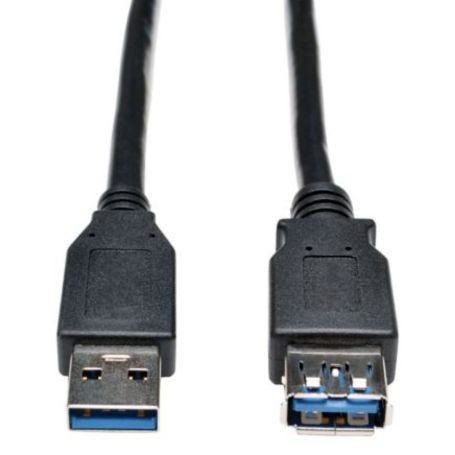

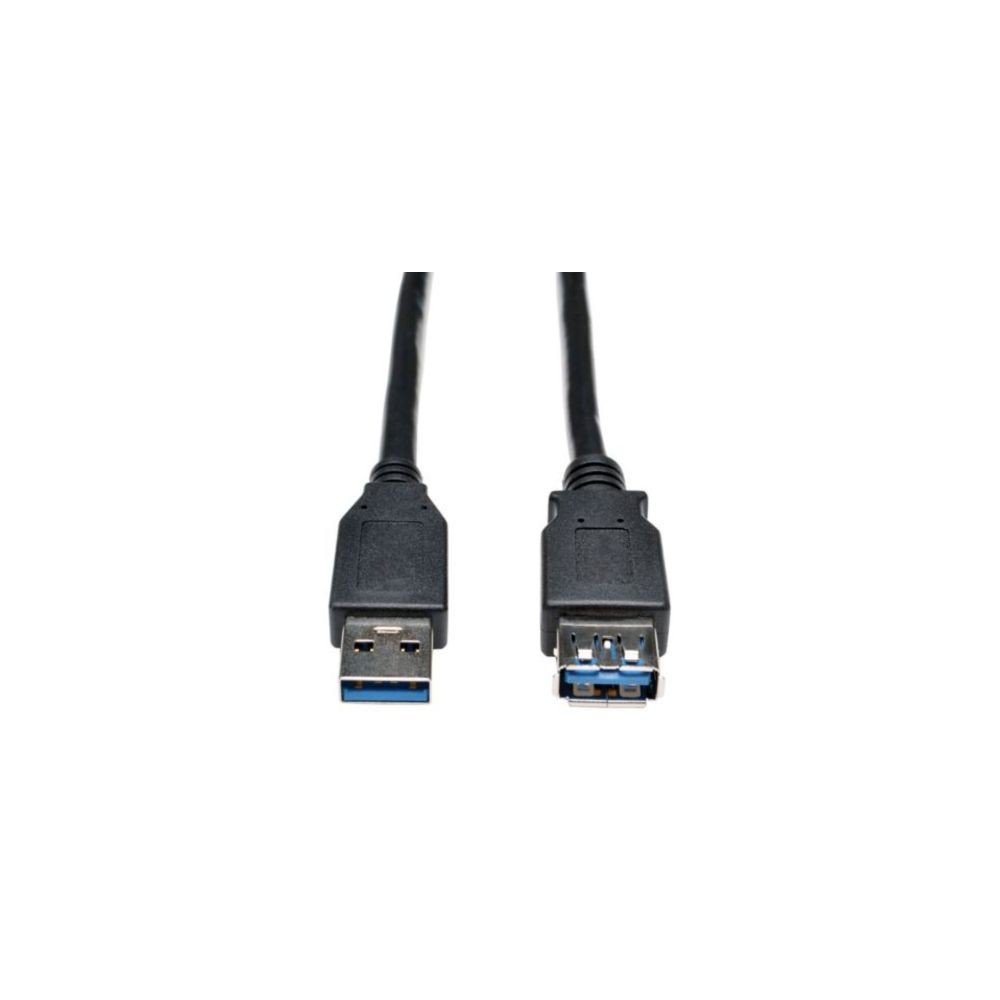

Eaton U324-003-BK Tripp Lite USB 3 0 Extension Cable 3 ft A Male to Female
The Eaton Tripp Lite U324-003-BK is a 3-foot passive USB 3.0 SuperSpeed extension cable with a USB-A male connector and USB-A female connector. It adds 3 feet of reach to an existing USB connection, providing additional flexibility for positioning computers, external drives, printers, keyboards, and other USB-A equipment.
The cable supports USB 3.0 data transfer rates up to 5 Gbps and is backward compatible with previous USB generations. The USB-A male-to-female configuration makes it an extension cable rather than a standard device-to-device USB cable.
Key Features
- USB 3.0 SuperSpeed extension cable with data rates up to 5 Gbps
- USB-A male-to-female configuration for extending an existing USB connection
- 3 ft (0.91 m) length adds reach without requiring a longer replacement cable
- Backward compatible with previous USB generations
- Passive cable with PVC construction and VW-1-rated jacket
DC Supplies Product Note
The U324-003-BK is useful when an existing USB-A cable is slightly too short for the intended equipment placement. Because it is specifically a male-to-female extension, it can add 3 feet without replacing the original USB cable, provided the connected equipment and cable support the required USB 3.0 capability.
Applications
- Extend USB connections between computers and peripherals
- Connect computers or servers to external USB hard drives
- Extend connections to USB-A keyboards and other peripherals
- Provide additional reach for USB equipment in workspaces and data centers
- Extend USB connections in home-theater and desktop installations
Specifications
| Specification | Details |
|---|
| Brand | Eaton / Tripp Lite |
| Part Number / MPN | U324-003-BK |
| Product Type | USB 3.0 Extension Cable |
| USB Specification | USB 3.0 SuperSpeed |
| Maximum Data Rate | Up to 5 Gbps |
| Cable Type | Passive Extension Cable |
| Connector A | USB-A Male |
| Connector B | USB-A Female |
| Connector Style | Straight |
| Connector Plating | Nickel |
| Cable Length | 3 ft (0.91 m) |
| Cable Length | 36 in |
| Cable Outer Diameter | 5.5 mm |
| Jacket Material | PVC |
| Jacket Rating | VW-1 |
| Jacket Color | Black |
| Backward Compatibility | Previous USB generations |
| Operating Temperature | 32° to 122°F (0° to 50°C) |
| Storage Temperature | -13° to 185°F (-25° to 85°C) |
| Relative Humidity | 15–85% |
| Packaging | Polybag |
| Compliance | RoHS, REACH |
| Warranty | Lifetime limited warranty |
| UPC | 037332224859 |
Package Contents
One Eaton Tripp Lite U324-003-BK USB 3.0 SuperSpeed USB-A male-to-female extension cable, 3 ft (0.91 m).
Compatibility
The U324-003-BK is designed for devices and existing cables equipped with USB-A connectors. USB 3.0 capability is required on the connected equipment and cable path to achieve USB 3.0 speeds up to 5 Gbps.
Frequently Asked Questions
What type of USB cable is the U324-003-BK?
It is a passive USB 3.0 SuperSpeed extension cable with USB-A male and USB-A female connectors.
How long is the U324-003-BK?
The cable is 3 ft (0.91 m), or 36 inches, long.
What data speed does it support?
It supports USB 3.0 SuperSpeed transfer rates up to 5 Gbps.
Is the U324-003-BK backward compatible?
Yes. Eaton states that the cable is backward compatible with previous USB generations.
Can it extend an existing USB-A cable?
Yes. Its USB-A male-to-female configuration is specifically designed to add 3 feet to an existing USB connection.
Is this cable active?
No. The U324-003-BK is specified as a passive USB extension cable.
