Eaton P562-001-45L Tripp Lite DVI-D Dual Link Extension Cable 1 ft 45 Left Angle M F

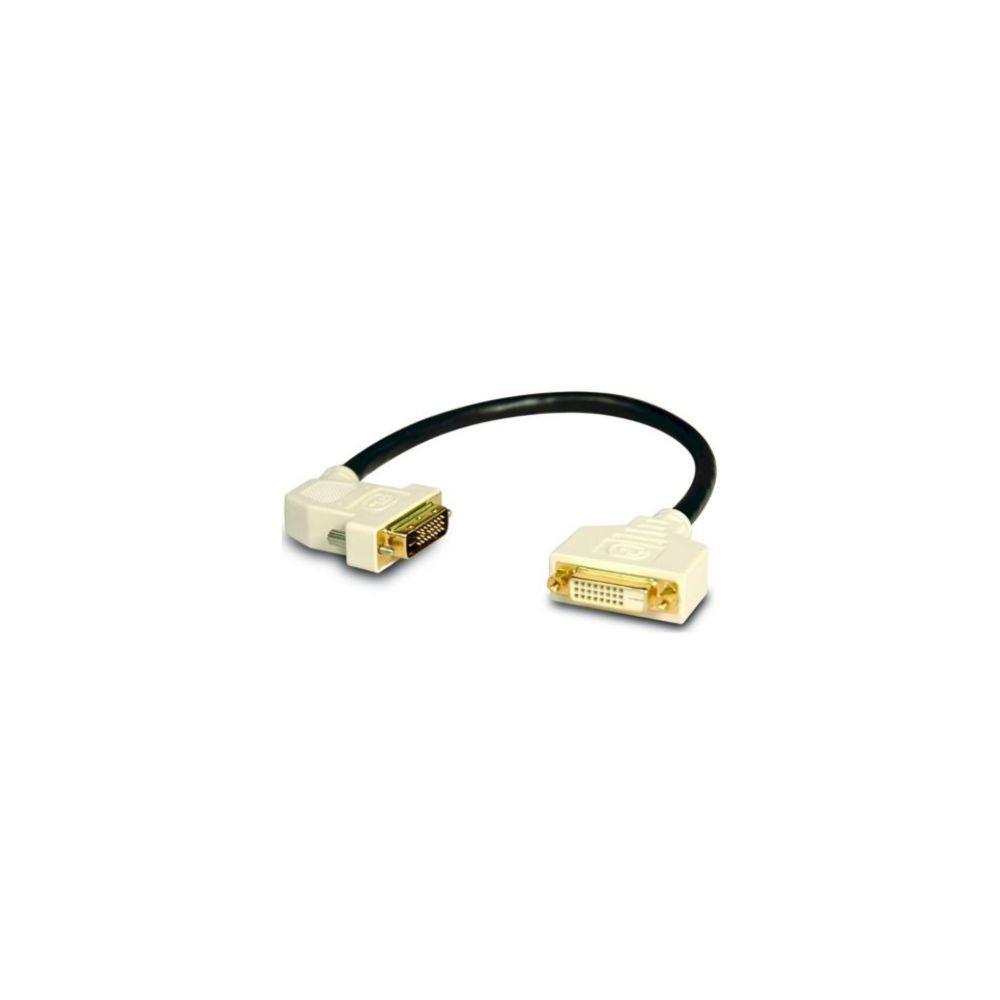

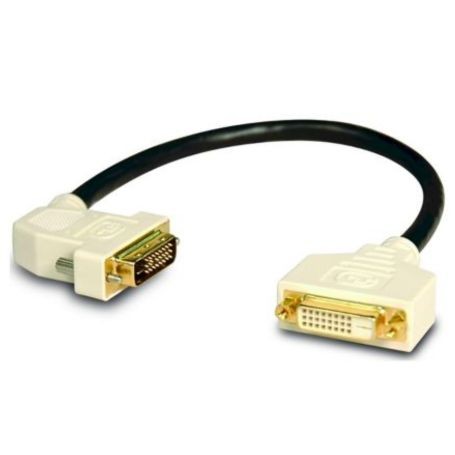

The Eaton P562-001-45L is a 1 ft DVI-D Dual Link extension cable designed for digital video connections where a standard straight DVI cable may be difficult to position. It features a DVI-D female connector on one end and a 45° left-angle DVI-D Dual Link male connector on the other.
The left-angle connector is designed for installations with limited clearance around a video card, monitor, or other DVI-equipped equipment. The cable supports both Single Link and Dual Link TMDS equipment and provides transmission speeds up to 9.9 Gbps.
45-Degree Left-Angle DVI Connection
The 45° left-angle male connector changes the cable exit direction compared with a conventional straight connector. This can help when equipment placement leaves limited room behind or beside a DVI connection.
Dual Link Digital Video
The P562-001-45L supports DVI Dual Link digital signaling and is compatible with equipment using Single or Dual TMDS links. It is intended for digital video connections to compatible DVI-D displays, computers, HDTV equipment, and projectors.
Shielded Molded Construction
The cable uses fully molded ends and foil/braid shielding for EMI/RFI protection. Gold-plated copper contacts provide the connection interface, while the passive design requires no external power.
Key Features
- 1 ft (0.31 m) DVI-D Dual Link extension cable
- DVI-D female to DVI-D male configuration
- 45° left-angle male connector for tight installation spaces
- Dual Link signaling up to 9.9 Gbps
- Double-shielded cable with gold-plated contacts
DC Supplies Product Note
The 45° left-angle male connector is the key installation feature of the P562-001-45L, providing a different cable exit direction that can reduce clearance problems around closely positioned DVI equipment.
Applications
- DVI-D monitor extensions
- Computer-to-display connections
- Digital CRT and flat-panel displays
- HDTV equipment with DVI interfaces
- DVI-equipped projectors
- Video cards installed in space-constrained locations
Specifications
| Specification | Details |
|---|
| Brand | Eaton / Tripp Lite |
| Part Number / MPN | P562-001-45L |
| Product Type | DVI-D Dual Link Extension Cable |
| Cable Length | 1 ft (0.31 m) |
| Connector 1 | DVI-D Dual Link Female |
| Connector 2 | DVI-D Dual Link Male |
| Male Connector Orientation | 45° Left Angle |
| Signal Type | Digital TMDS |
| Transmission | Dual Link |
| Maximum Signaling Rate | 9.9 Gbps |
| Cable Type | Passive |
| Shielding | Foil and braid |
| Connector Construction | Fully molded |
| Contact Material | Copper |
| Contact Plating | Gold |
| Jacket Material | PVC |
| Jacket Rating | VW-1 |
| Color | Black |
| Standards | DVI DDWG Standard |
| UPC | 037332131072 |
Frequently Asked Questions
What is the Eaton P562-001-45L?
It is a 1 ft DVI-D Dual Link extension cable with a female DVI-D connector and a 45° left-angle male DVI-D connector.
What is the purpose of the 45° connector?
The left-angle male connector changes the cable exit direction and is intended for installations where space around a DVI connection is limited.
Does the P562-001-45L support Dual Link DVI?
Yes. It supports Dual Link digital signaling with transmission speeds up to 9.9 Gbps.
Can it be used with Single Link DVI equipment?
Yes. The manufacturer specifies the cable for use with equipment supporting either Single or Dual TMDS links.
How long is the cable?
The cable is 1 ft (0.31 m) long.
Is the P562-001-45L shielded?
Yes. It uses foil and braid shielding for EMI/RFI protection.
