Detailed Specifications

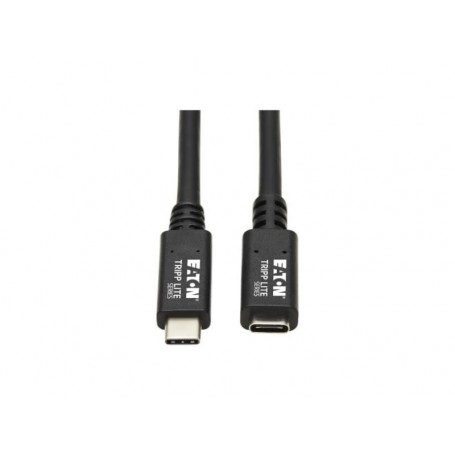

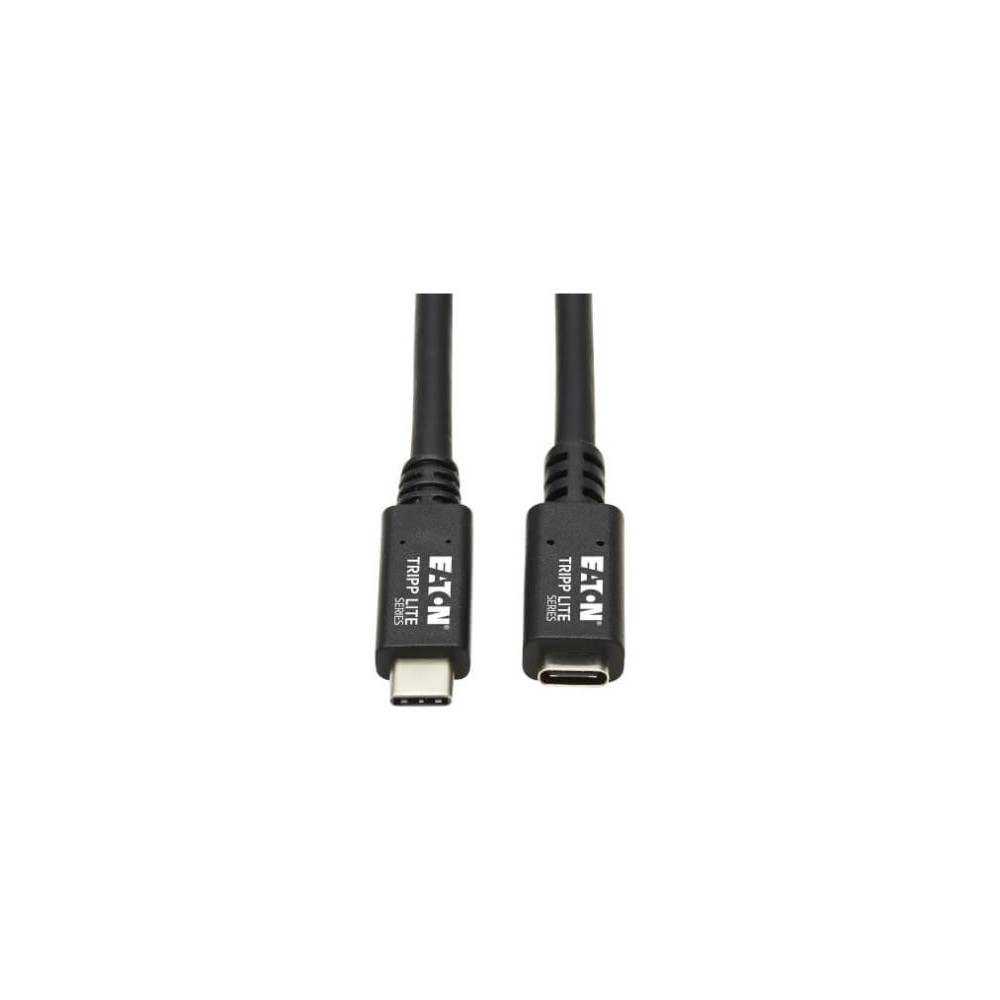

Eaton U421-006 6 ft USB-C Extension Cable Compatible Brand Tripp Lite
Overview :
The Eaton U421-006 is a TRIPP LITE by Eaton USB-C Extension Cable designed to extend the connection between two USB-C devices by 6 feet (1.83 m). It features a USB-C male connector on one end and a USB-C female connector on the other, allowing users to extend existing USB-C connections between computers, docking stations, hubs, external storage devices, chargers and other compatible equipment.
The cable supports USB 3.2 Gen 1 data transfer speeds up to 5 Gbps and provides USB Power Delivery (PD) up to 60W (20V/3A). It is compatible with USB-C and Thunderbolt 3 devices and is backward compatible with previous USB generations. The cable uses a passive design with a black PVC jacket.
Key Features :
- USB-C male-to-female extension cable
- Extends an existing USB-C connection by 6 ft. (1.83 m)
- Supports USB 3.2 Gen 1 data transfer speeds up to 5 Gbps
- Supports USB Power Delivery up to 60W (20V/3A)
- Compatible with USB-C and Thunderbolt 3 devices
- Passive USB cable design
- Plug-and-play operation with no software required
- Suitable for computers, laptops, docking stations, hubs and external storage devices
- USB-C male connector on Side A
- USB-C female connector on Side B
- Nickel-plated connectors and contacts
- Black PVC cable jacket
- VW-1 rated cable jacket
- RoHS and REACH compliant
- Lifetime limited warranty worldwide
Specifications :
| Specification | Details |
|---|
| Manufacturer | Eaton |
| Compatible Brand | Tripp Lite |
| Part Number | U421-006 |
| Product Type | USB-C Extension Cable |
| Cable Configuration | USB-C Male to USB-C Female |
| Side A Connector | USB-C Male |
| Side B Connector | USB-C Female |
| USB Specification | USB 3.2 Gen 1 |
| Maximum Data Transfer Rate | 5 Gbps |
| Cable Type | Passive |
| Cable Length | 6 ft. (1.83 m / 72 in.) |
| USB Power Delivery | Yes |
| Maximum Power | 60W |
| Power Rating | 20V / 3A |
| Technology | USB 3.x |
| Thunderbolt Compatibility | Thunderbolt 3 |
| Connector Plating | Nickel |
| Contact Plating | Nickel |
| Cable Jacket Material | PVC |
| Cable Jacket Color | Black |
| Cable Jacket Rating | VW-1 |
| Cable Outer Diameter | 5.2 mm |
| Operating Temperature | 32° to 113°F (0° to 45°C) |
| Storage Temperature | -40° to 158°F (-40° to 70°C) |
| Operating Humidity | 10% to 85% RH, non-condensing |
| Storage Humidity | 5% to 90% RH, non-condensing |
| Power Provided to Connected Device | 60W (20V/3A) |
| Compliance | RoHS, REACH |
| Packaging | Polybag |
