Detailed Specifications
Eaton U421-20N-G2-RA 20 USB-C Extension Cable USB 3.2 Gen 2 Right Angle Compatible Tripp Lite
Overview

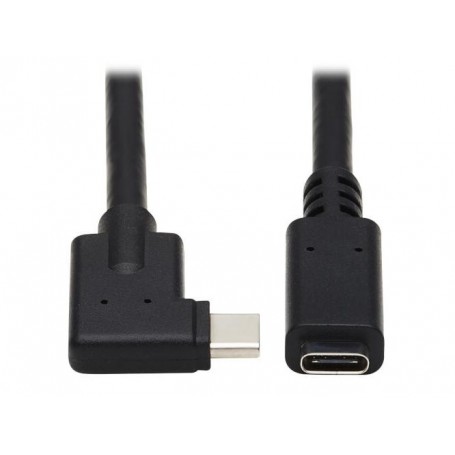

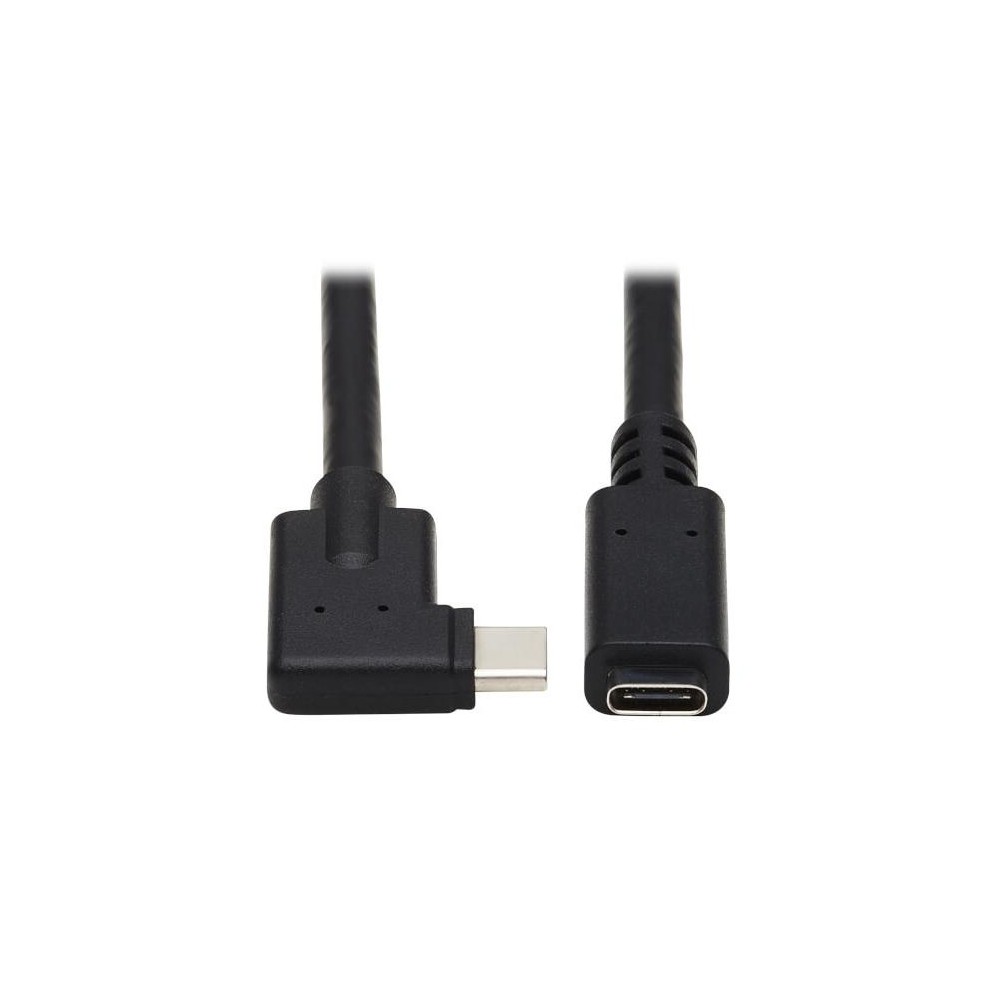

The Eaton U421-20N-G2-RA is a 20-inch (0.5 m) passive USB-C extension cable with a space-saving right-angle male connector. It supports USB 3.2 Gen 2 data transfer up to 10 Gbps and USB Power Delivery up to 60W (20V/3A). It is compatible with USB-C and Thunderbolt 3 devices.
Key Features
- USB-C male-to-female extension cable
- 20 in. (0.5 m) cable length
- USB 3.2 Gen 2 speeds up to 10 Gbps
- Right-angle USB-C male plug
- Thunderbolt 3 compatible
- Supports USB Power Delivery up to 60W
- 20V/3A power support
- Passive cable design
- Black PVC jacket with VW-1 rating
- Nickel-plated connectors
- Plug-and-play operation
- RoHS and REACH compliant
- UL, cUL and CSA certified
- Limited lifetime warranty
Specifications
| Specification | Details |
|---|
| Brand | Eaton |
| Compatible Brand | Tripp Lite |
| Model / Part Number | U421-20N-G2-RA |
| Product Type | USB-C Extension Cable |
| Cable Type | Passive |
| Cable Length | 20 in. (0.5 m) |
| Connector A | USB-C Male, Right Angle |
| Connector B | USB-C Female |
| USB Standard | USB 3.2 Gen 2 |
| Maximum Data Transfer Rate | 10 Gbps |
| Thunderbolt Compatibility | Thunderbolt 3 |
| Power Delivery | Yes |
| Maximum Power | 60W (20V/3A) |
| Cable Jacket | PVC |
| Jacket Rating | VW-1 |
| Cable Color | Black |
| Connector Plating | Nickel |
| Cable Outer Diameter | 5.2 mm |
| Operating Temperature | 32° to 113°F (0° to 45°C) |
| Storage Temperature | -40° to 158°F (-40° to 70°C) |
| Operating Humidity | 10%–85% RH, non-condensing |
| Certifications | UL, cUL, CSA |
| Compliance | RoHS, REACH |
