Detailed Specifications
Eaton U024-016 Tripp Lite USB 2 0 Extension Cable A M F 16 ft 4 88 m
Overview

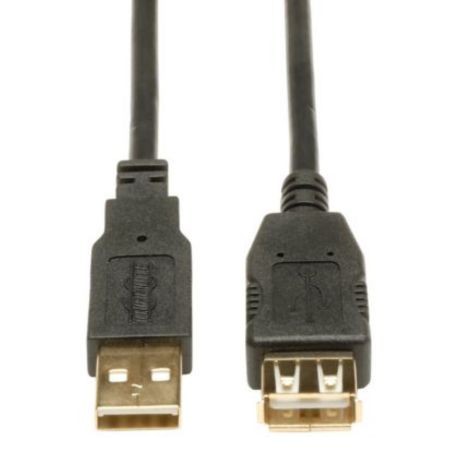

The Eaton Tripp Lite U024-016 is a 16 ft passive USB 2.0 extension cable with a USB-A male connector on one end and USB-A female connector on the other. It extends the reach of existing USB-A device cables in computer, peripheral, office and commercial installations.
The cable supports USB 2.0 High-Speed data rates up to 480 Mbps and is backward compatible with USB 1.1 devices. Its double-shielded construction uses tinned copper braid and aluminum Mylar foil, with twisted 28/24 AWG data lines for signal integrity.
Gold-plated connectors and contacts support conductivity, while molded connectors with integral strain relief provide mechanical durability. Because this is a passive extension cable, it should be used with compatible USB-A cables and devices rather than as an active repeater for applications requiring greater signal reach.
Key Features
- Supports USB 2.0 High-Speed data rates up to 480 Mbps
- Extends USB-A connections by 16 ft for flexible installation
- Double shielding uses copper braid and aluminum Mylar foil
- Twisted 28/24 AWG data lines support USB signal integrity
- Gold-plated connectors and contacts support conductivity
Specifications
| Specification | Details |
|---|
| Brand | Eaton Tripp Lite |
| Part Number | U024-016 |
| Product Type | USB 2.0 Extension Cable |
| Cable Length | 16 ft (4.88 m) |
| Connector A | USB-A male |
| Connector B | USB-A female |
| USB Specification | USB 2.0 High-Speed |
| Data Transfer Rate | 1.5–480 Mbps |
| Cable Type | Passive |
| Shielding | Double-shielded |
| Shield Construction | Tinned copper braid and aluminum Mylar foil |
| Data Line Gauge | 28/24 AWG |
| Connector Plating | Gold plated |
| Contact Plating | Gold plated |
| Connector Style | Straight |
| Jacket Color | Black |
| Operating Temperature | -10°C to 50°C |
| Storage Temperature | -15°C to 60°C |
| Operating Humidity | 0–90% RH, non-condensing |
| Storage Humidity | 0–87% RH, non-condensing |
| Compliance | RoHS |
| Warranty | Lifetime limited worldwide |
