Detailed Specifications

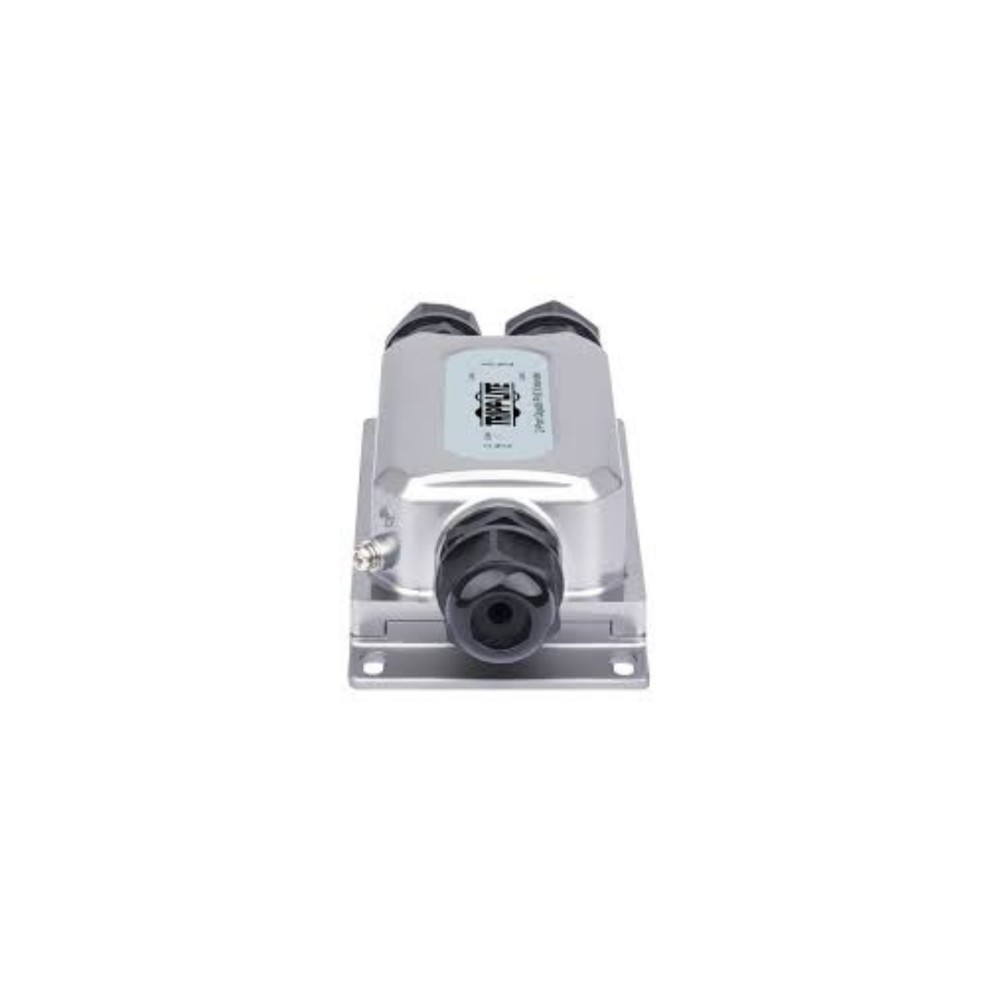

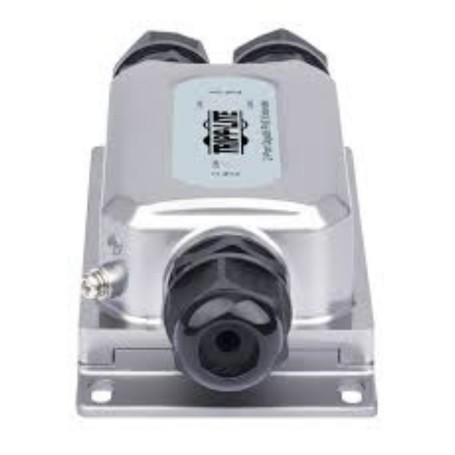

Eaton NPOE-EXT-2X1G30 PoE Extender Repeater
Overview :
The Eaton NPOE-EXT-2X1G30 (Tripp Lite Series) is a hardened 2-port Gigabit Ethernet PoE+ extender and repeater designed for demanding environments. Network administrators, security engineers, and outdoor facility managers deploy this inline device to break through the standard 328-foot (100-meter) limit of Ethernet copper cabling without installing local AC lines.
The device splits a single incoming high-power Type 4 PoE++ stream (up to 95W input) into two separate Gigabit PoE+ lines. This allows operators to run two remote surveillance cameras, VoIP systems, or wireless access points from one source line. For long-distance outdoor layouts, technicians can cascade up to three individual units in series to push data and power out to a maximum range of 1,312 feet (400 meters).
Housed in a rugged aluminum enclosure, the hardware features an IP67 weatherproof rating and an IK10 vandal-resistance certification. This makes it suitable for mounting on highway poles, manufacturing floors, or high-risk exterior walls. Never submerge the unit continuously beyond its 30-minute rating, and ensure the bundled waterproof cable glands are tightened completely with the provided wrench during installation to prevent moisture ingress.
Key Features :
Splits one high-power input into dual PoE+ outputs to save run costs.
Cascading design pushes network and power lines up to 1,312 feet total.
IP67 weatherproof housing handles heavy downpours, sand, and dust storms.
IK10 impact certification guards internal circuits against structural vandalism.
Plug-and-play architecture requires zero IP configuration or software setup.
Specifications :
| Property | Specification |
| Brand | Eaton (Tripp Lite Series) |
| Part Number | NPOE-EXT-2X1G30 |
| Product Type | 2-Port PoE+ Extender / Repeater |
| Network Speed | 10/100/1000 Mbps (Gigabit) |
| Max Input Budget | 95 W (Type 4 PoE++ IEEE 802.3bt) |
| Max Output Per Port | Up to 30 W (IEEE 802.3at / 802.3af) |
| Input Ports | (1) RJ45 Female (Power + Data Input) |
| Output Ports | (2) RJ45 Female (Power + Data Output) |
| Max Single Span | 328 ft (100 m) |
| Maximum Cascade Distance | 1,312 ft (400 m) via 3 modules |
| Enclosure Material | Heavy-Duty Aluminum |
| Weatherproof Rating | IP67 (Dust tight & water immersion up to 1 m) |
| Impact Protection | IK10 (Resists up to 20 Joules mechanical impact) |
| Operating Temperature | -4°F to 140°F (-20°C to 60°C) |
