Detailed Specifications

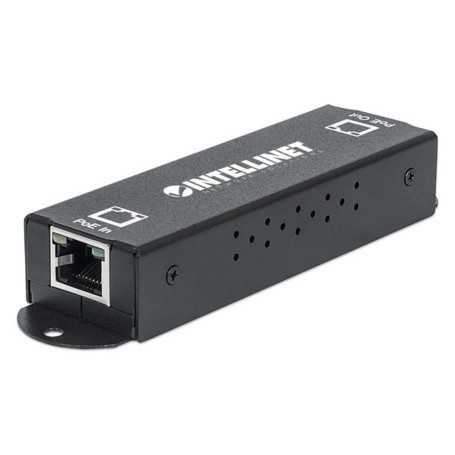

Intellinet 560962 Gigabit High-Power PoE Extender
Overview :
The Intellinet 560962 is a 1-port Gigabit High-Power PoE+ Extender Repeater designed to extend PoE network connections beyond the standard 100-meter Ethernet distance limit. It is used in data center, enterprise, surveillance, wireless networking, and edge deployments where additional power infrastructure is not practical.
The extender receives power from an IEEE 802.3af/at PoE source and forwards both Gigabit Ethernet data and PoE power to a connected powered device. It supports 10/100/1000 Mbps transmission and provides up to 24.6 W PD output power when using a single extender over a combined 200-meter cable distance.
The compact metal enclosure supports wall mounting and fanless operation, making it suitable for deployments near IP cameras, wireless access points, VoIP phones, and other PoE-powered edge devices. It can be cascaded with additional 560962 units for extended distances.
Compatible with IEEE 802.3af/at PoE switches, injectors, and powered devices. It should not be used where non-PoE infrastructure, higher-than-supported power requirements, or speeds above Gigabit Ethernet are required.
Key Features :
- Extends PoE connections beyond standard 100m Ethernet limit
- Supports Gigabit Ethernet data rates up to 1000 Mbps
- Delivers up to 24.6 W PoE device output power
- Fanless metal design for reliable edge deployment
- Cascades multiple units for extended cable distances
Specifications :
| Specification | Details |
|---|
| Brand | Intellinet |
| Part Number | 560962 |
| Product Type | Gigabit High-Power PoE+ Extender |
| PoE Standard | IEEE 802.3af / IEEE 802.3at |
| Ethernet Speed | 10/100/1000 Mbps |
| Input Interface | 1 x RJ45 10/100/1000 Mbps PoE input |
| Output Interface | 1 x RJ45 10/100/1000 Mbps PoE output |
| Maximum PD Output Power | 24.6 W |
| Input Power Source | IEEE 802.3af/at compliant PSE |
| Supported Cable Type | Cat5 UTP/STP, Cat5e UTP/STP |
| Maximum Distance | Up to 600 m with cascaded extenders |
| Housing Material | Metal |
| Mounting | Desktop / Wall Mount |
| Operating Temperature | -10°C to 50°C |
| Certifications | FCC Class A, CE, UKCA, NDAA |
