Detailed Specifications

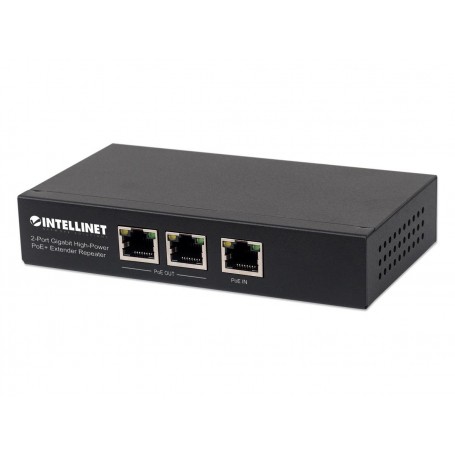

Intellinet 561266 - PoE+ Extender Repeater
Overview:
The Intellinet 561266 is a 2-port high-power PoE+ extender repeater designed to extend Power over Ethernet connections by an additional 100 meters (328 feet) beyond the standard 100m limit . It is used by network installers and security system integrators to deploy IP cameras, wireless access points, and VoIP phones in locations beyond standard Ethernet distance limitations .
This extender solves the challenge of powering and connecting PoE devices at distances up to 200 meters total when used in conjunction with a standard PoE switch or injector . The unit is IEEE 802.3at/af compliant and includes 2 PSE (Power Sourcing Equipment) output ports, providing power and data to two downstream devices. Its metal housing ensures durability for deployment in demanding environments.
Deployment is inline between a PoE switch/injector and the end device. The extender draws power from the upstream PoE source and regenerates the signal for both data and power to extend the reach . This unit is NOT suitable for non-PoE applications, for distances beyond 100m per extension segment, or for applications requiring more than 2 downstream devices.
Key Features:
Extends PoE range by an additional 100 m (328 ft.)
2 x PSE output ports for downstream devices
IEEE 802.3at/af compliant (PoE+/PoE)
Metal housing for durability
Plug-and-play installation, no configuration required
Specifications:
| Specification | Value |
|---|
| Brand | Intellinet Network Solutions |
| Part Number | 561266 |
| SKU# | 5176953 |
| UPC | 766623561266 |
| Product Type | PoE+ Extender Repeater |
| PoE Standard | IEEE 802.3at/af (PoE+/PoE) |
| Input Ports | 1 x RJ45 (PoE PD) |
| Output Ports | 2 x RJ45 (PoE PSE) |
| Max Distance per Segment | 100 m (328 ft.) |
| Total Distance | 200 m (656 ft.) with switch/injector |
| Housing | Metal |
| Mounting | Desktop or wall-mountable |
| Certifications | IEEE 802.3at/af |
