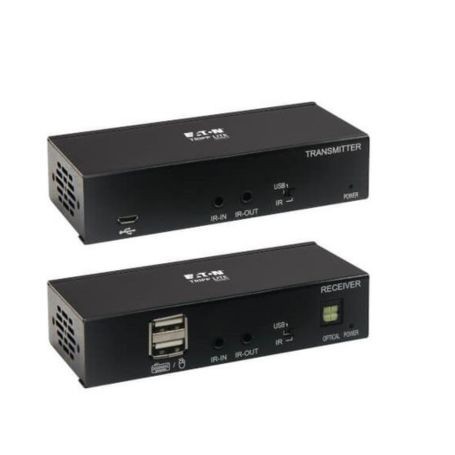

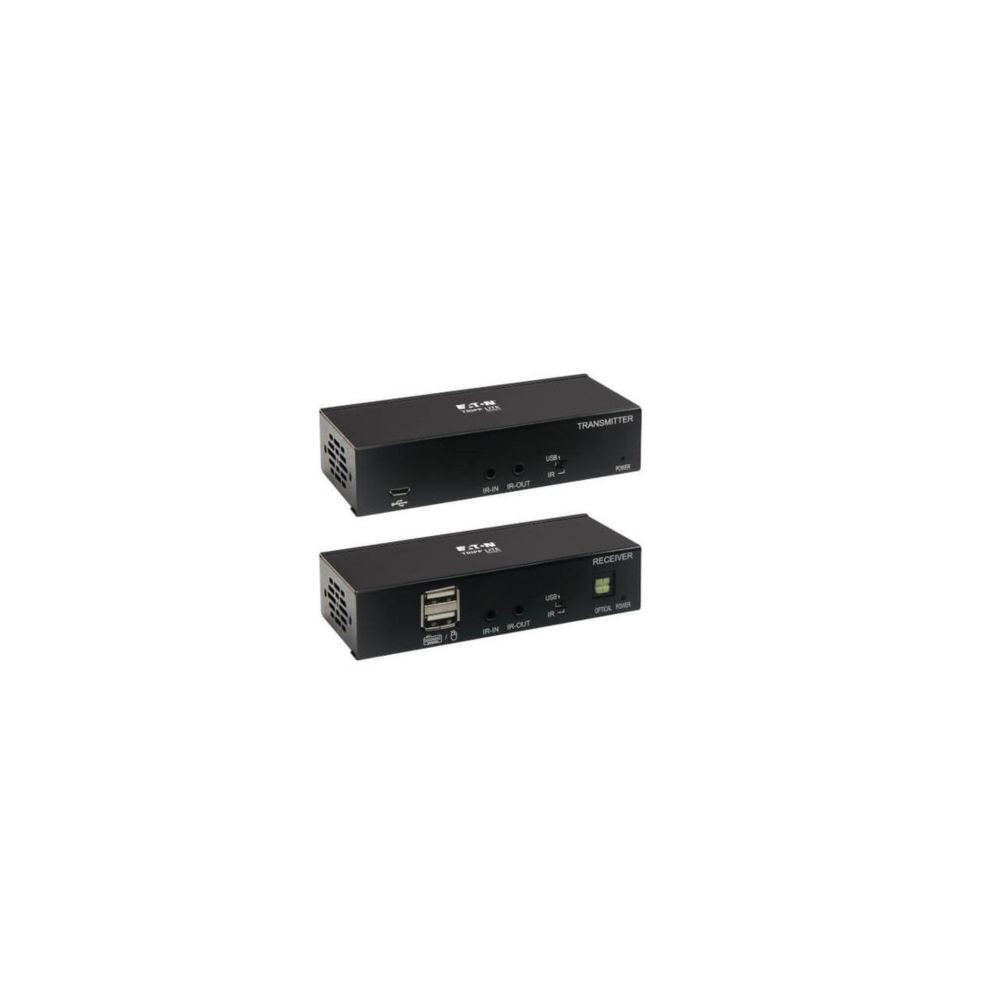

Eaton B127A-1A1-BDBD DisplayPort over Cat6 Extender Kit Tripp Lite Compatible

Overview :

The Eaton Tripp Lite Series B127A-1A1-BDBD is a high-performance DisplayPort over Cat6 transmitter and receiver kit engineered to extend 4K audio and video signals over standard Cat6 cabling. Designed for digital signage, corporate conference rooms, control centers, and high-density video display environments, it extends high-resolution DisplayPort signals up to 230 feet (70 meters) from the source to the display with zero latency, maintaining full signal fidelity across Tripp Lite AV network setups.

Featuring Power over Cable (PoC) technology, the Eaton Tripp Lite B127A-1A1-BDBD requires only one external power supply connected at either the transmitter or receiver unit, eliminating the need for extra AC outlets near the remote display. The kit supports True 4K resolutions up to 3840 x 2160 @ 60 Hz with 4:4:4 HDR color chroma subsampling, ensuring crisp video output for mission-critical monitoring and high-definition commercial signage.

Deployable in enterprise AV installations, education facilities, and industrial monitoring hubs. The local transmitter unit includes a pass-through DisplayPort port to connect a local monitor for real-time video preview. Do NOT deploy with unshielded or sub-standard Cat5 cables over long distances; use solid-wire Cat6/Cat6a cabling to guarantee maximum 4K 60Hz extension performance without signal degradation.

Key Features :

• Extends 4K DisplayPort audio/video signals up to 230 ft. via Cat6 cabling in Tripp Lite setups.

• Supports True 4K UHD resolutions up to 3840 x 2160 @ 60 Hz with 4:4:4 HDR color.

• Power over Cable (PoC) technology requires power at only one end of the extender connection.

• Local DisplayPort pass-through port on transmitter supports a local preview monitor.

• Plug-and-play operation with no software or drivers required for rapid installation.
