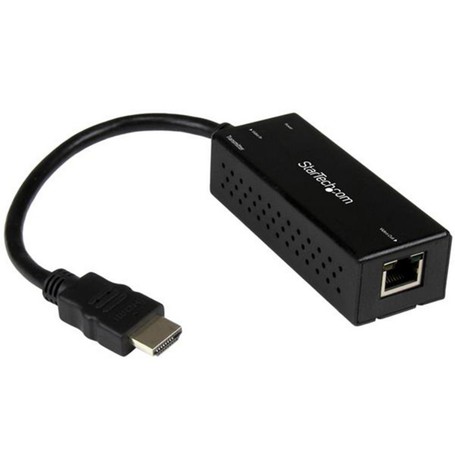

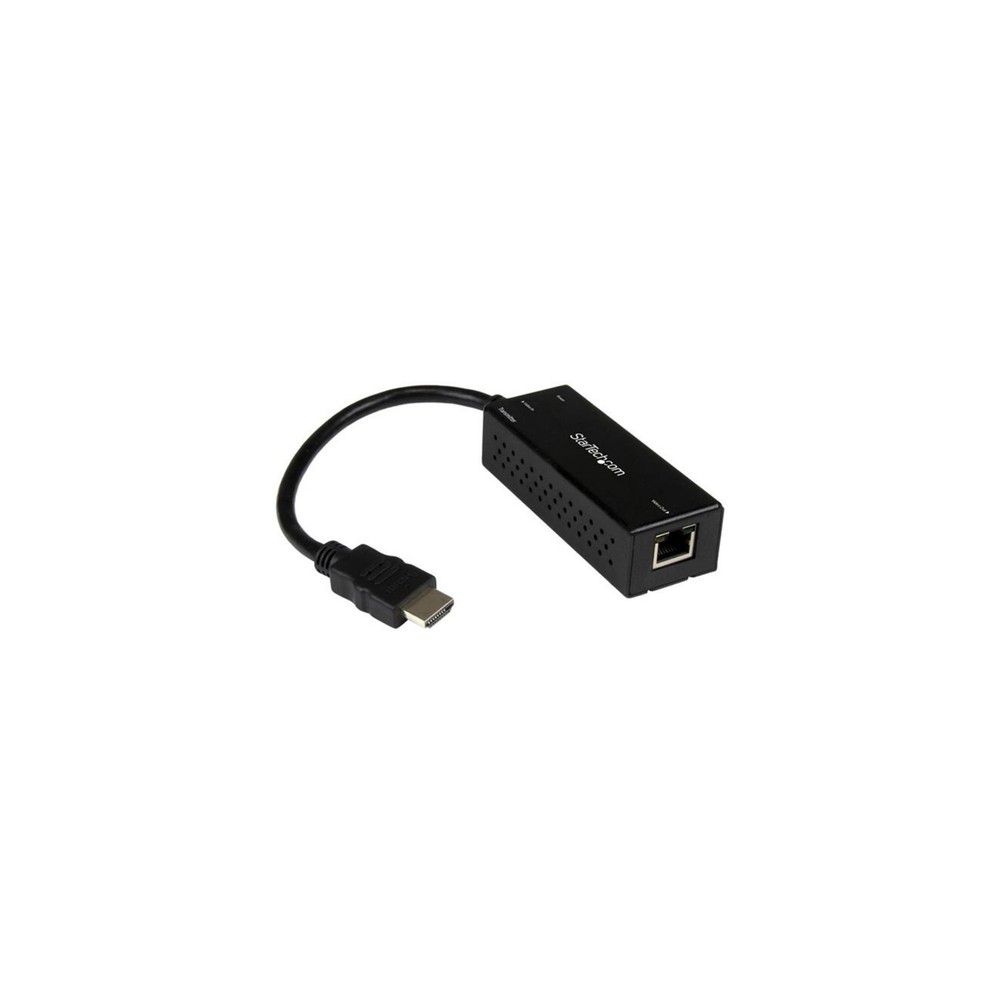

StarTech ST121HDBTDK HDMI over Cat6 HDBaseT Extender USB

StarTech ST121HDBTDK HDMI over Cat6 HDBaseT Extender with USB

Overview

The StarTech ST121HDBTDK is a high-performance HDBaseT extender kit designed for professional AV installations that require the extension of 4K video, audio, and peripheral connectivity over a single Category 6 cable. This kit is a comprehensive solution for classrooms, boardrooms, and command centers, allowing for the remote operation of a display and connected USB devices up to 230 feet (70 meters) away from the source.

This extender kit supports 4K resolution at 30Hz, providing crisp, uncompressed video quality. A standout feature is the integrated 4-port USB 2.0 hub at the receiver end, which allows users to connect keyboards, mice, flash drives, or touchscreens at the remote location. This makes it an ideal solution for KVM (Keyboard, Video, Mouse) applications where the host computer is secured in a rack or separate room.

The ST121HDBTDK features Power-over-Cable (PoC) technology, meaning the receiver is powered through the Cat6 cable from the transmitter, simplifying installation in locations where power outlets are limited. Additionally, it supports bidirectional RS-232 and IR extension, enabling remote control of the video source or the display from either end of the setup.

Key Features

• Extends 4K 30Hz HDMI and USB 2.0 up to 115ft (35m) over Cat6.

• Extends 1080p video and USB up to 230ft (70m) over Cat6.

• Integrated 4-port USB 2.0 hub for remote peripheral control (KVM).

• Power-over-Cable (PoC) eliminates the need for a power adapter at the receiver.

• Supports bidirectional RS-232 and IR for full device control.
