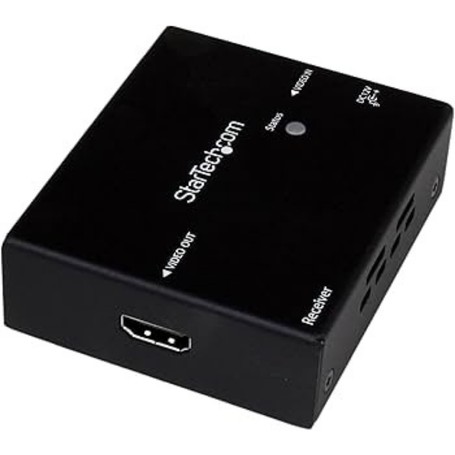

StarTech ST121HDBTL HDMI over Cat5 HDBaseT Lite Kit

StarTech ST121HDBTL HDMI over Cat5 HDBaseT Lite Kit

Overview

The StarTech ST121HDBTL is a point-to-point HDMI extension solution that utilizes HDBaseT Lite technology to transmit high-definition video and audio over a single Cat5e or Cat6 cable. It is designed for environments where HDMI cables cannot reach, such as large classrooms, retail signage, or corporate boardrooms, providing a reliable connection up to 230 feet (70 meters).

This kit supports 4K resolution at 30Hz, ensuring sharp image quality for modern displays. A key advantage of this model is its Power-over-Cable (PoC) functionality; the entire system is powered by a single adapter connected to the transmitter, which then delivers power to the receiver through the Ethernet cable. This eliminates the need for an available power outlet at the remote display location, simplifying installation in tight or elevated spaces.

The ST121HDBTL includes mounting hardware for professional integration and is fully compliant with HDBaseT standards for guaranteed signal integrity. It is intended for direct cable runs and should not be connected through active network hardware such as switches or routers.

Key Features

• Extends 4K 30Hz HDMI up to 115ft (35m) and 1080p up to 230ft (70m).

• Power-over-Cable (PoC) allows the receiver to operate without a local power supply.

• HDBaseT Lite technology ensures uncompressed video and audio transmission.

• Included mounting brackets enable secure installation behind displays or under desks.

• Plug-and-play setup requires no software, drivers, or complex configuration.
