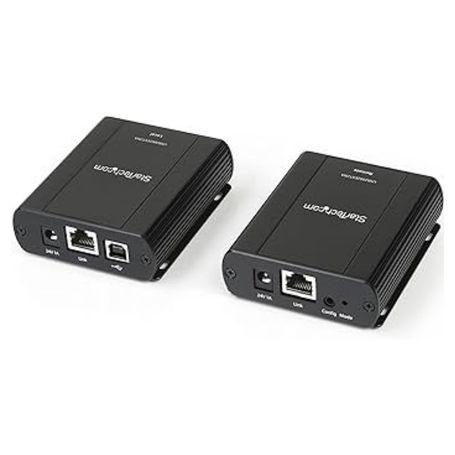

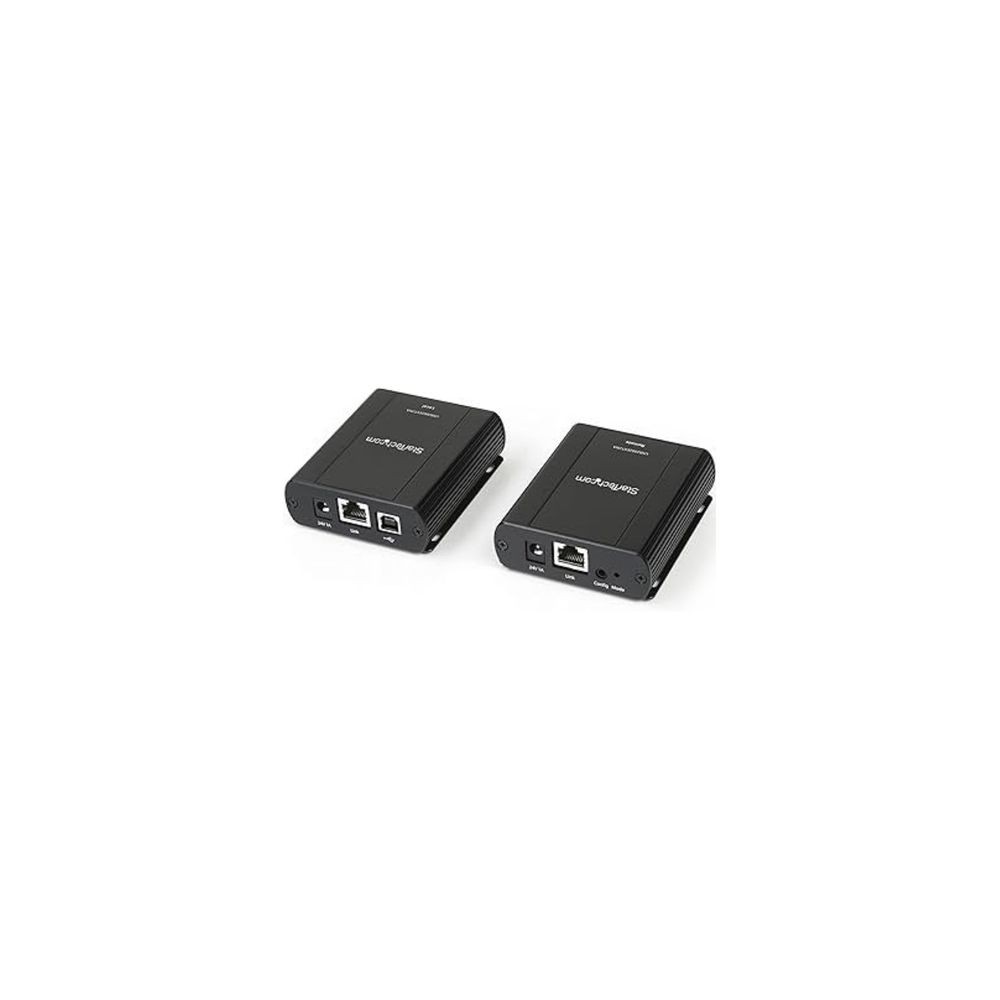

StarTech USB2002EXT2NA 2-Port USB 2.0 Extender Over Cat5/Cat6

Overview :

The StarTech USB2002EXT2NA is a commercial-grade USB extension kit designed to bypass the 16-foot distance limitation of standard USB cabling. This point-to-point system enables the operation of two USB 2.0 peripherals at distances up to 330 feet (100 meters) using a single, dedicated Cat5e or Cat6 Ethernet cable. It is engineered for environments where a host computer must remain in a secured or climate-controlled location while peripherals are deployed at a remote workstation.

The system consists of a local transmitter (connected to the host) and a remote 2-port receiver. The remote unit features an integrated 2-port hub that provides up to 500mA of power per port, ensuring sufficient current for devices such as touchscreens, cameras, and storage drives. It supports full USB 2.0 data transfer rates of 480Mbps and is OS-independent, requiring no software or driver installation for deployment.

Built for durability, both units are housed in a rugged aluminum chassis suitable for industrial or high-traffic commercial settings. This extender is designed for a direct "dark fiber" style copper connection and will not function if routed through active network hardware like switches or routers. It is an ideal solution for digital signage, industrial automation, and security monitoring stations.

key features :

• Extends two USB 2.0 devices up to 330ft using standard Cat5e/6.

• Provides 500mA per port for stable remote device power delivery.

• True plug-and-play setup requires no drivers or OS configuration.

• 480Mbps bandwidth ensures full performance for high-speed devices.

• Rugged aluminum enclosure withstands demanding industrial environments.

Specifications :
