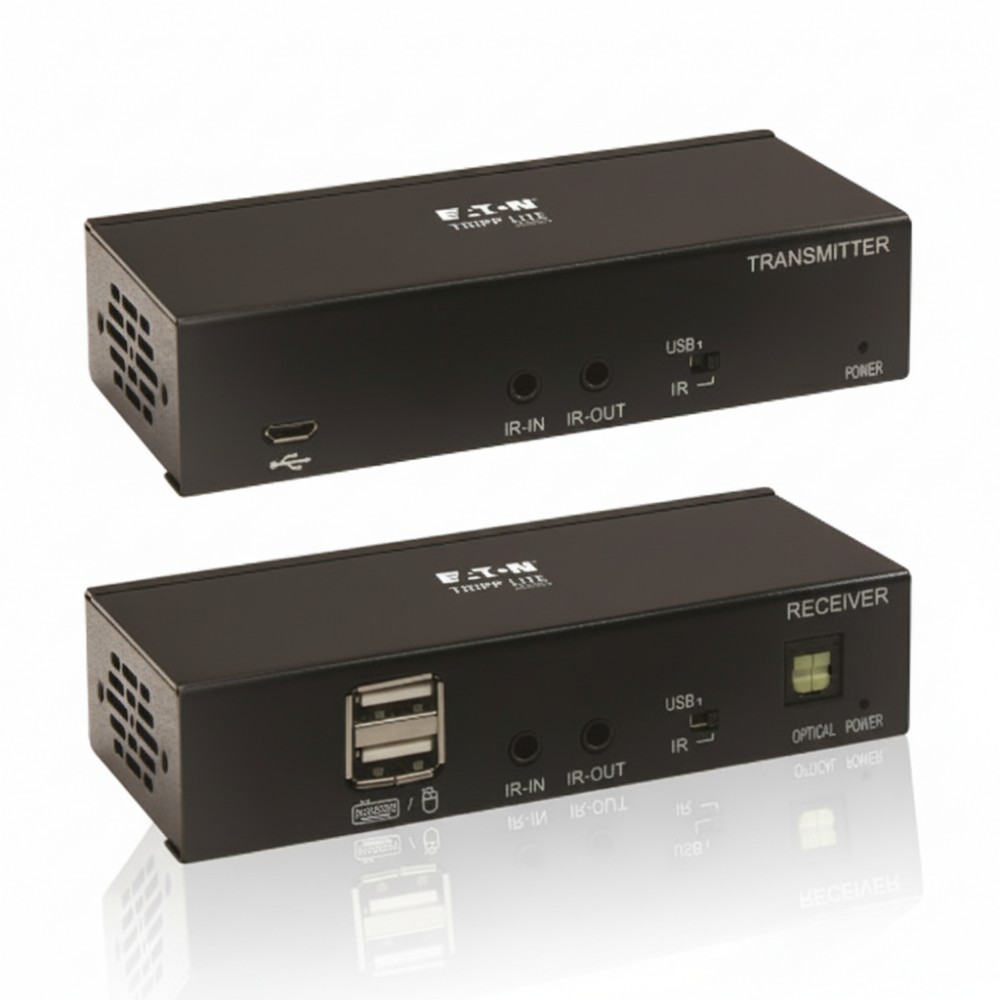

The Eaton B127A-1A1-BDBH is a high-performance Tripp Lite Series DisplayPort to HDMI over Cat6 extender kit, engineered to overcome the inherent distance limitations of standard A/V cabling. This kit facilitates the extension of crystal-clear 4K video, multi-channel audio, and KVM (Keyboard, Video, Mouse) signals from a DisplayPort source to an HDMI display up to 230 feet away using cost-effective Cat6 cabling. It is an ideal solution for large-venue presentations, digital signage, and video conferencing in diverse environments such as conference rooms, educational institutions, houses of worship, and retail settings where source and display are significantly separated. This extender kit supports Ultra HD resolutions up to 3840 x 2160 (4K) at a smooth 60 Hz, incorporating 4:4:4 chroma subsampling and HDCP 2.2 compliance, ensuring vibrant, uncompromised video quality and secure content streaming. Beyond visual fidelity, it delivers full, rich uncompressed DTS-HD, Dolby TrueHD, and 7.1-channel digital audio. The integrated KVM functionality, selectable between USB 1.1 and bi-directional IR via convenient DIP switches, allows for remote control of the source device from the display location, enhancing operational flexibility. Power over Cable (PoC) technology further simplifies deployment by powering the remote unit via the Cat6 cable, eliminating the need for an additional power outlet at the receiver end. Designed for robust integration into IT infrastructures, the kit includes mounting hardware for flexible installation on walls, poles, or 19-inch racks. Its plug-and-play operation ensures quick setup without requiring software or drivers. The B127A-1A1-BDBH is also TAA compliant, making it eligible for GSA Schedule and other federal procurement contracts, an important consideration for government and institutional clients. The system can even be extended further with optional Tripp Lite repeaters, offering enhanced flexibility for ultra-long-distance applications.
| Specification | Value |
|---|---|
| Brand | Eaton |
| Part Number | B127A-1A1-BDBH |
| Product Type | DisplayPort to HDMI over Cat6 Extender Kit |
| Series | Tripp Lite Series |
| Dimensions (H x W x D, per unit) | 1.06 x 4.53 x 2.46 inches |
| Weight (per unit) | 1.0 lbs |
| Input Connector | DisplayPort (Transmitter) |
| Output Connector | HDMI (Receiver) |
| Resolution | Up to 3840 x 2160 (4K) @ 60 Hz |
| HDCP Compliance | HDCP 2.2 |
| Audio Support | DTS-HD, Dolby TrueHD, 7.1-channel |
| KVM Functionality | USB 1.1, Bi-directional IR |
| Extension Distance | 230 ft (70 m) |
| Cable Type | Cat6 (solid-wire recommended) |
| PoC Support | Yes |
| TAA Compliant | Yes |
| Mounting | Wall, Rack, Pole |
