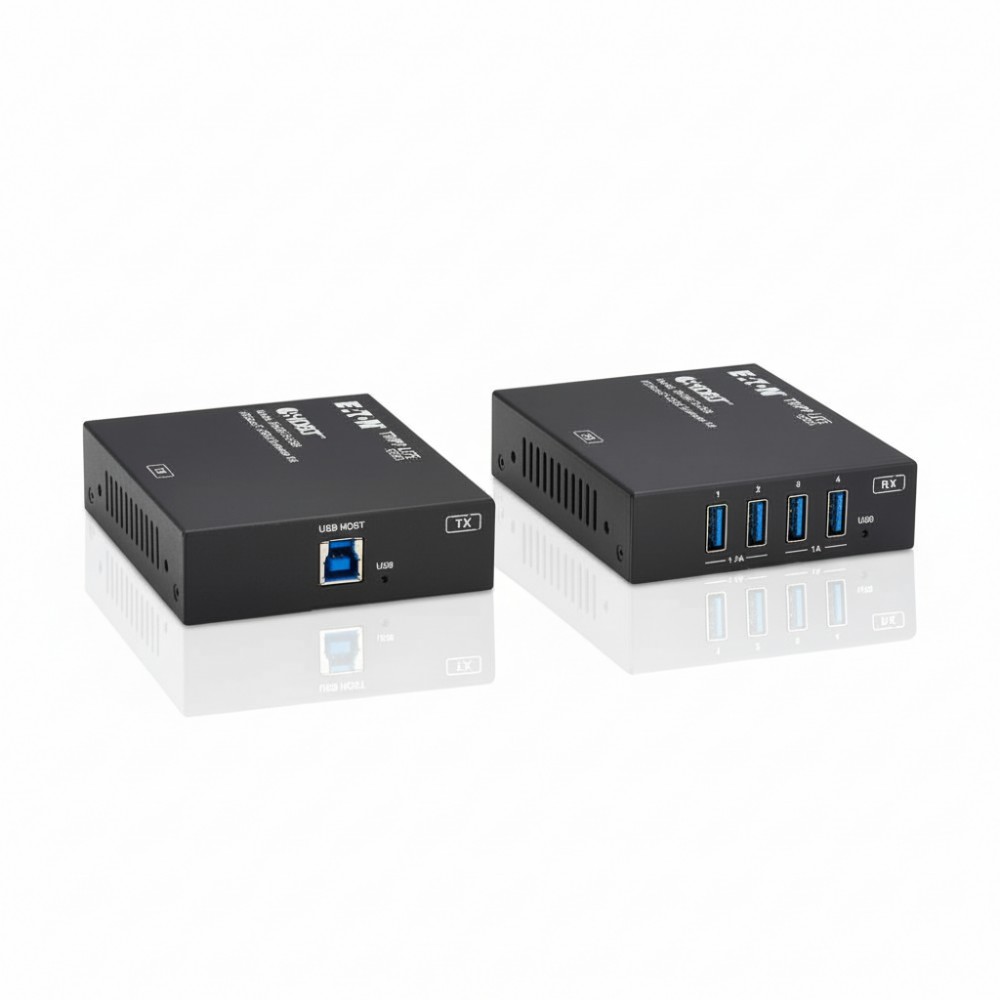

The Eaton BHDBT3-USB is a high-performance HDBaseT-USB3 extender kit engineered to overcome the inherent distance limitations of standard USB cabling. Designed for environments requiring remote placement of USB peripherals and audiovisual equipment, this solution is ideal for large meeting spaces, educational facilities, digital signage installations, and secured control rooms. It effectively bridges the gap between host computers and distant USB devices, ensuring reliable, high-speed connectivity over extended runs. Leveraging advanced HDBaseT 3.0 technology and an integrated Valens chipset, this kit extends four USB 3.2 Gen 1 (formerly USB 3.0) ports up to 328 feet (100 meters) using a single, cost-effective Cat6a Ethernet cable. This capability supports data transfer rates of up to 5 Gbps, ensuring that bandwidth-intensive devices like webcams, interactive whiteboards, and external storage operate without compromise, while also maintaining backward compatibility with previous USB generations. The compact, wall-mountable design of the transmitter and receiver units, combined with bi-directional Power over Cable (PoC), simplifies deployment by allowing power to be delivered over the Cat6a cable from either end, eliminating the need for additional power outlets at each device. Its plug-and-play nature means no software or drivers are required for installation. Furthermore, integrated RS-232 and FSYNC GPIO pass-through capabilities provide centralized control and synchronization options for connected systems.
| Specification | Value |
|---|---|
| Brand | Eaton |
| Part Number | BHDBT3-USB |
| Product Type | HDBaseT USB Extender Kit |
| Series | Tripp Lite Series |
| Height (Each Unit) | 0.98 inches |
| Width (Each Unit) | 3.35 inches |
| Depth (Each Unit) | 3.94 inches |
| Weight (Transmitter) | 0.57 lbs |
| Weight (Receiver) | 0.55 lbs |
| Max Extension Distance | 328 feet (100 meters) |
| USB Standard | USB 3.2 Gen 1 |
| USB Data Rate | 5 Gbps |
| USB-A Ports | 4 |
| Network Ports | 2 x RJ45 (HDBaseT) |
| PoC Support | Yes |
| Control Pass-through | RS-232, FSYNC GPIO |
| HDBaseT Technology | 3.0 |
| TAA Compliant | Yes |
| Construction Material | Metal |
