Detailed Specifications
Eaton BP72RT 72V Extended Battery Module Compatible Tripp Lite
Overview :

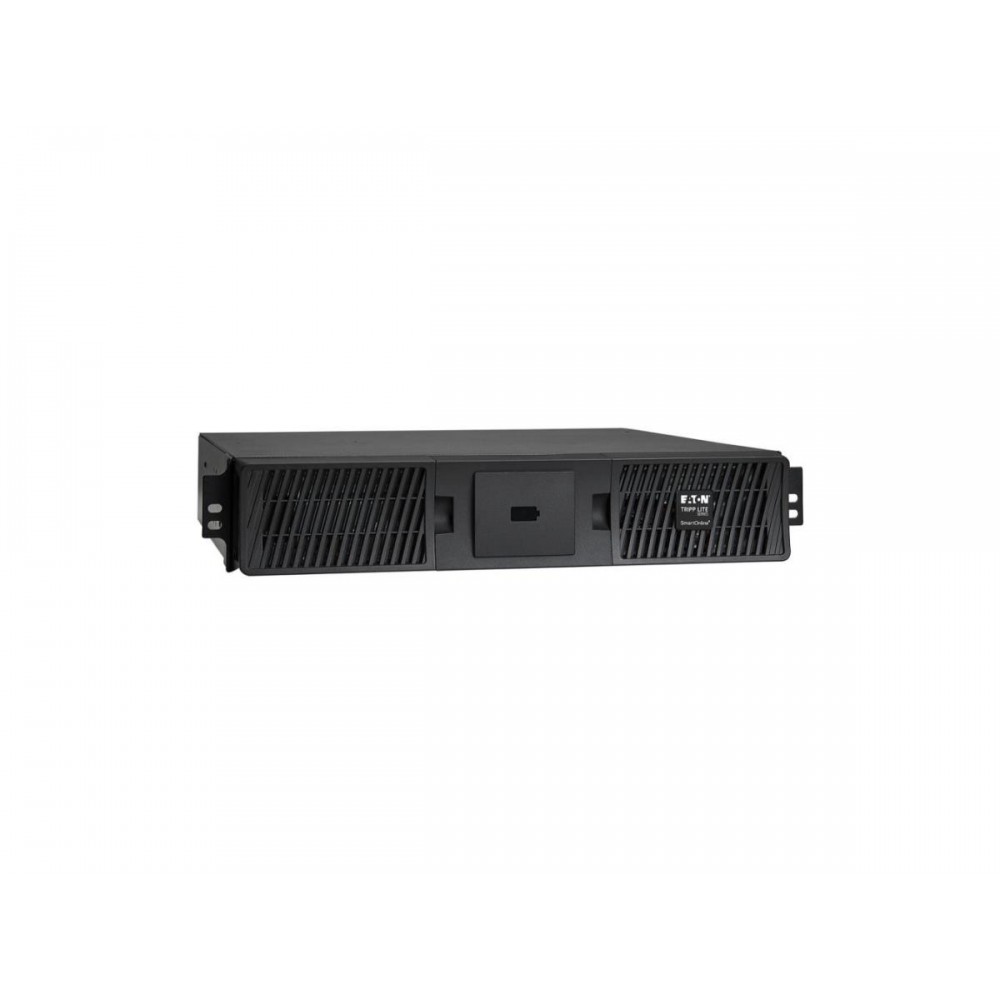

The Eaton BP72RT is a Tripp Lite by Eaton SmartOnline 72V Extended Battery Module (EBM) designed to add additional battery runtime to compatible Eaton Tripp Lite series SmartOnline UPS systems.
The BP72RT uses two 9Ah batteries connected in parallel, providing an 18Ah total battery capacity at 72V. It includes heavy-gauge external battery cabling with high-current 72V DC connectors and supports daisy-chaining additional battery packs for extended runtime.
The unit supports both rack-mount and tower installation and occupies 2U of rack space. Eaton specifies compatibility with select SmartOnline UPS models, including the 2023 redesigns of the SU2200RTXLCD2U, SU2200RTXLCDN, SU3000RTXLCD2U, SU3000RTXLCD2UN, SUINT2200LCD2U and SUINT3000LCD2U.
Key Features :
- 72V external extended battery module
- Designed for compatible SmartOnline UPS systems
- Adds critical runtime during power outages
- 2U rack/tower form factor
- Supports rack-mount or tower installation
- Contains two 9Ah batteries connected in parallel
- 18Ah total capacity at 72V
- Valve Regulated Lead Acid (VRLA) battery technology
- Heavy-gauge external battery cable included
- High-current 72V DC connectors
- Daisy-chain connector supports additional battery modules
- Rack-mounting hardware included
- Black housing
- Online/double-conversion UPS compatibility
- cTUVus and UL 1778 certified
- FCC compliant and CE marked
- 2-year limited warranty
Specifications :
| Specification | Details |
|---|
| Manufacturer | Eaton |
| Compatible Brand | Tripp Lite |
| Part Number | BP72RT |
| Product Type | Extended Battery Module (EBM) |
| Product Series | SmartOnline |
| Battery Voltage | 72V DC |
| Battery Type | Valve Regulated Lead Acid (VRLA) |
| Number of Batteries | 2 |
| Battery Configuration | Parallel |
| Battery Capacity | 9Ah per battery / 18Ah total |
| Rack Height | 2U |
| Installation | Rack / Tower |
| Rack Mounting Kit | Yes |
| Topology | Online / Double-Conversion |
| Battery Replacement | EBP-1616 |
| Color | Black |
| External Battery Cable | Included |
| DC Connector | High-current 72V DC |
| Daisy-Chain Capability | Yes |
| Operating Temperature | 32° to 104°F (0° to 40°C) |
| Relative Humidity | 0–96% RH, non-condensing |
| Certifications | cTUVus, UL 1778 |
