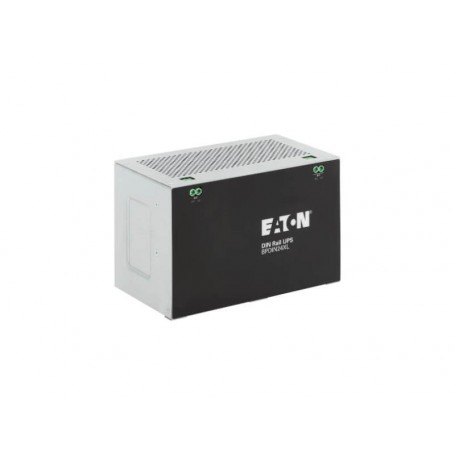

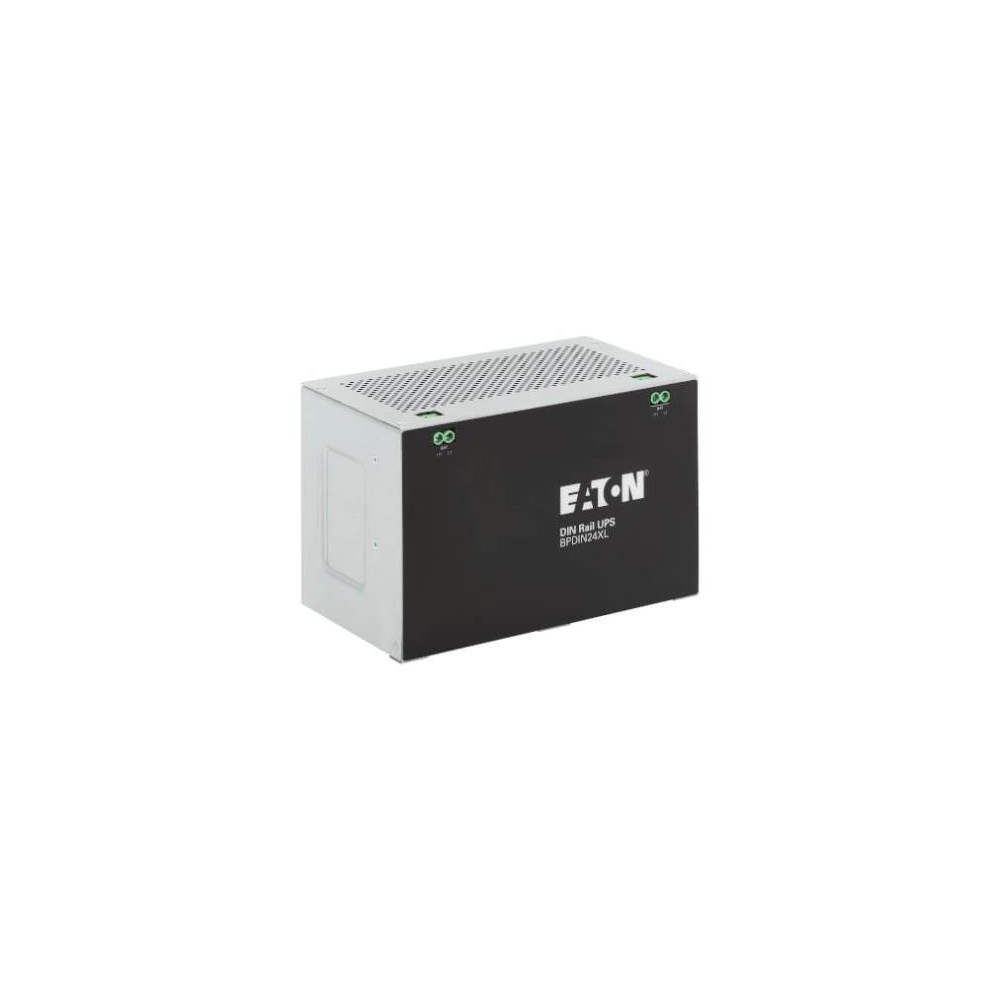

EATON BPDIN24XL 24V DC DIN Rail Extended Battery Module Compatible Tripp Lite
Overview
The EATON BPDIN24XL is a 24V DC DIN Rail Extended Battery Module (EBM) designed for use with Eaton's DIN24240DC and DIN24480DC industrial UPS systems. It provides additional battery runtime and can be connected to the compatible DC DIN rail UPS systems as an external battery module. Eaton specifies that up to four BPDIN24XL modules can be used with a compatible UPS.
The battery module has a 24V DC, 5Ah rating and is designed for installation on a 35 mm DIN rail. With one BPDIN24XL, Eaton specifies up to 10 minutes full-load runtime / 20 minutes half-load runtime for the DIN24240DC and 3 minutes full-load / 10 minutes half-load for the DIN24480DC.
Key Features
- 24V DC extended battery module
- 5Ah battery capacity
- Designed for Eaton DIN rail DC UPS systems
- Compatible with DIN24240DC and DIN24480DC
- 35 mm DIN rail mounting
- Up to four battery modules can be connected to a compatible DC UPS
- Provides extended UPS runtime
- Compact 0U form factor
- UL and cUL Listed
- RoHS, REACH and CE compliant
- 3-year limited worldwide warranty
Specifications
| Specification | Details |
|---|
| Manufacturer | EATON |
| Compatible Brand | Tripp Lite |
| Part Number | BPDIN24XL |
| Product Type | Extended Battery Module (EBM) |
| Battery Type | 24V DC Battery Module |
| Battery Capacity | 5Ah |
| Compatible UPS | DIN24240DC, DIN24480DC |
| Form Factor | 0U |
| Mounting | DIN Rail |
| DIN Rail Size | 35 mm |
| Maximum Modules | Up to 4 per compatible DC UPS |
| Full-Load Runtime with DIN24240DC | 10 minutes with 1 module |
| Half-Load Runtime with DIN24240DC | 20 minutes with 1 module |
| Full-Load Runtime with DIN24480DC | 3 minutes with 1 module |
| Half-Load Runtime with DIN24480DC | 10 minutes with 1 module |
| Operating Temperature | +5°F to +122°F / -15°C to +50°C |
| Storage Temperature | +5°F to +104°F / -15°C to +40°C |
| Relative Humidity | 0–95%, non-condensing |
| Certifications | UL Listed, cUL Listed |
| Compliance | CE, REACH, RoHS, UKCA |
