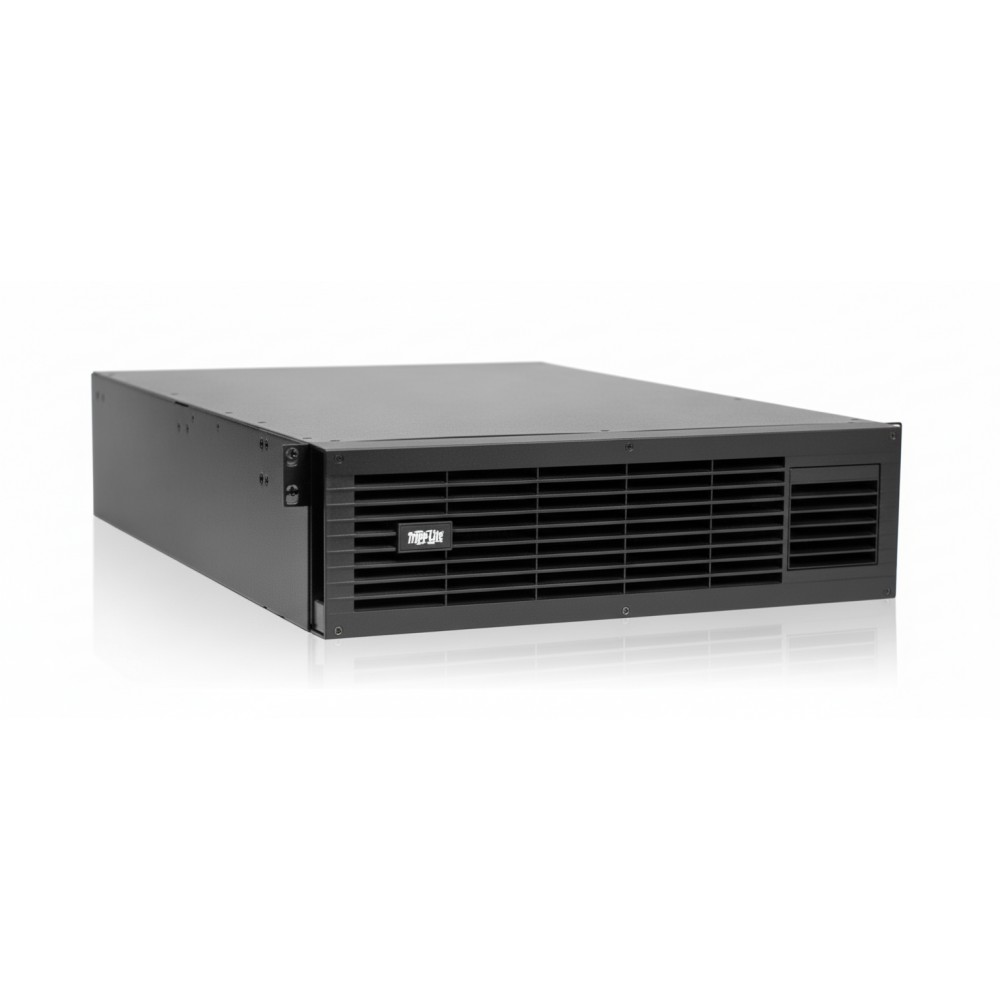

Eaton BP192V12-3U 192 V External Battery Pack (3U Rack/Tower) View larger

Eaton BP192V12-3U Tripp Lite 192 V External Battery Pack (3U Rack/Tower)

BP192V12-3U

New

In Stock

192 V external battery pack – 3U rack/tower
×




$1,704.00

Detailed Specifications

Eaton BP192V12-3U Tripp Lite 192 V External Battery Pack (3U Rack/Tower)

Overview

The Eaton BP192V12-3U is a high-capacity external battery pack designed for use with selected compatible UPS systems to significantly extend backup runtime in critical IT infrastructure environments. Built to integrate with 192 V DC UPS systems, the unit supports rack-mount (3-U height) or tower configurations, offering flexibility in deployment across data centres, telecom closets or edge-site server racks.By decoupling battery capacity from the UPS head, the BP192V12-3U allows you to scale runtime without upgrading the UPS inverter itself—especially useful when you expect prolonged outage periods or load shedding events. It supports daisy-chaining of multiple battery packs, enabling runtime expansion in modular increments while preserving floor and rack space.Installation is straightforward: the unit fits into standard 19″ rack systems with a 3-U height footprint and includes heavy-gauge DC cabling and high-current connectors for reliable battery feed and serviceability. Tower stands or two-post mounting kits may be used when rack depth or configuration requires alternative layout. The pack is suitable for IT professionals who already operate a compatible UPS and need to plan for extended duration backup—whether for overnight maintenance windows, generator-less sites or remote branch racks.

Key Features

  • Supports 192 V DC output and is engineered for runtime extension of compatible UPS systems—scale battery capacity without changing the UPS head.

  • 3 U rack/tower form-factor supports standard 19″ rack mounting or tower orientation via optional stand for flexible installation.

  • Daisy-chain capability allows multiple battery packs to be connected in series for incremental runtime scaling in dense installations.

  • Heavy-gauge DC cabling and high-current connectors ensure reliable high-current feed from battery pack to UPS and straightforward service access.

Technical Specifications

SpecificationDetail
Brand Eaton
Part Number BP192V12-3U
Product Type External Battery Pack (192 V), Rack/Tower
Key Specification 192 V DC system voltage
Key Specification 3U rack/tower form-factor
Key Specification Runtime extension for compatible 192 V UPS systems
Battery Type Valve-regulated lead-acid (VRLA)
Mounting Size 3U (19″ rack) or tower with included accessories
Unit Weight Approx 174 lb (≈79 kg)
Warranty 2-year limited warranty
