Detailed Specifications

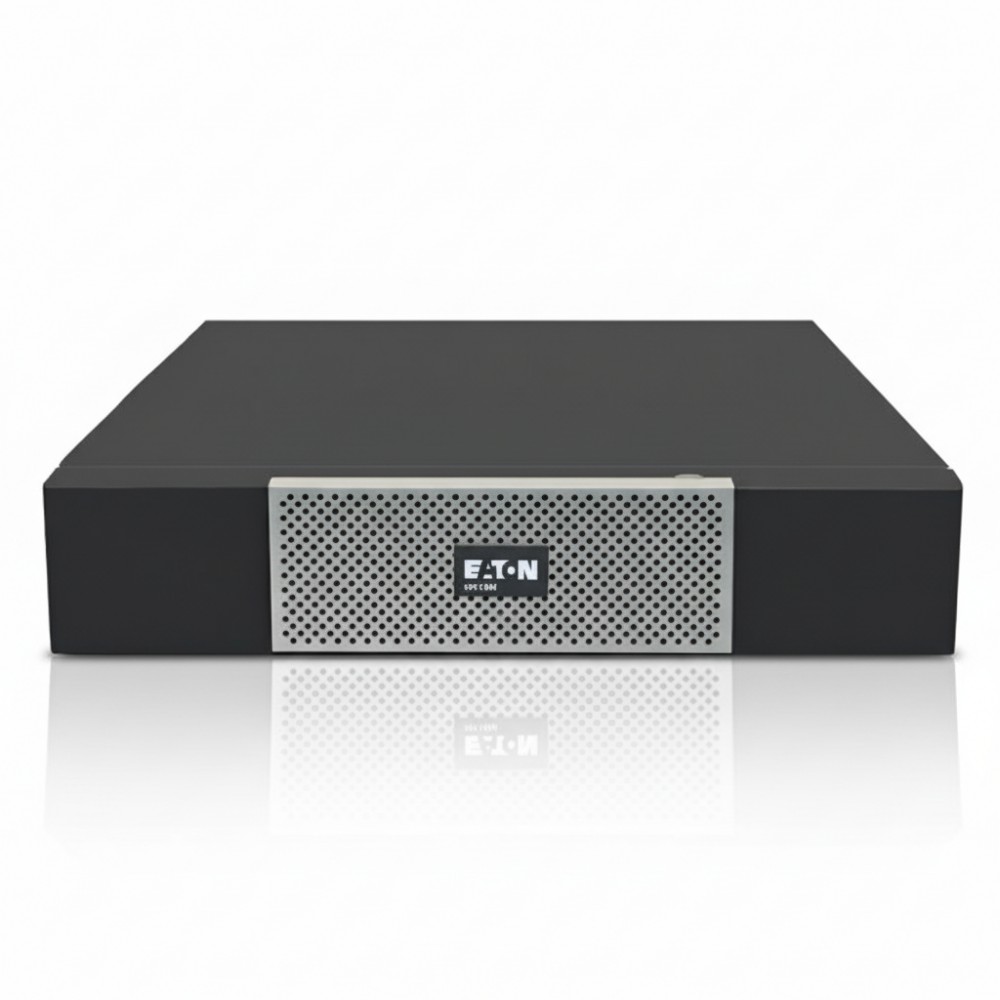

Eaton 5PXEBM48RT - 2U 48V Extended Battery Module
Overview :
The Eaton 5PXEBM48RT is a 2U rack/tower-compatible extended battery module designed to enhance the runtime of Eaton 5PX UPS systems, including models 1000, 1500, and 2200 VA. It features eight 12V/9Ah sealed lead-acid batteries, providing an additional 48V capacity to support critical loads during power outages. This module is ideal for environments requiring extended backup time, such as data centers, server rooms, and network closets. It integrates seamlessly with the 5PX UPS, automatically recognized upon connection, and supports hot-swappable battery replacement without interrupting connected equipment.
Key Features :
Adds up to 4 extended battery modules to 5PX UPS
Hot-swappable batteries for uninterrupted operation
Includes rack-mounting kit and detection cable
Compatible with 5PX 1000, 1500, and 2200 models
Specifications :
| Specification | Details |
|---|
| Brand | Eaton |
| Part Number | 5PXEBM48RT |
| Product Type | Extended Battery Module |
| Form Factor | Rack/Tower, 2U |
| Input Connection | C14 |
| Output Waveform | Sine Wave |
| Battery Type | Sealed Lead-Acid |
| Battery Rating | 12V / 9Ah |
| Battery Quantity | 8 |
| Product Length | 17.4 in (441.2 mm) |
| Product Width | 20.6 in (522 mm) |
| Product Height | 3.4 in (86.2 mm) |
| Product Weight | 72 lbs (32.8 kg) |
| Warranty | 3 years (electronics & batteries with registration) |
| Certifications | CE, UL 1778, IEC/EN 62040-1, IEC/EN 62040-2, cTUVus |
