Detailed Specifications

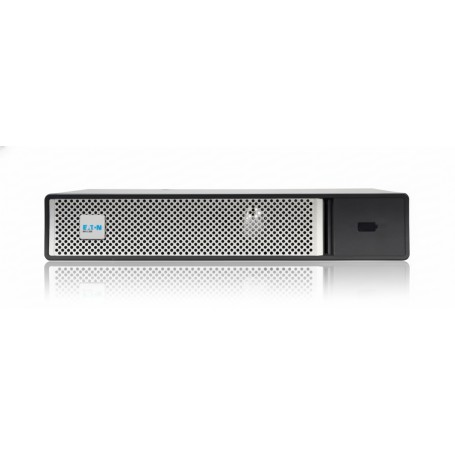

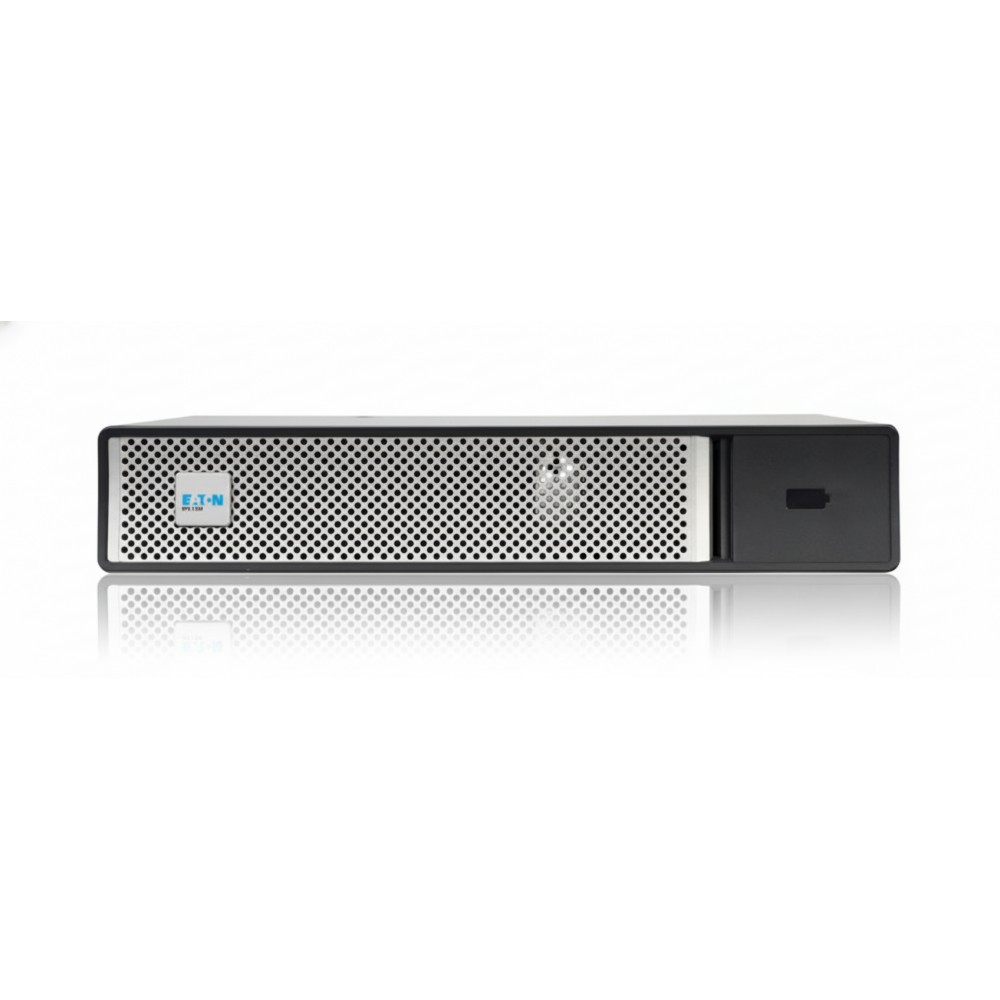

Eaton 5PXEBM72RTG2 - 2U Extended Battery Module
Overview :
The Eaton 5PXEBM72RTG2 is a 72V extended battery module designed to enhance runtime for Eaton 5PX G2 UPS systems. It is compatible with models such as 5PX2000RTG2, 5PX3000RTG2, and others, providing additional battery capacity to support critical equipment during power outages. The module features a 2U rack/tower form factor, allowing for flexible installation in standard 19-inch racks or as a standalone tower unit. It utilizes valve-regulated lead-acid (VRLA) AGM batteries, ensuring reliable performance and safety. The 5PXEBM72RTG2 supports daisy-chaining of up to four modules, enabling scalability to meet varying power requirements. Its design includes heavy-gauge cabling with high-current DC connectors for secure and straightforward installation. This battery module is ideal for environments where extended backup power is essential, such as data centers, healthcare facilities, and industrial applications.
Key Features :
Compatible with Eaton 5PX G2 UPS systems
Supports up to four units in daisy-chained configuration
Sealed lead-acid (VRLA AGM) battery type
Rack/tower form factor with 2U height
Compliant with CE, RoHS, and cULus standards
Specifications :
| Specification | Details |
|---|
| Brand | Eaton |
| Part Number | 5PXEBM72RTG2 |
| Product Type | Extended Battery Module |
| Battery Type | Sealed Lead-Acid (VRLA AGM) |
| Voltage | 72V DC |
| Rack Size | 2U |
| Form Factor | Rack/Tower |
| Height | 3.4 in (86.36 mm) |
| Width | 17.2 in (436.88 mm) |
| Depth | 23.7 in (602.58 mm) |
| Weight | 89.1 lb (40.4 kg) |
| Compliances | CE, RoHS, cULus |
| Certifications | BSMI, REACH |
| Topology | Line-Interactive |
| Maximum EBMs | Up to 4 |
