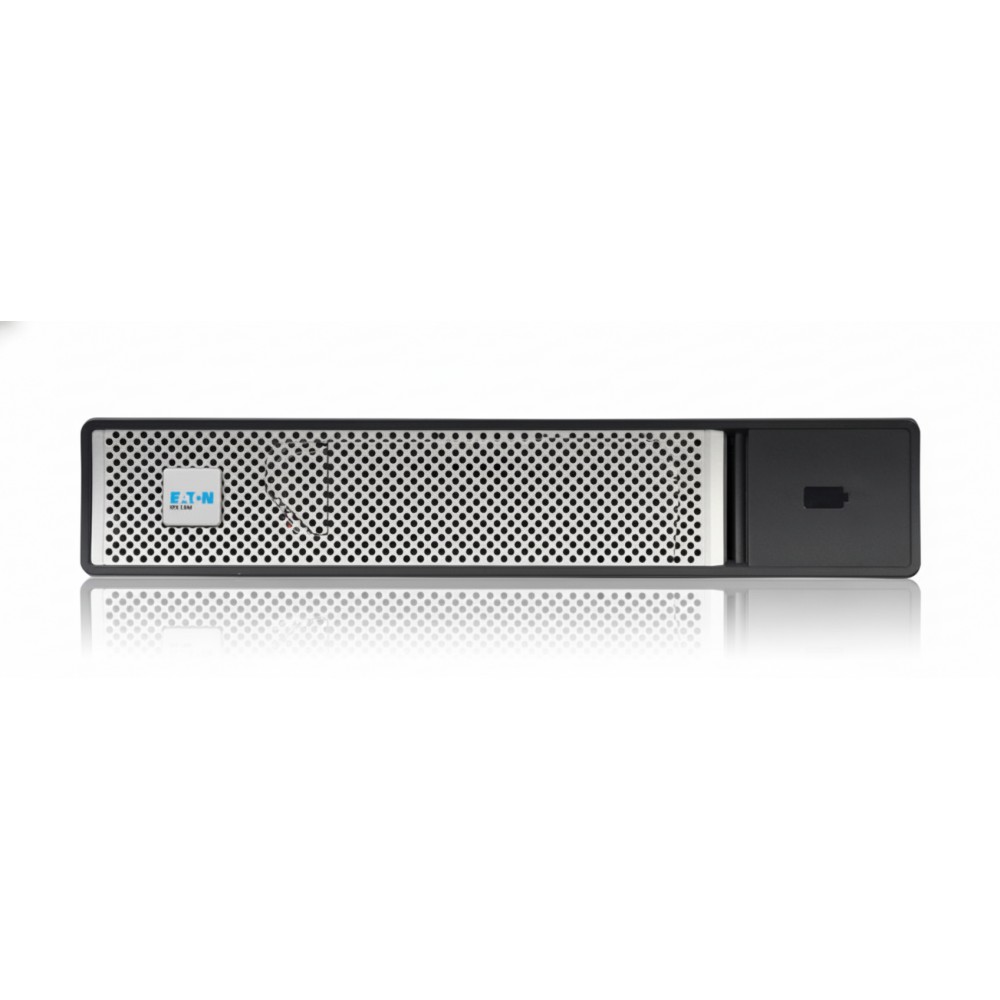

Eaton 5PXEBM48RTG2 - Extended Battery Module for 5PX G2 UPS
Overview
The Eaton 5PXEBM48RTG2 is an external extended battery module (EBM) designed to increase runtime for compatible Eaton 5PX G2 UPS systems. It provides additional sealed lead-acid battery capacity to sustain loads longer during utility outages or transitional disturbances, making it suitable for branch office racks, network closets, and edge IT deployments where extended backup time is required beyond internal UPS batteries. Specifications are verified from official Eaton documentation and authorized sources.
This module is intended to be used in conjunction with specific 5PX G2 UPS models × including the 1000 VA and 1500 VA 2U models × and communicates with the UPS through a dedicated DC connector cable for integrated runtime management. The pack supports daisy-chaining of multiple EBMs to scale runtime further when needed.
Mechanically, the unit occupies 2U of rack space and is rack/tower convertible using the included 4-post rail kit and pedestal brackets, ensuring installation flexibility in 19-inch rack frames or upright pedestal configurations.
Depending on load and configuration, adding one or more of these EBMs can extend UPS hold-up time to meet operational cutover or shutdown requirements during extended loss of mains power × especially in scenarios where generator transfer is delayed or load demands are moderate. Not appropriate for use with UPS platforms outside the 5PX G2 specified models or for high-density 208/230 V rack systems without appropriate step-down or different EBM design.
Key Features
- Extended battery module for select Eaton 5PX G2 UPS models
- Provides additional 48 V sealed lead-acid battery capacity
- Rack/tower convertible 2U chassis with rail kit and feet
- Daisy-chain up to four matching modules for longer runtime
- Includes heavy-gauge cabling and high-current DC connectors
Specifications
| Specification | Detail |
|---|
| Brand | Eaton |
| Part Number | 5PXEBM48RTG2 |
| Product Type | Extended Battery Module (EBM) |
| Rack Size | 2U rack/tower convertible |
| Battery Type | Sealed lead-acid |
| Voltage | 48 V DC (external battery pack) |
| Mounting | 19″ rack with included 4-post rail kit or pedestal feet |
| Weight | ~61.3 lb (~27.8 kg) |
| Dimensions (HxWxD) | ~3.4″ × 17.2″ × 17.6″ (~86 × 437 × 447 mm) |
| Communications/Connectors | High-current DC battery connector cable included |
| Compatible UPS Models | 5PX1000RTG2, 5PX1000RTNG2, 5PX1500RTG2, 5PX1500RTNG2, 5PX1500HRTG2 |
| Certifications | cULus, CE, RoHS, BSMI compliance |
| Warranty | 3 yrs electronics & batteries with registration |
