Eaton 9PXEBM72RT - Extended Battery Module 72V

Overview

The Eaton 9PXEBM72RT is an extended battery module (EBM) designed to increase runtime for Eaton 9PX UPS systems in the 2000VA to 3000VA range. It is deployed by infrastructure engineers to extend backup duration during power outages without modifying the UPS load capacity. The module connects directly to the UPS battery interface, allowing systems to sustain operation longer during utility failures or generator transfer delays.

This unit provides a 72V DC battery system using sealed lead-acid (VRLA) batteries. It is engineered for compatibility with Eaton 9PX2000 and 9PX3000 series UPS models, enabling scalable runtime expansion. The module supports daisy-chaining of multiple EBMs×up to four units×allowing incremental increases in runtime depending on load requirements and deployment constraints.

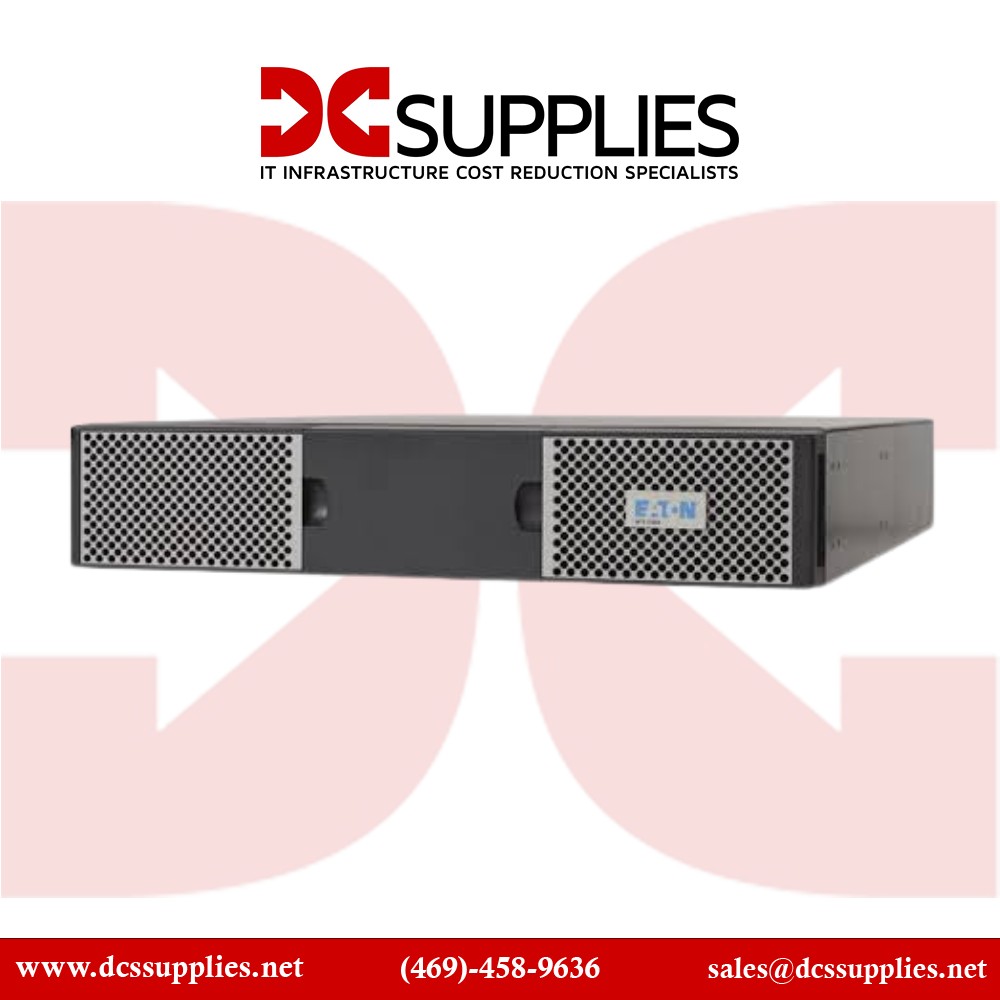

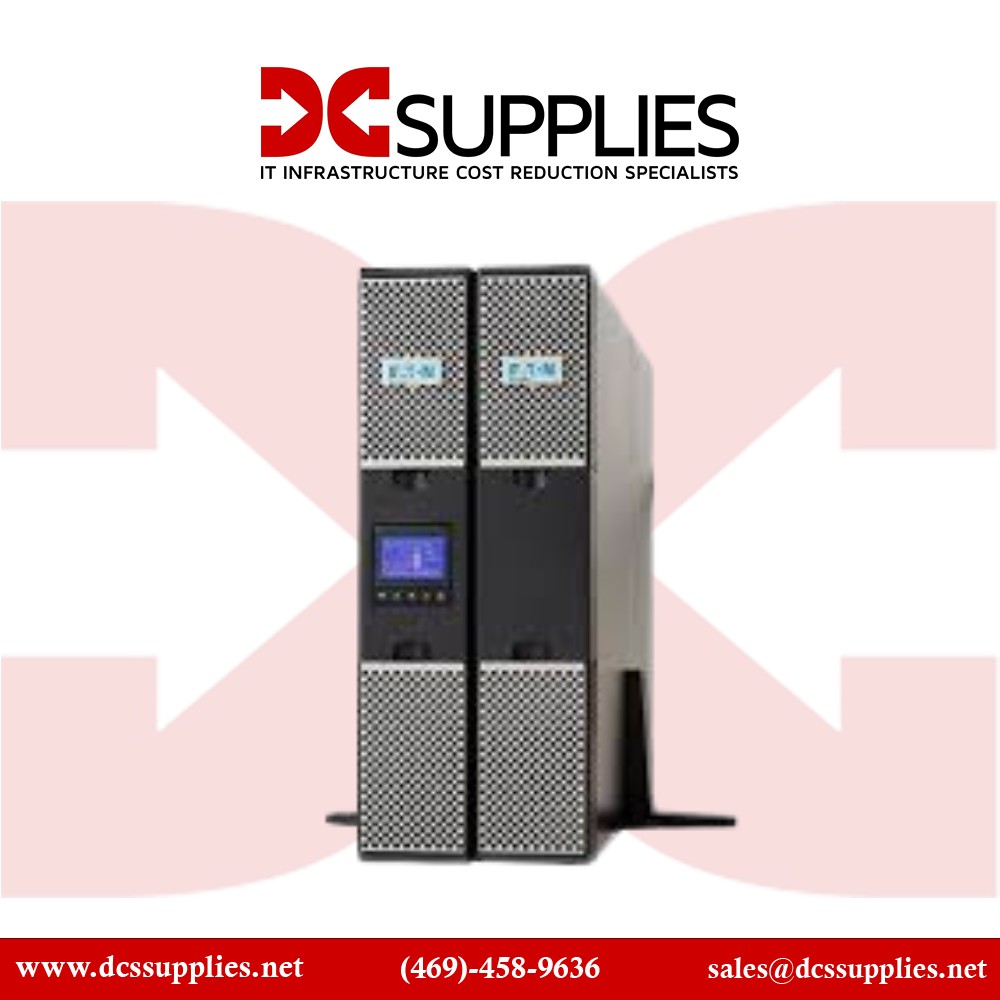

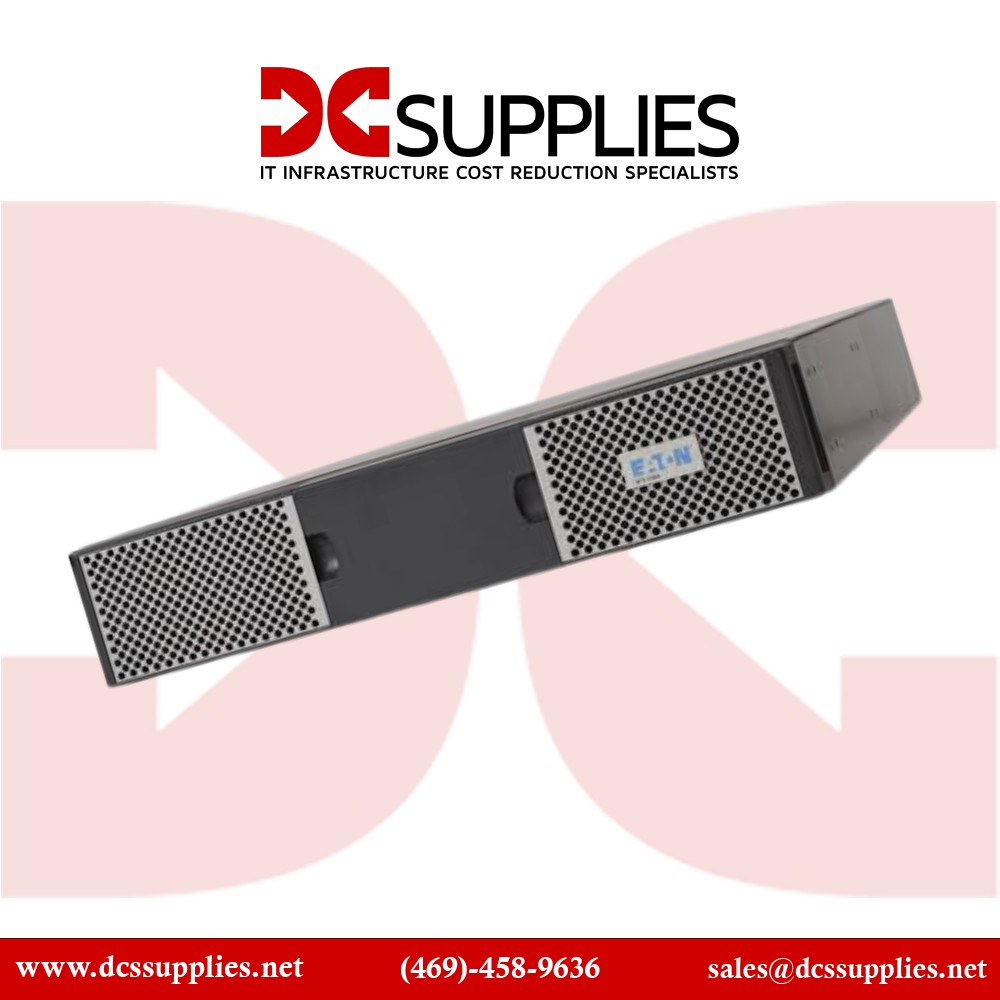

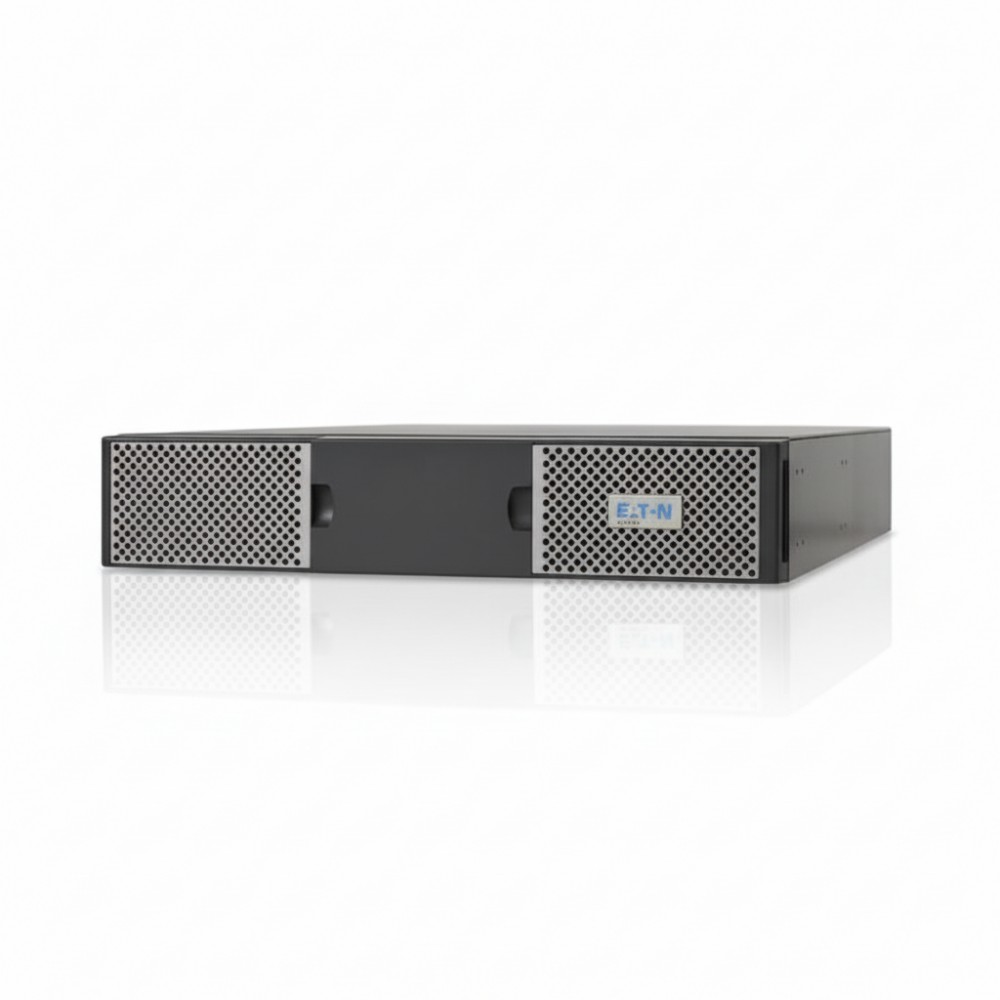

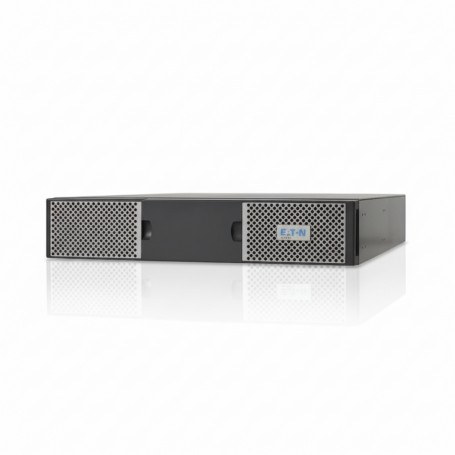

The 9PXEBM72RT is built in a 2U rack/tower convertible form factor and is designed for installation in standard 19-inch racks. It is typically deployed in data centers, enterprise server rooms, and network closets where extended runtime is required for controlled shutdown procedures or continued operation during prolonged outages. The module aligns physically and electrically with rack-based UPS infrastructure.

Integration is achieved through high-current DC connectors and pre-configured cabling, enabling direct connection to compatible UPS systems. The module operates within the Eaton 9PX battery management framework, including ABM charging technology, which optimizes battery charging cycles and extends service life. It supports hot-swappable battery operation, allowing maintenance without system downtime.

In a practical deployment, the 9PXEBM72RT is installed alongside a 9PX3000RT UPS supporting a rack of virtualization hosts and network switches. During a power outage, the additional battery capacity extends runtime from minutes to significantly longer durations, enabling safe shutdown sequences or sustained operation until backup generation becomes available.

This module is not suitable for use as a standalone power source and does not increase the VA or watt capacity of the UPS. It should not be used with unsupported UPS models or in environments where additional runtime is not required, as it only extends backup duration and not output capability.

Key Features

• 72V DC battery module for extended UPS runtime
• Supports up to four EBMs for scalable runtime expansion
• 2U rack/tower form factor for flexible installation
• Sealed lead-acid batteries for maintenance-free operation
• Hot-swappable battery design for uninterrupted service

Technical Specifications
