Detailed Specifications

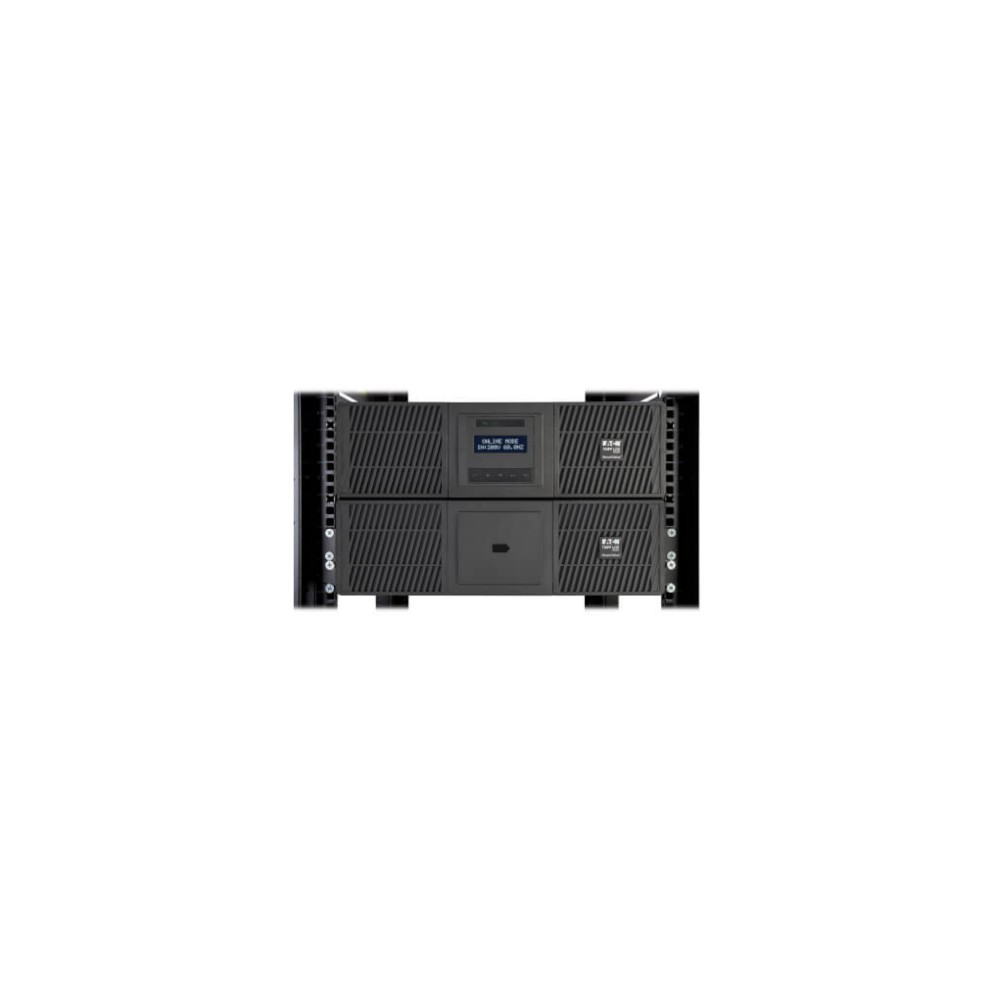

Eaton BP180RT3UTAA SmartOnline 180V Extended Battery Module EBM
Overview
The Eaton BP180RT3UTAA is a 3U rack/tower Extended Battery Module (EBM) designed for Eaton SmartOnline double-conversion UPS systems. It is used to increase runtime for mission-critical loads by adding external battery capacity to compatible 5-6 kVA UPS units.
This module is specifically paired with UPS systems such as the SU6000RT3UTAA, where it enables scalable runtime expansion through daisy-chaining additional battery packs.
It operates at a 180V DC battery bus architecture, using sealed VRLA battery strings to maintain stable energy delivery during extended outages. The system is engineered for data centers, telecom infrastructure, and high-availability server environments where runtime predictability is critical.
The enclosure is designed for 3U rack mounting or tower configuration, including hardware for both deployment styles. It is not a standalone UPS and cannot supply power without a compatible SmartOnline UPS system.
Key Features
- 180V DC extended battery module for SmartOnline UPS systems
- Compatible with SU6000RT3UTAA and related models
- Supports daisy-chaining for extended runtime scaling
- 3U rack or tower convertible installation format
- VRLA battery system optimized for enterprise continuity
Specifications
| Specification | Details |
|---|
| Brand | Eaton |
| Part Number | BP180RT3UTAA |
| Product Type | Extended Battery Module (EBM) |
| Compatible UPS | SU6000RT3UTAA |
| DC System Voltage | 180V |
| Battery Type | VRLA (sealed lead-acid) |
| Form Factor | 3U rack / tower |
| Rack Size | 3U |
| Weight | ~150 lb |
| Dimensions (D × W × H) | 25.4 × 17.3 × 5.1 in |
| Operating Temperature | 0-40°C |
| Expansion Capability | Supports multiple EBM chaining |
| Connection Type | High-current DC battery connectors |
| Application | Data center / enterprise UPS runtime extension |
