Detailed Specifications

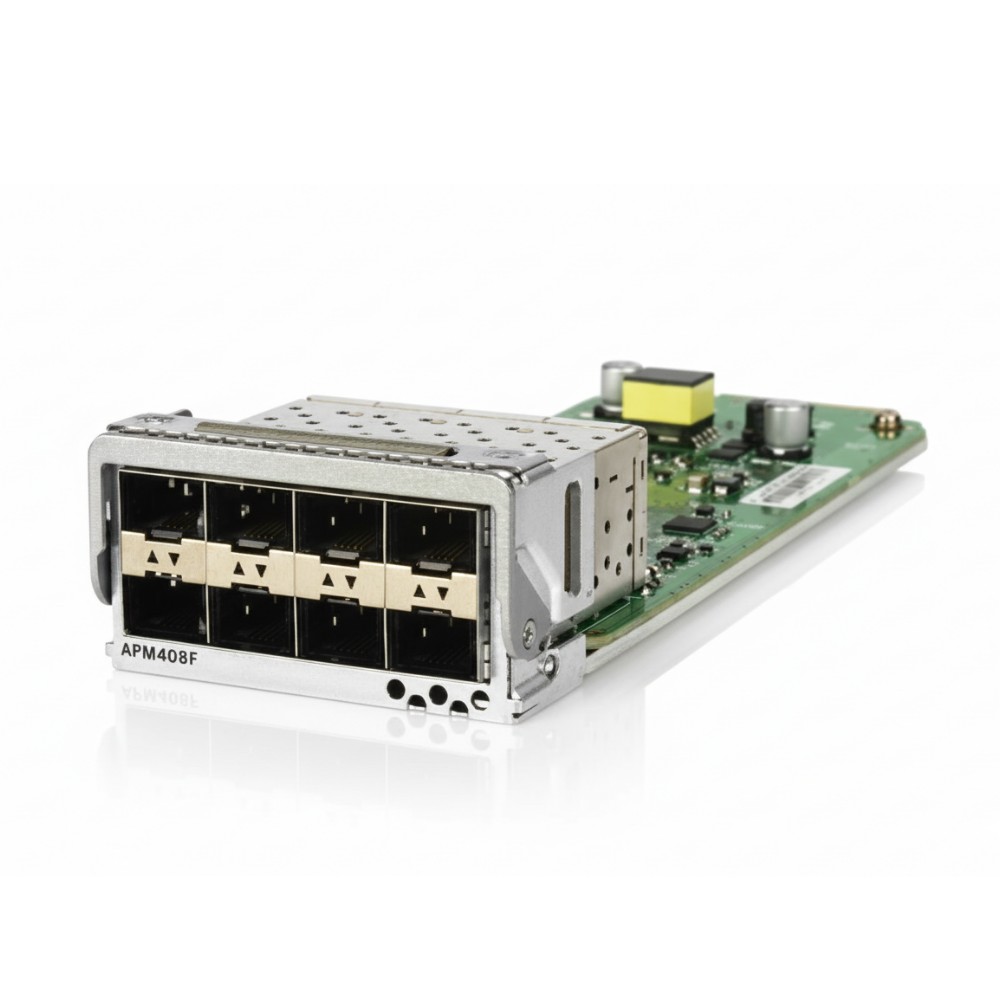

NETGEAR APM408F-10000S SFP+ Port Card Module
Overview :
The NETGEAR APM408F-10000S is an expansion module designed for the M4300 series switches, enabling fiber connectivity via SFP+ ports. It delivers eight 1G/10G BASE-X fiber uplinks or links, suitable for aggregation or uplink roles. The module fits into a front slot of a modular switch chassis such as the M4300-96X. It integrates into the M4300 management and stacking environment for unified control.
Key Features :
Eight SFP+ slots, supporting 1G and 10G fiber modules
Hot-swappable insertion into M4300 chassis
Compact form factor: 37 × 67 × 210 mm
Typical power draw ~23 W per module
Specifications :
| Parameter | Value |
|---|
| Brand | NETGEAR |
| Part Number | APM408F-10000S |
| Product Type | SFP+ fiber port card |
| Port Count | 8 SFP+ (1G/10G) |
| Supported Standards | IEEE 802.3ae (10GBASE-X), IEEE 802.3z (1GBASE-X) |
| Hot-swap Capability | Yes |
| Dimensions (H × W × D) | 37 mm × 67 mm × 210 mm |
| Module Weight | ~303 g |
| Operating Temperature | 0 to 50 °C |
| Storage Temperature | -20 to 70 °C |
| Humidity (Operating) | Up to 90 % relative humidity |
| Altitude (Operating) | Below 3,000 m |
| Power Consumption | ~23 W (per module) |
| Compatible Chassis | NETGEAR M4300 series modular switches |
