Detailed Specifications

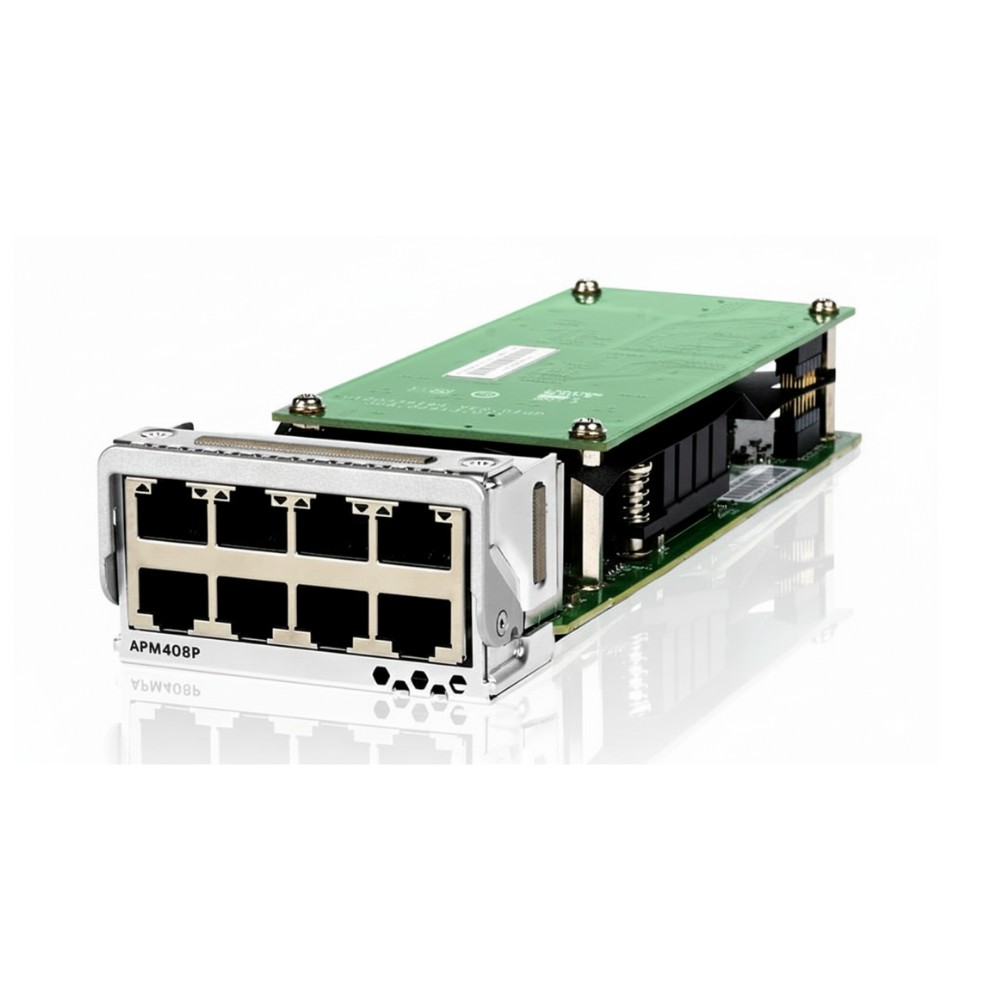

NETGEAR APM408P-10000S - 8-Port 10G PoE Port Card
Overview :
APM408P-10000S is an 8-port 10GBASE-T PoE+ port card for field engineers deploying the NETGEAR M4300-96X modular switch; it delivers multi-gig copper connectivity and PoE power for edge devices. The card provides auto-sensing 100M/1G/2.5G/5G/10G links on eight RJ-45 ports and implements IEEE 802.3at/af power protocols. Install it in M4300 chassis slots intended for PoE to supply powered devices at the network edge, AV-over-IP, or server uplinks. Managed and monitored via M4300 firmware (CLI/Web/SNMP) as part of the M4300 platform.
Key Features :
Eight 10GBASE-T multi-gig RJ-45 ports (100M-10G)
PoE+ (IEEE 802.3at/af) usable when in slots 1-6
Hot-swappable module for M4300-96X modular chassis
Module power draw 38W; fits Cat6/Cat6a for 10G links
Specifications :
| Field | Value |
|---|
| Brand | Netgear |
| Part Number | APM408P-10000S |
| Product Type | Expansion Module / Port Card |
| Number of Ports | 8 |
| Port Type / Connector | RJ-45, 1/2.5/5/10GBASE-T |
| Ethernet Speeds Supported | 100 Mb/s, 1 Gb/s, 2.5 Gb/s, 5 Gb/s, 10 Gb/s |
| PoE Standard | IEEE 802.3at (PoE+) |
| Max PoE Power per Port | 30 W |
| Card Power Consumption | ~38 W (no PoE load) |
| Hot-Swappable | Yes |
| PoE Slot Limitation | PoE available only when installed in chassis slots 1 through 6 |
| Management Interfaces | Inherit chassis management (CLI, SNMP, web GUI) |
| Weight | ~430 g |
