Detailed Specifications

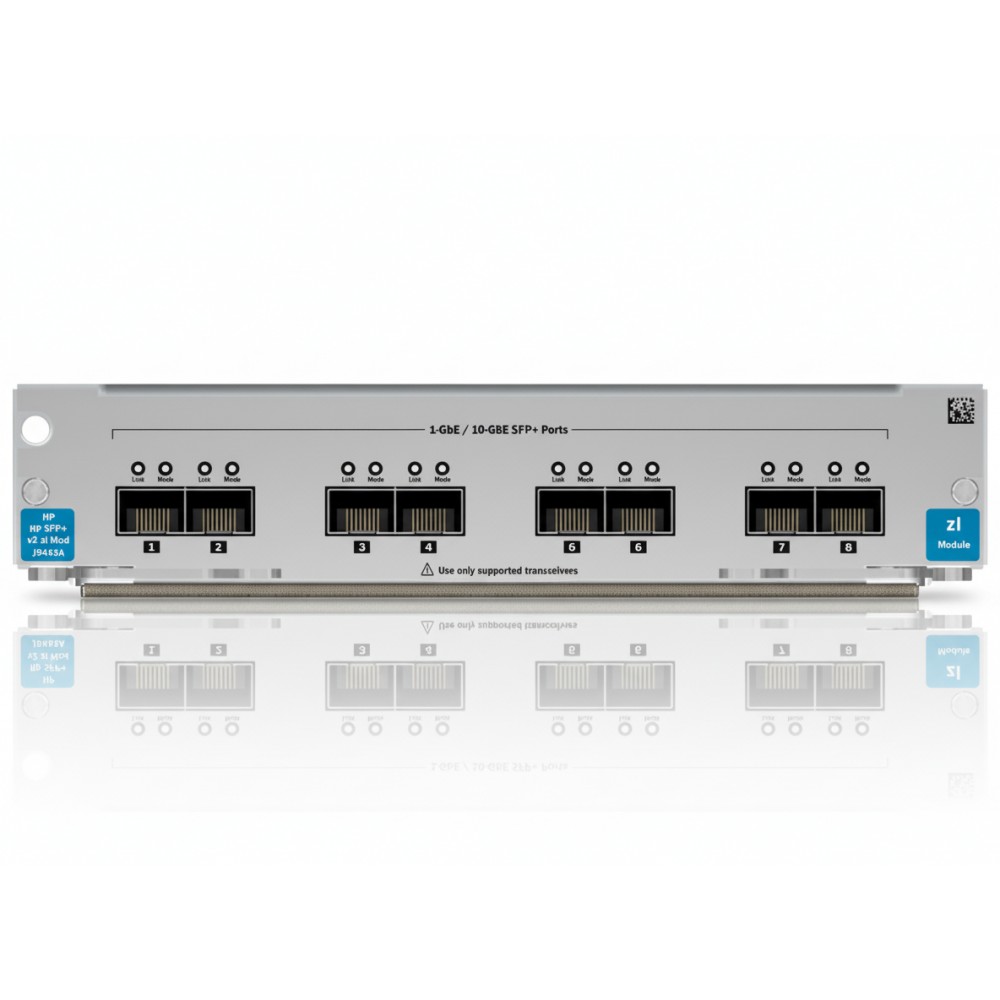

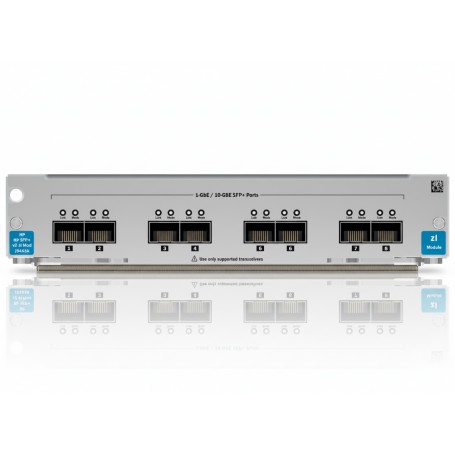

HP J9538A - 8-Port 10GbE SFP+ v2 zl Module
Overview :
The HP J9538A is a modular network switch line card designed for engineers who need to scale 10 Gigabit Ethernet connectivity in enterprise chassis systems. It delivers eight open SFP+ ports supporting 10 GbE links, enabling high-bandwidth aggregation, uplink, or data-centre fabric roles. This module is optimized for use in the HP/Aruba 5400 zl and 8200 zl series switches, fitting branch-office, campus core, or data-centre aggregation deployments. Because the module plugs into a chassis slot, it integrates with the existing management framework of the switch family and supports hot-swap replacement without impacting other modules.
Key Features :
Eight open 10 GbE SFP+ ports in a single module slot
Compatible with HP 5400 zl / 8200 zl series chassis switches
Module dimensions 10.3 × 8.13 × 1.75 in (fits standard module bay)
Operating temperature 0 °C to 40 °C when certain mini-GBICs installed
Weight approximately 2.1 lb (0.95 kg) for rack-mount module
Specifications :
| Specification | Value |
|---|
| Brand | HP |
| Part Number | J9538A |
| Product Type | 8-Port 10GbE SFP+ v2 zl Module |
| Network Ports | 8 × 10 GbE SFP+ ports |
| Compatible Platforms | HP 5400 zl / 8200 zl series switches |
| Operational Temperature | 0 °C to 40 °C when mini-GBIC "B" or later used (32 °F to 104 °F) |
| Non-operational Temperature | -40 °C to 70 °C (-40 °F to 158 °F) |
| Relative Humidity | 15% to 95% non-condensing (storage) |
| Dimensions (H×W×D) | 1.75 in × 8.13 in × 10.3 in |
| Weight | 2.09-2.1 lb (0.95 kg) |
| Module Slot Type | zl modular switch slot installation |
| Power/Heat Dissipation | As per chassis specifications (module only) |
| Supported Transceivers | 10 GbE SFP+ LR/SR (see HP transceiver list) |
| Chassis Ambient Impact | When mini-GBICs used, chassis ambient temp limit = 32 °F to 104 °F (0 °C to 40 °C) |
| Release Status | Retired/End-of-Life from HP technical documentation |
