Detailed Specifications

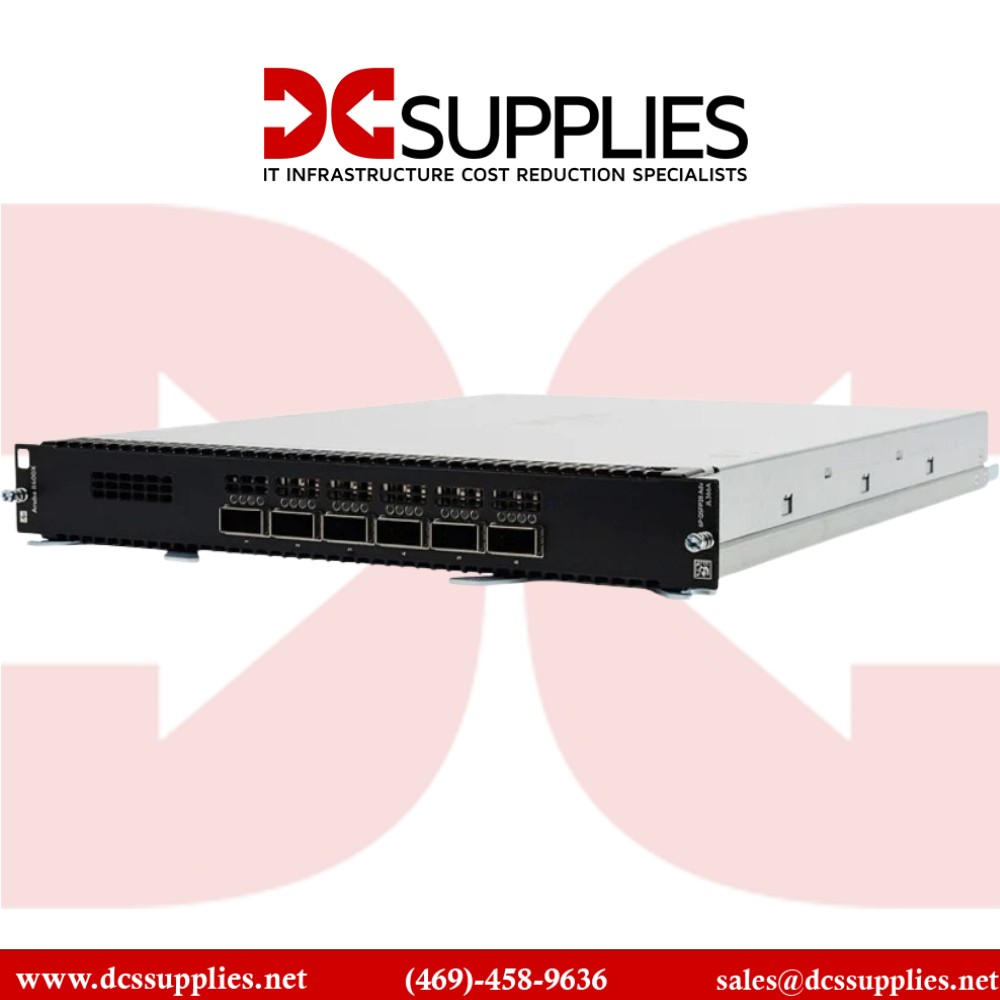

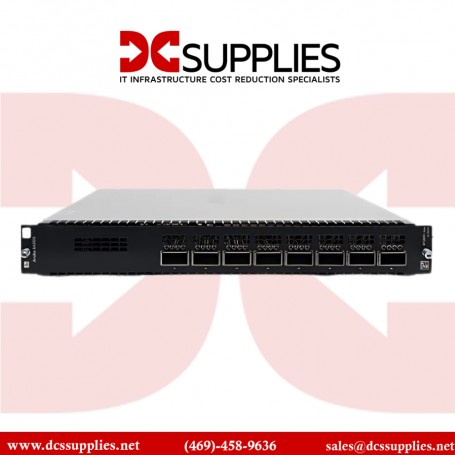

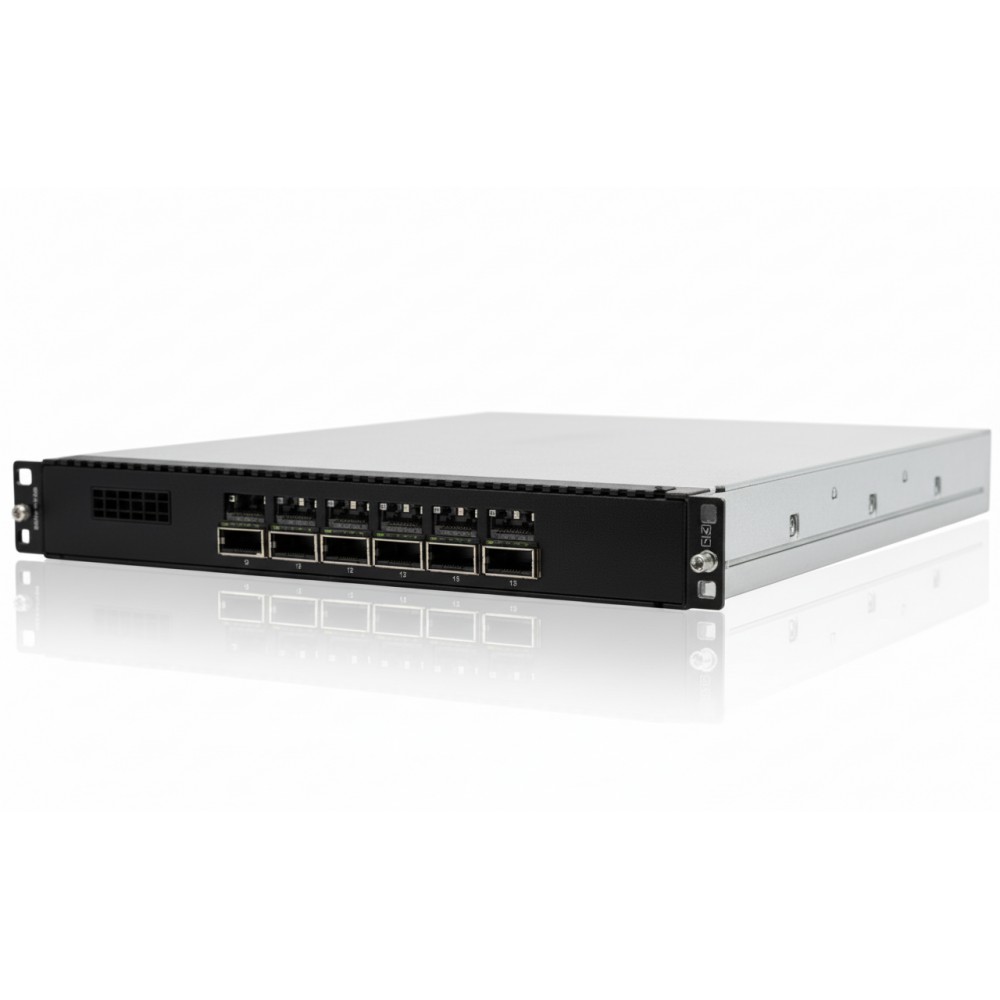

HPE JL367A Aruba CX 8400X 7.2 Tbps Fabric Module
Overview
The HPE JL367A is a high-capacity fabric module intended for the Aruba CX 8400X series modular chassis, used by network engineers who need to deliver non-blocking backbone throughput and flexible slot architecture in campus core or data-centre aggregation layers. It enables chassis scalability and supports full line-rate routing, high-density I/O connectivity (including 10 GbE, 40 GbE and 100 GbE configurations), and advanced features via the AOS-CX operating system. This module installs into the fabric plane of the chassis and communicates across multiple I/O modules, making it suitable for high-availability enterprise deployments, clustered fabrics and resilient core infrastructures. It integrates with the modular architecture of the switch series to enable future growth and automated management across large-scale networks.
Key Features
Provides 7.2 Tbps switching fabric capacity for the Aruba CX 8400X chassis.
Supports high-density I/O modules with 10/25/40/100 GbE connectivity.
Enables non-blocking architecture across multiple I/O slots in the chassis.
Compatible with AOS-CX OS for automation, telemetry and advanced routing.
Suitable for enterprise core, data-centre aggregation and large-campus backbones.
Technical Specifications
| Specification | Value |
|---|
| Brand | HPE |
| Part Number | JL367A |
| Product Type | Switch Fabric Module |
| Switching Capacity | 7.2 Tbps |
| Compatible Chassis | Aruba CX 8400X series |
| Slot Architecture | Fabric module slot for modular chassis |
| Supported I/O Module Types | 10 GbE / 25 GbE / 40 GbE / 100 GbE options |
| Operation System Supported | AOS-CX |
| Weight (approximate) | ~11.45 lbs |
| Form Factor (Height × Width × Depth) | ~1.7 in × 17.4 in × 16.9 in |
| Maximum Power Consumption | ~2,750 W (max configuration) |
| Input Voltage | 90-140 V / 180-264 V AC |
| Operating Temperature | 0 °C to 40 °C |
| MAC Address Table Size | Up to chassis-capacity |
| Routing Protocols Supported | BGP, OSPF, EVPN, IPv6 VRF |
| High-Availability Support | Redundant fabric modules, non-blocking chassis |
